LH Cooling Fan Motor C1020 (Vehicles equipped with trailer tow package)
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

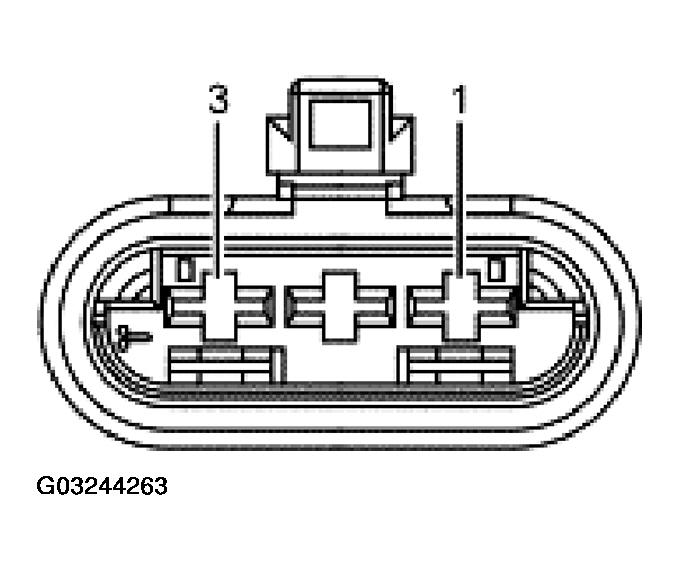

Fig 1: Identifying LH Cooling Fan Motor C1020 Terminals (Vehicles Equipped With Trailer Tow Package)
LH COOLING FAN MOTOR C1020 - CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 2 | CKT 462 (VT) cooling fan motor ground | 0 ohms to chassis ground when cooling fan is commanded high. |
| 1 | CKT 1824 (LG/VT) cooling fan relay to fan motor | Greater than 10 volts when cooling fan command on. |
