Item 11: Engine Front Cover Stud Bolt Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the catalyst monitor sensor electrical connector.

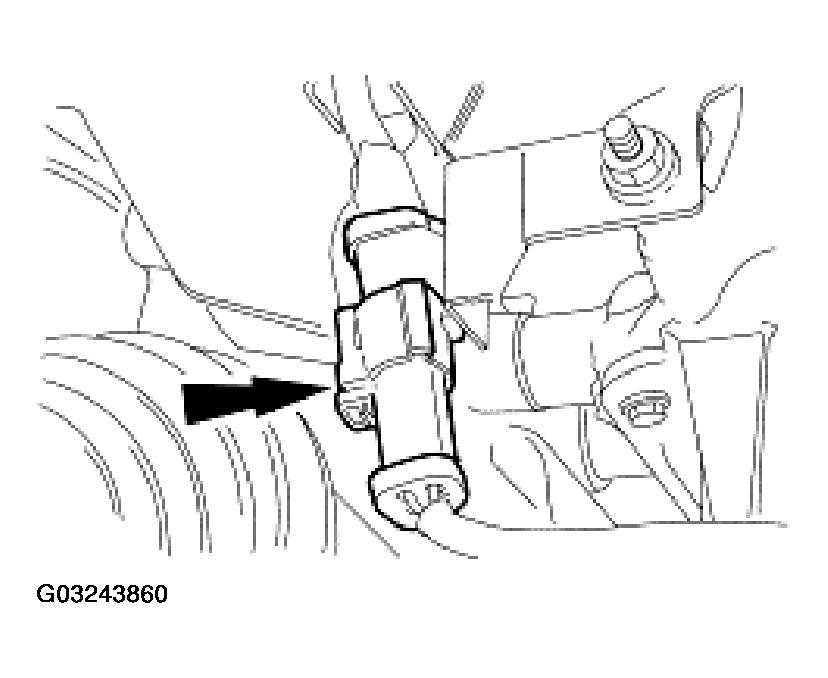

    Fig 1: Disconnecting Catalyst Monitor Sensor Electrical Connector
    G03243860Courtesy of FORD MOTOR CO.
  2. Remove the catalyst monitor sensor electrical connector mounting bracket.

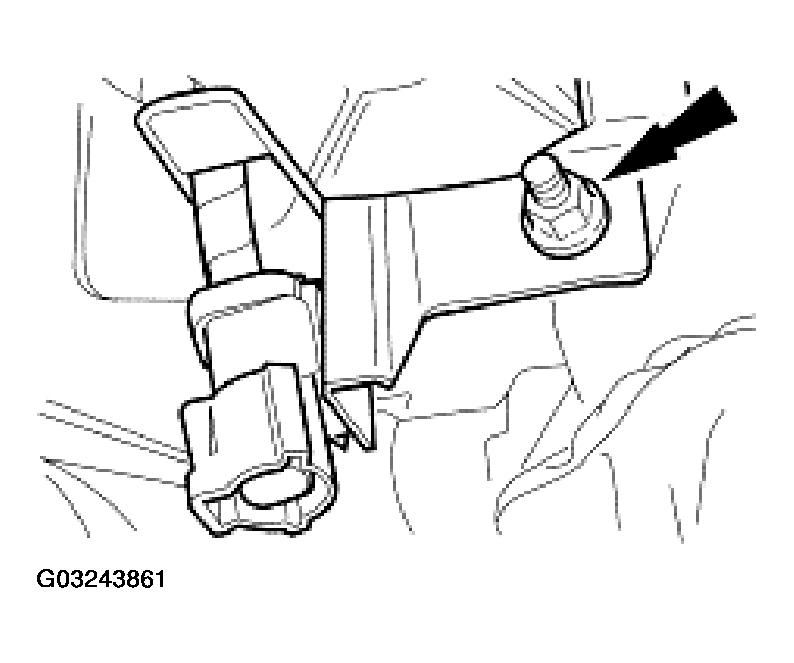

Fig 2: Removing Catalyst Monitor Sensor Electrical Connector Mounting Bracket
G03243861Courtesy of FORD MOTOR CO.
