Item 9: Rear Parking Brake Cable And Conduit RH/LH Removal Note

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Spring tabs on the cable end secure the cable to the body.

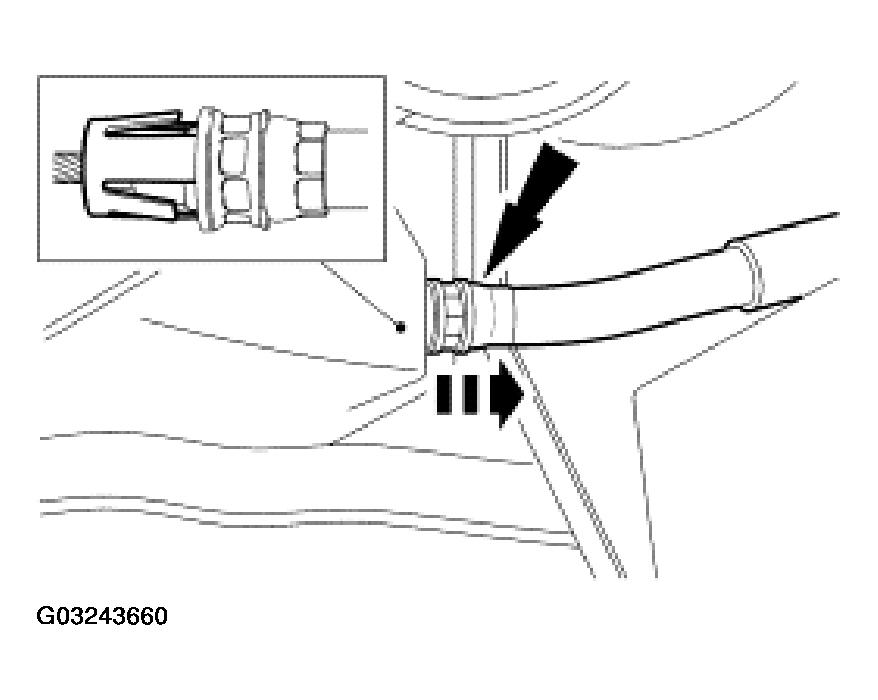

Fig 1: Removing Rear Cable

Courtesy of FORD MOTOR CO.

Remove the rear cable and conduit from the body.
Remove the parking brake cable end from the parking brake lever arm.

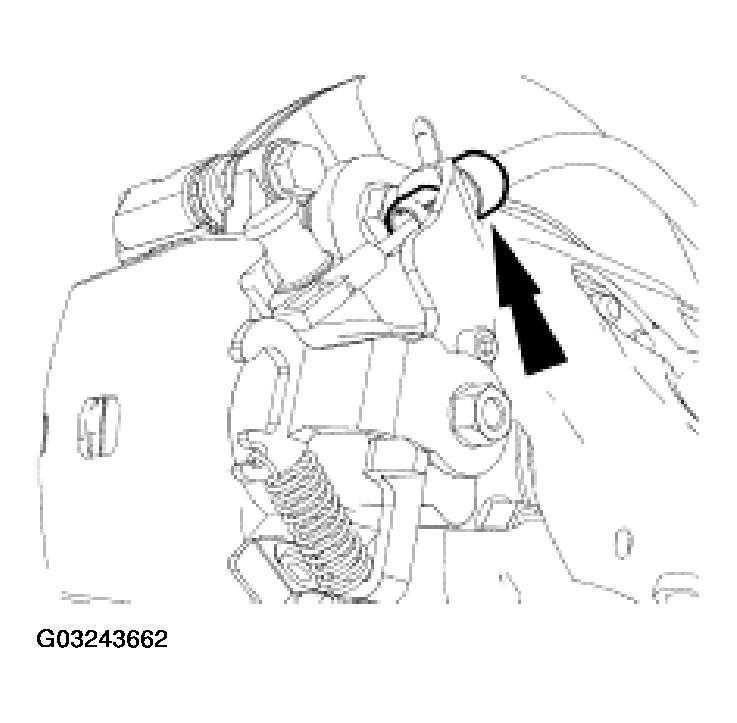

Fig 2: Removing Parking Brake Cable End From Parking Brake Lever Arm
Courtesy of FORD MOTOR CO.
Disconnect the parking brake cable and conduit from the brake caliper.

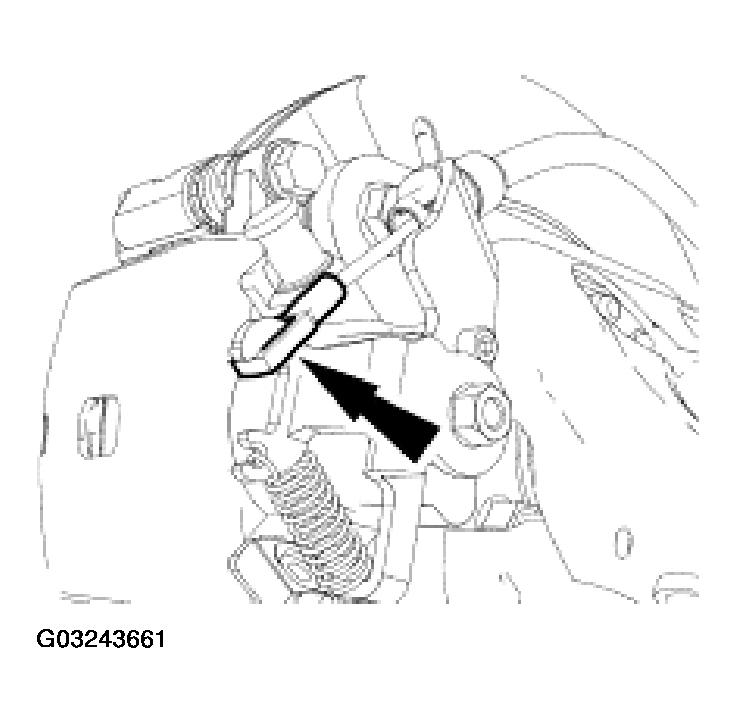

Fig 3: Disconnecting Parking Brake Cable And Conduit From Brake Caliper
Courtesy of FORD MOTOR CO.
