Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Mercury Villager. However, it is still accessible from the selected car via links, so may be relevant.

For diagnostic procedure, see Fig 1-Fig 5 .

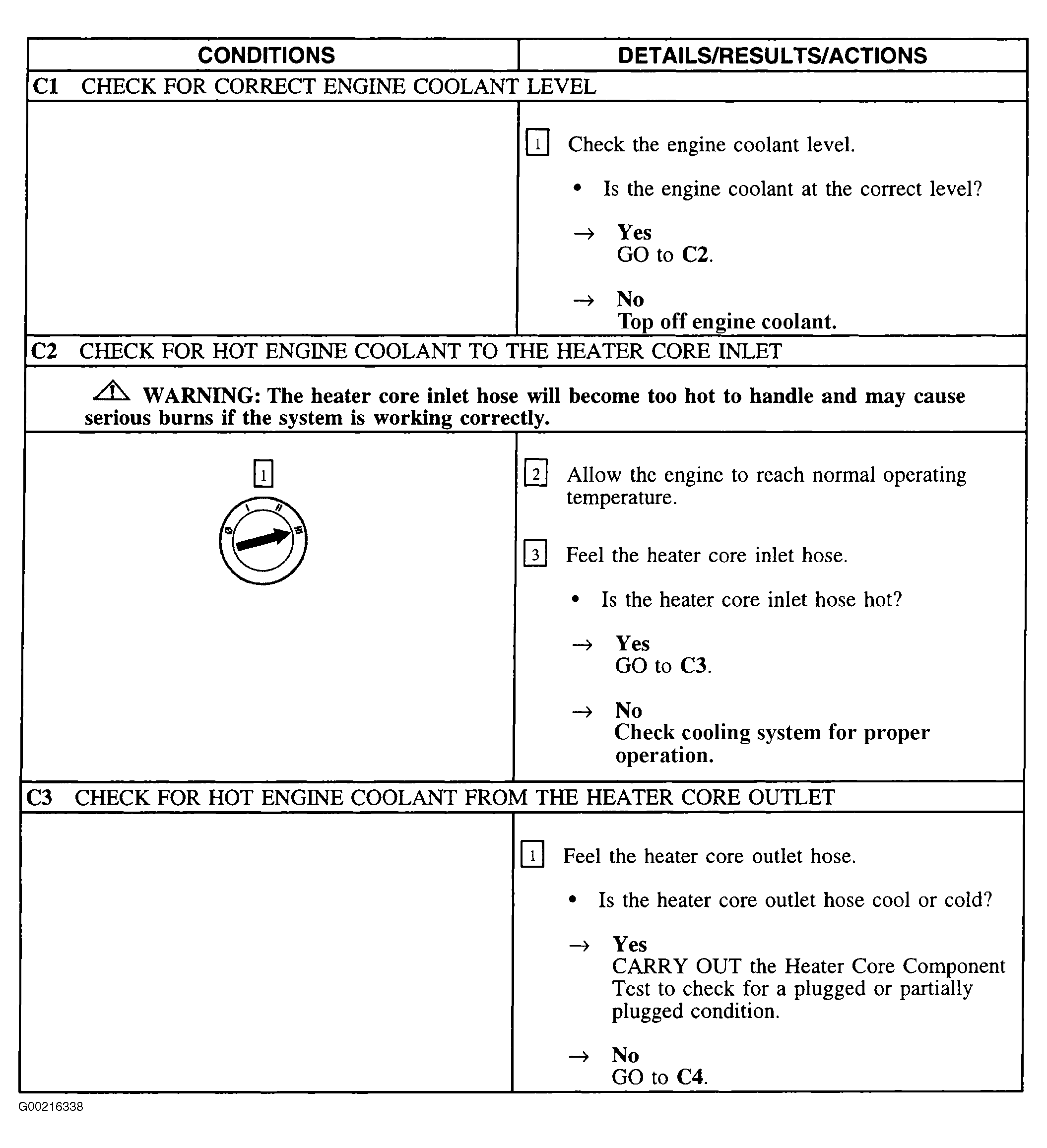

Fig 1: Test C (Steps C1-C3)

Courtesy of FORD MOTOR CO.

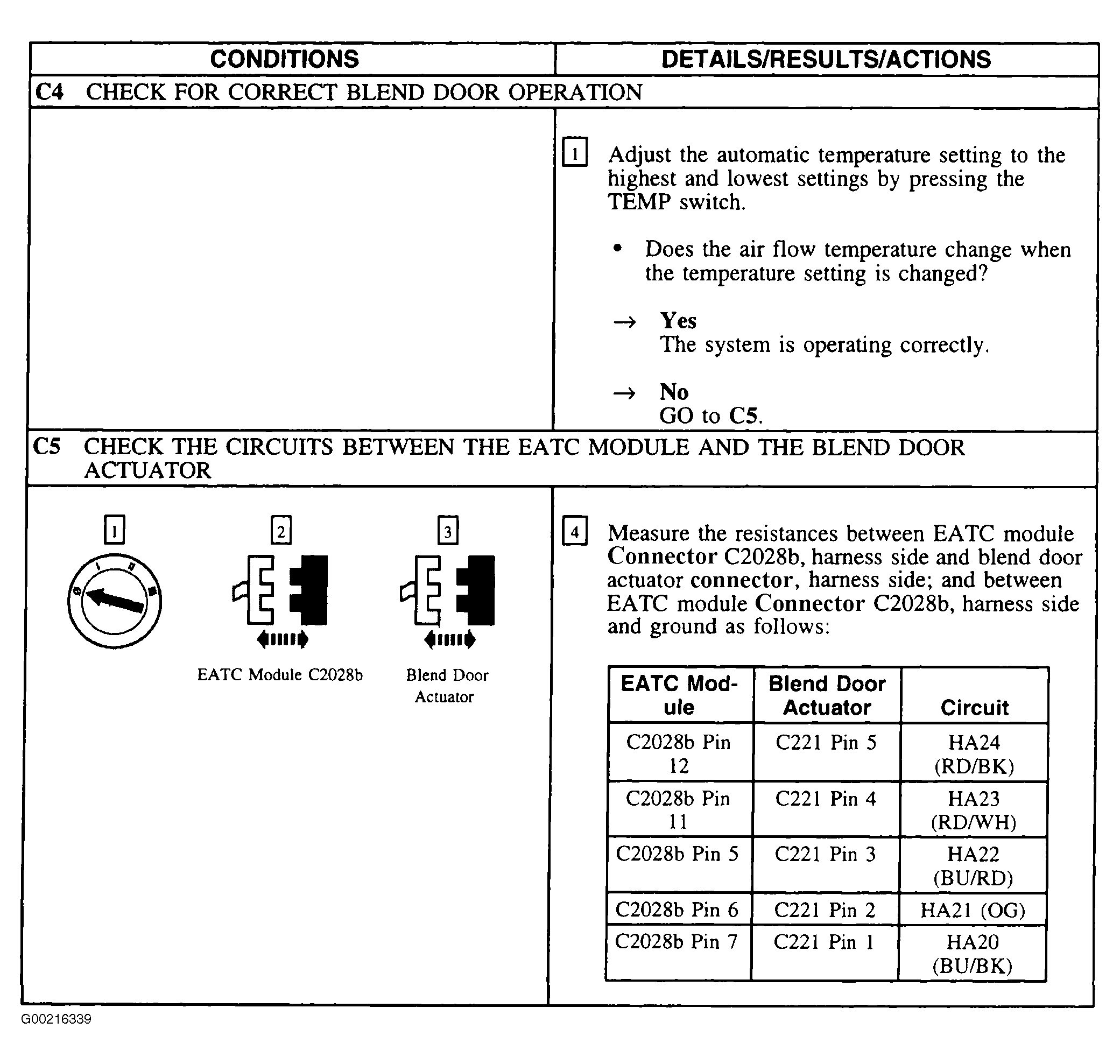

Fig 2: Test C (Steps C4-C5)

Courtesy of FORD MOTOR CO.

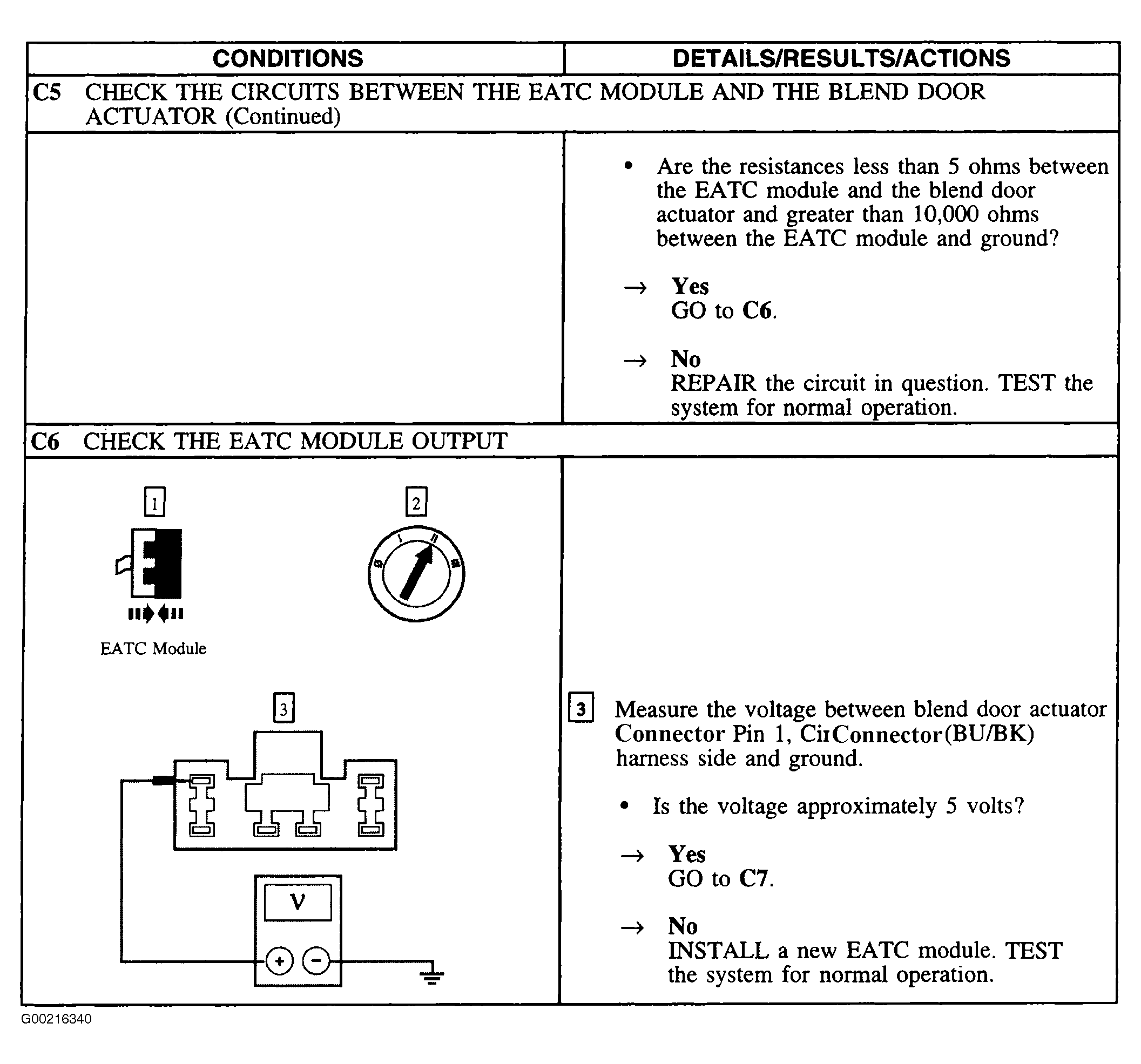

Fig 3: Test C (Steps C5 Cont.-C6)

Courtesy of FORD MOTOR CO.

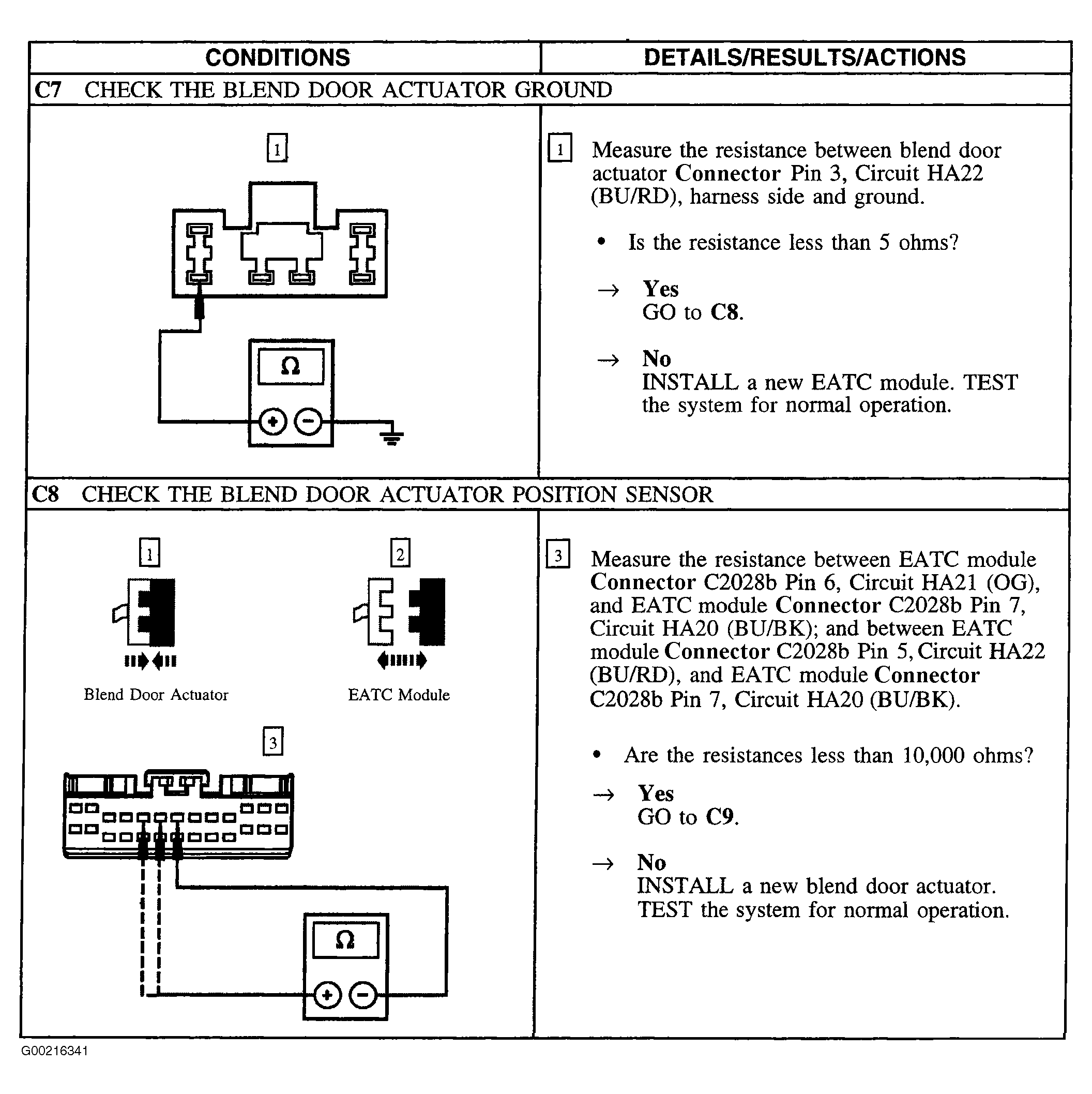

Fig 4: Test C (Steps C7-C8)

Courtesy of FORD MOTOR CO.

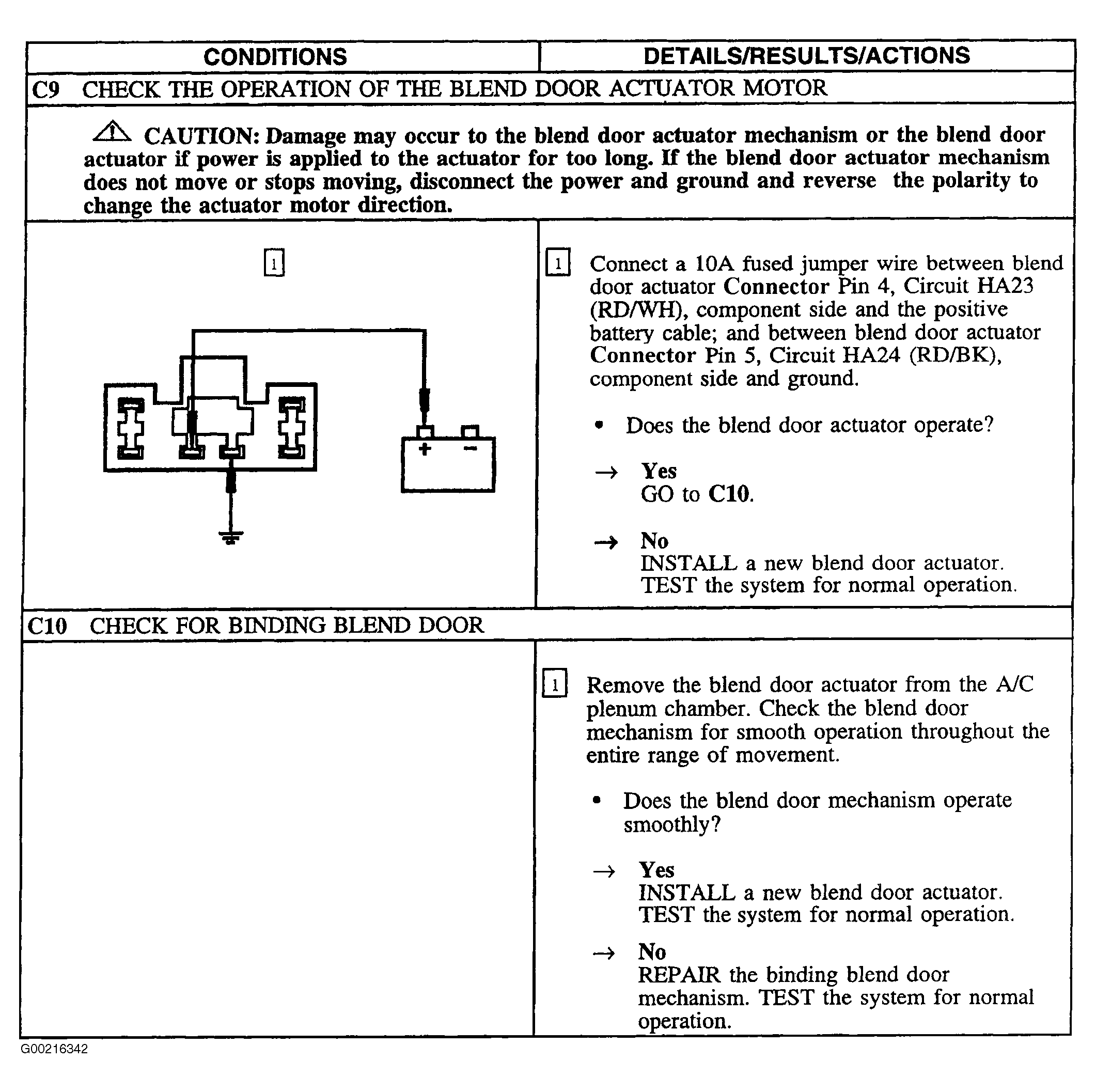

Fig 5: Test C (Steps C9-C10)

Courtesy of FORD MOTOR CO.
