Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Regular cab shown, SuperCab similar.

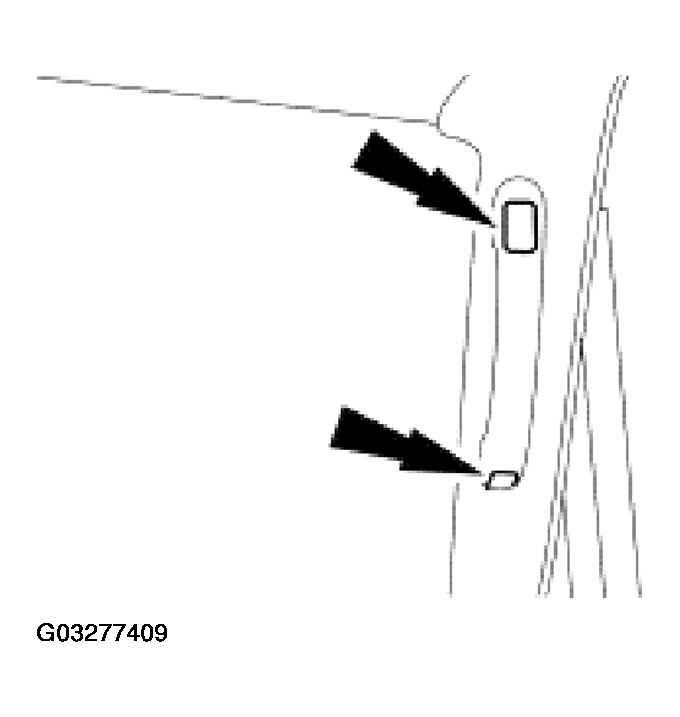

If equipped, remove the windshield side garnish moulding passenger and driver assist handle bolt covers.

Fig 1: Removing Windshield Side Garnish Moulding Assist Handle Bolt Covers
Courtesy of FORD MOTOR CO.

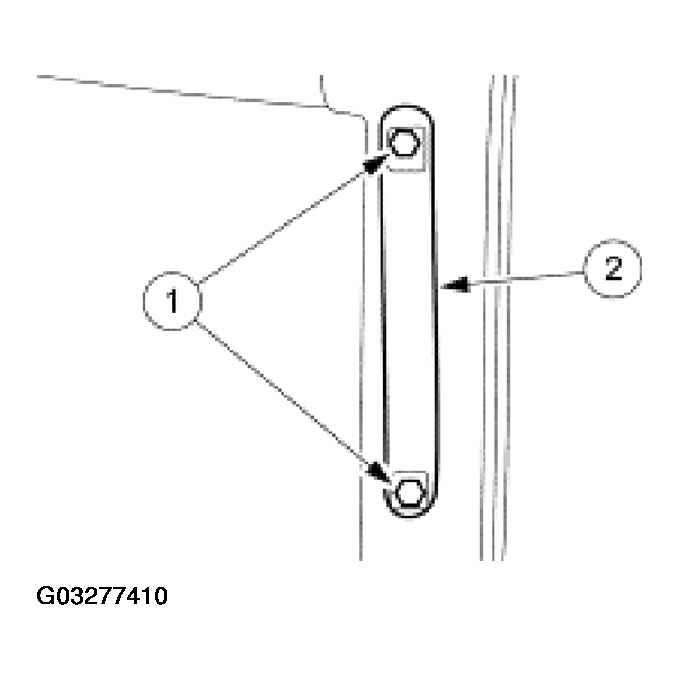

If equipped, remove the windshield side garnish moulding passenger and driver assist handles.
1. Remove the bolts.
2. Remove the passenger and driver assist handles.

  Fig 2: Removing Windshield Side Garnish Moulding Assist Handles
  Courtesy of FORD MOTOR CO.

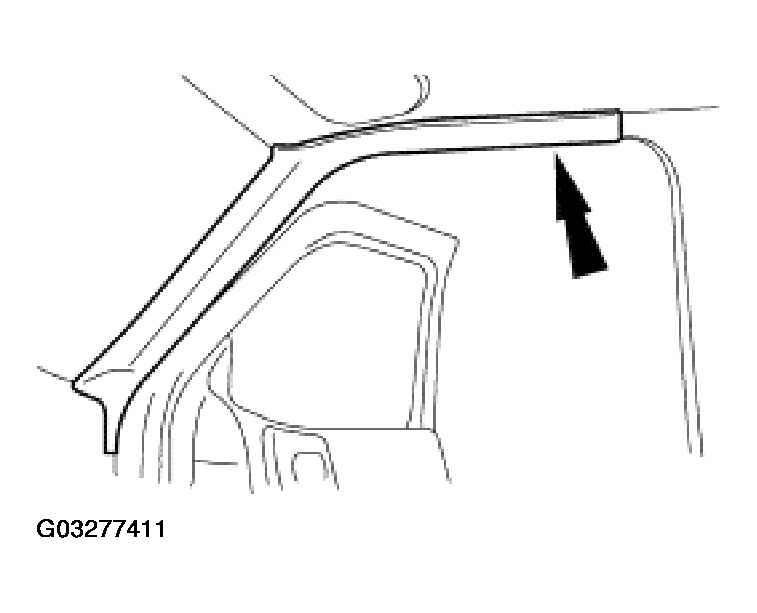

Remove the windshield side garnish mouldings.

Fig 3: Removing Windshield Side Garnish Mouldings
Courtesy of FORD MOTOR CO.

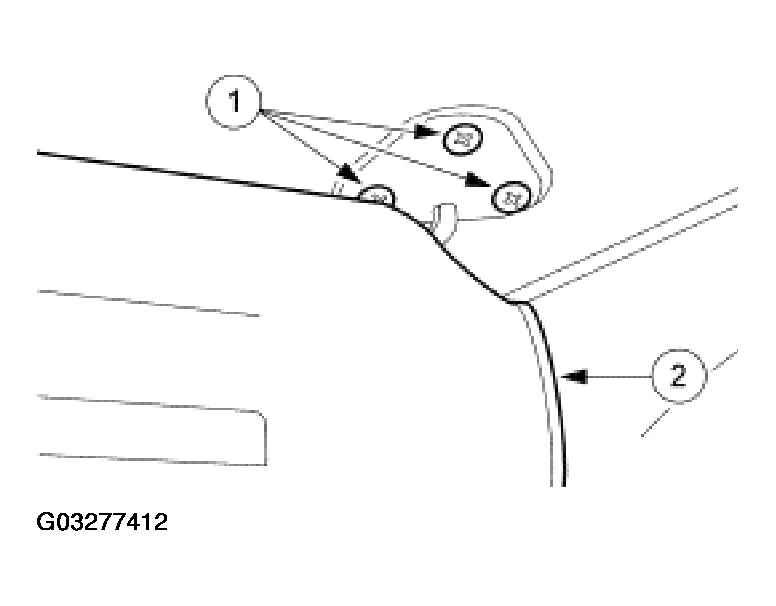

Remove the sun visors.
1. Remove the six screws.
2. Remove the sun visors.

  Fig 4: Removing Sun Visors
  Courtesy of FORD MOTOR CO.

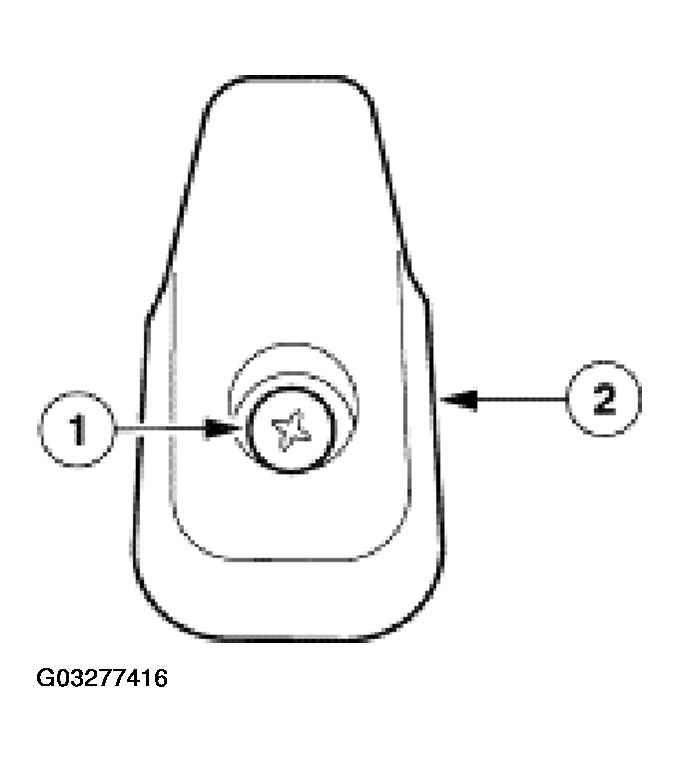

Remove the sun visor brackets.
1. Remove the screws (one each side).
2. Remove the sun visor brackets.

  Fig 5: Removing Sun Visor Brackets
  Courtesy of FORD MOTOR CO.
Remove the dome lamp lens.

Fig 6: Removing Dome Lamp Lens
Courtesy of FORD MOTOR CO.

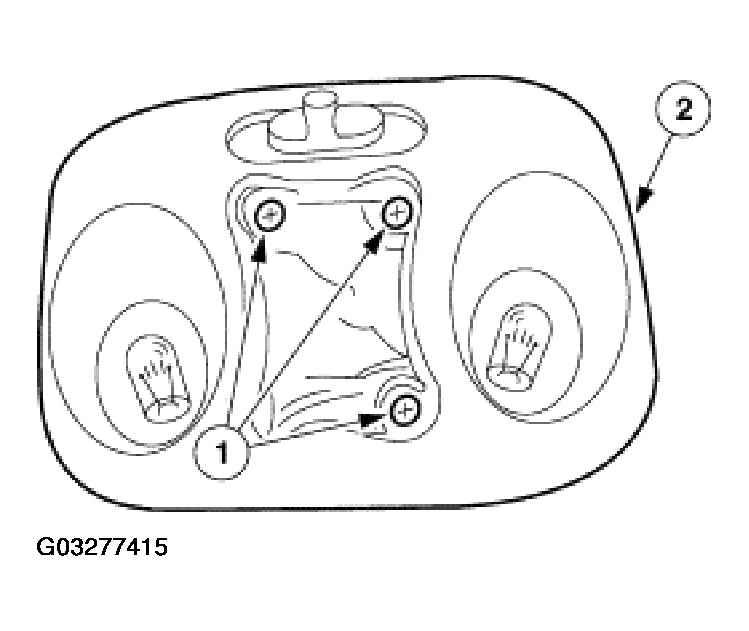

Remove the dome lamp.
1. Remove the screws.
2. Remove the dome lamp.

  Fig 7: Removing Dome Lamp
  Courtesy of FORD MOTOR CO.

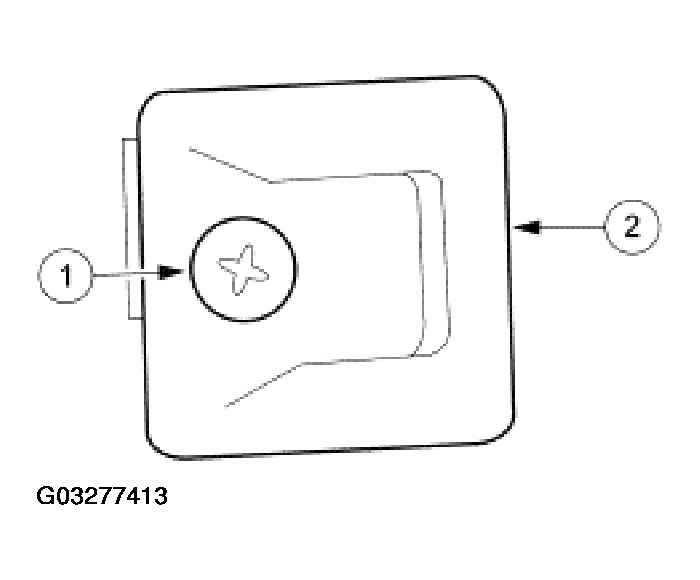

Remove the coat hook.
1. Remove the screw.
2. Remove the coat hook.

  Fig 8: Removing Coat Hook
  Courtesy of FORD MOTOR CO.
Remove the quarter trim panels. For additional information, refer to TRIM PANEL - QUARTER, REGULAR CAB or TRIM PANEL - QUARTER, SUPERCAB WITH CENTER-FACING REAR SEAT or TRIM PANEL-QUARTER, SUPERCAB WITHOUT CENTER-FACING REAR SEAT .
Remove the headliner.
To install, reverse the removal procedure.
