Removal and Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. When installing a new bulb you must remove the headlamp assembly. Refer to HEADLAMP ASSEMBLY .
  2. Remove the bolts and the side turn signal lamp assembly.

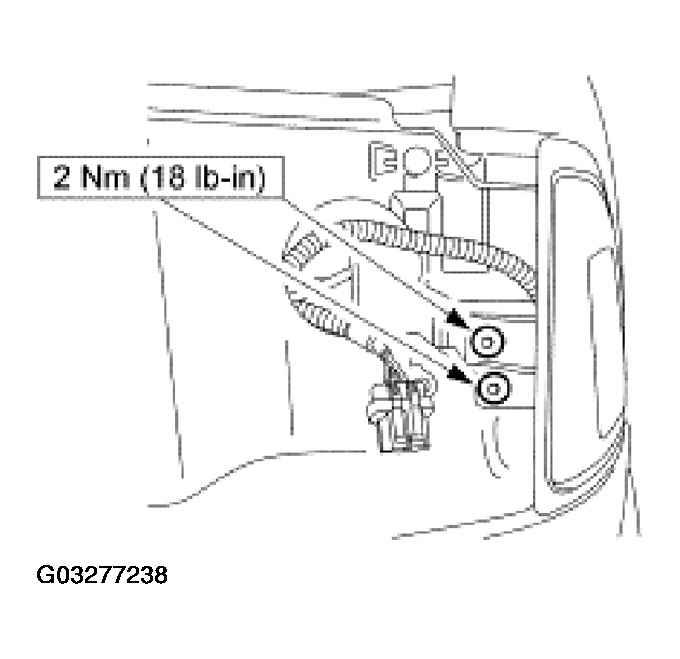

    Fig 1: Removing Side Turn Signal Lamp Assembly
    G03277238Courtesy of FORD MOTOR CO.
  3. Rotate the side turn signal lamp bulb socket one-eighth of a turn, and pull the bulb socket from the side turn signal lamp assembly.

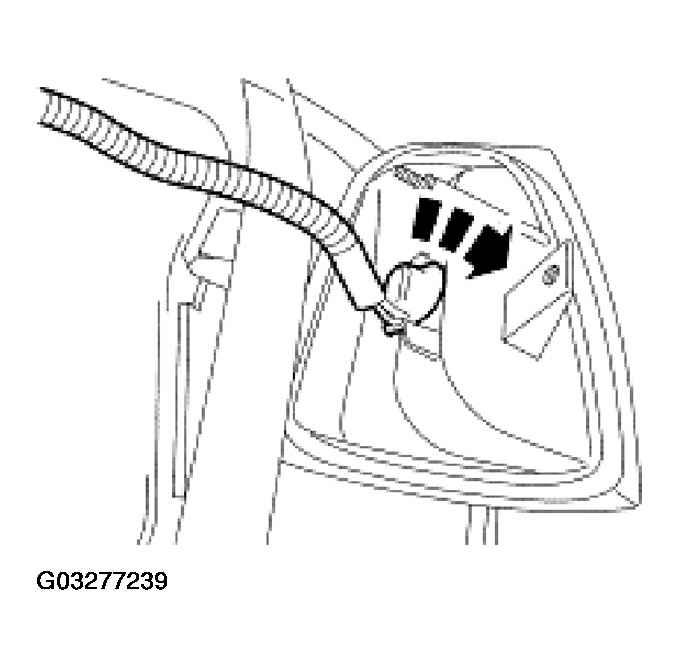

    Fig 2: Removing Side Turn Signal Lamp Bulb Socket
    G03277239Courtesy of FORD MOTOR CO.
  4. To install reverse the removal procedure.
