Crankshaft Front Oil Seal: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY - EARLY BUILD  or CRANKSHAFT PULLEY - LATE BUILD .
  2. Using the special tool, remove the crankshaft front oil seal.

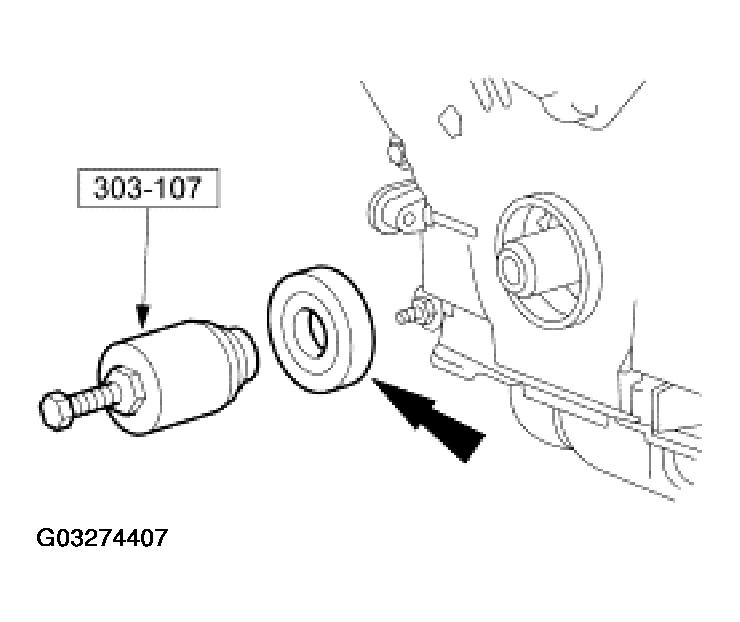

    Fig 1: Removing Crankshaft Front Oil Seal
    G03274407Courtesy of FORD MOTOR CO.
