In-Vehicle Repair: Camshaft: Removal

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the radiator assembly. For additional information, refer to ENGINE COOLING .
  2. Remove the hydraulic lash adjusters. For additional information, refer to HYDRAULIC LASH ADJUSTERS .
  3. Remove the timing chain. For additional information, refer to TIMING CHAIN .
  4. Remove the camshaft synchronizer assembly. For additional information, refer to ELECTRONIC ENGINE CONTROLS .
  5. Remove the bolts and the camshaft thrust plate.

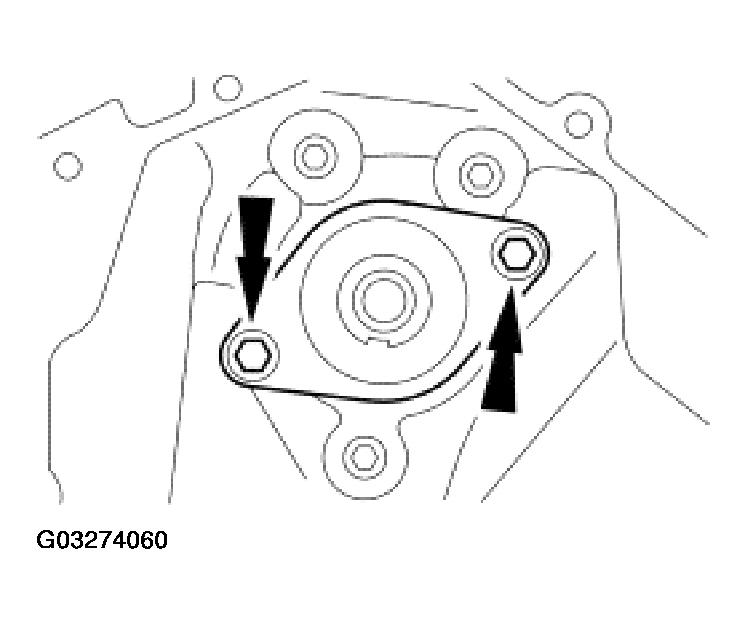

    Fig 1: Removing Bolts And Camshaft Thrust Plate
    G03274060Courtesy of FORD MOTOR CO.
    6. CAUTION: Damage to the camshaft and/or the camshaft bearings can occur if the camshaft is allowed to drop on the bearing surface or cylinder block.

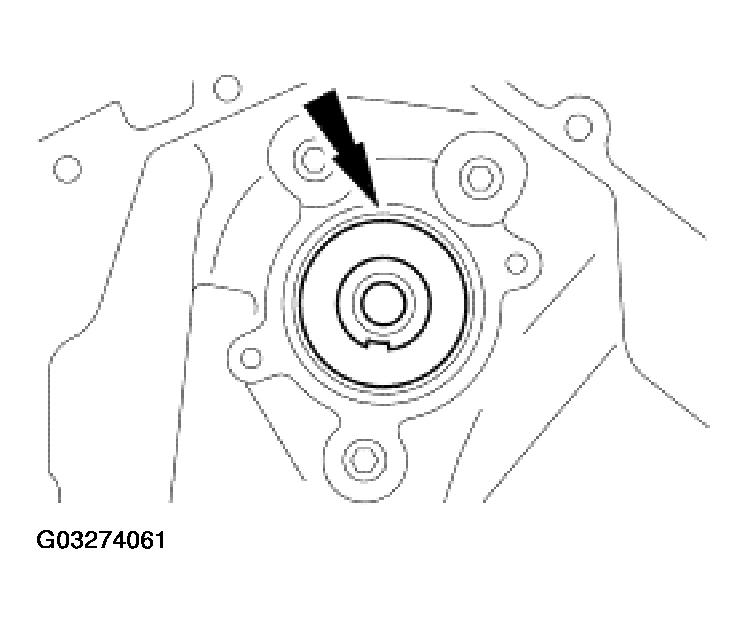

    Fig 2: Removing Camshaft
    G03274061Courtesy of FORD MOTOR CO.
  6. Remove the camshaft.
