Checking Differential Ring Gear Backlash

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential housing cover.
  2. Using a suitable dial indicator and the special tool, measure and record the differential ring gear backlash in 4 opposing points on the ring gear.

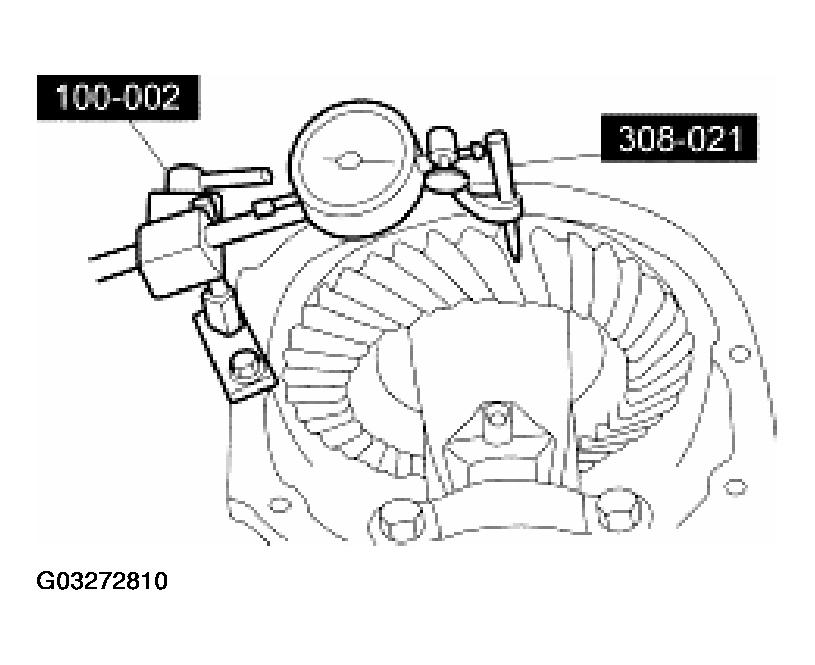

    Fig 1: Measuring Differential Ring Gear Backlash
    G03272810Courtesy of FORD MOTOR CO.
