Differential Bearings: Installation

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Press the left and right differential bearing on the differential assembly.
    1. Position the differential bearings.
    2. Using the special tool, press the differential bearings on the differential assembly.

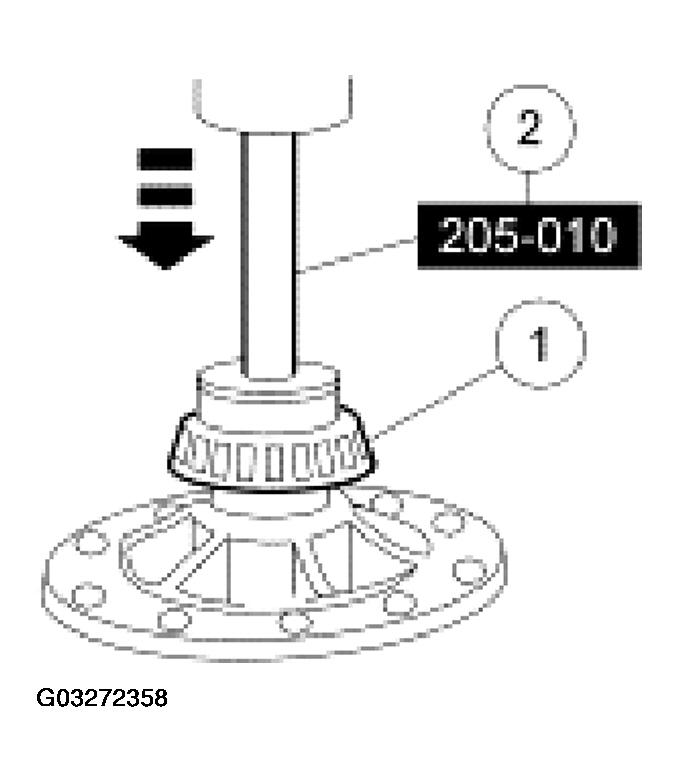

      Fig 1: Installing Differential Bearings
      G03272358Courtesy of FORD MOTOR CO.
  2. Position the special tool and the inner and outer bearing cups in their respective bores.
    1. After placing the inner and outer bearing cups in their respective bores, place the special tool of the inner bearing cup.
    2. Place the special tool on the outer bearing cup.
    3. Install the special tool.

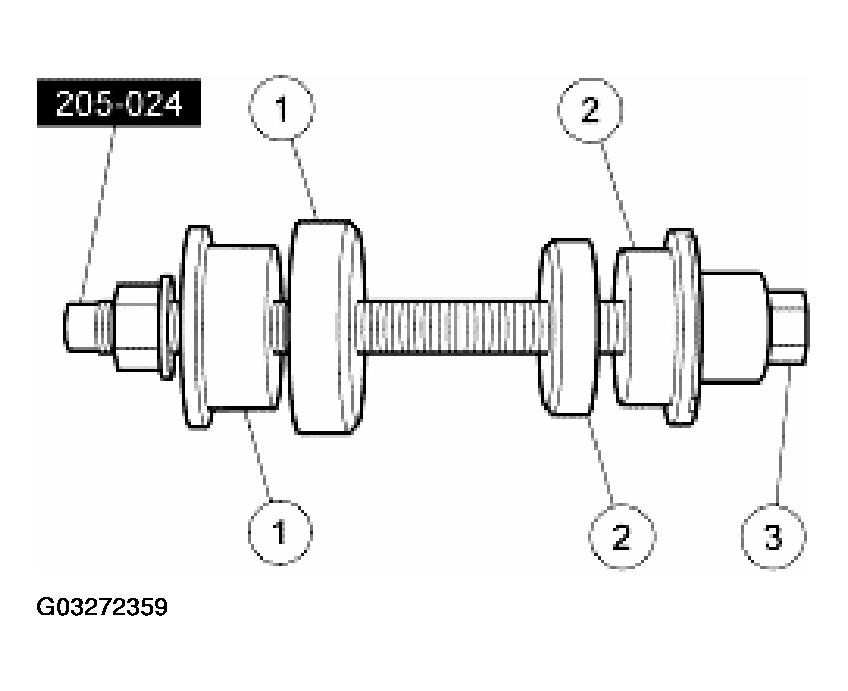

      Fig 2: Installing Special Tool
      G03272359Courtesy of FORD MOTOR CO.
  3. Tighten the special tool to seat the pinion bearing cups in their bores.

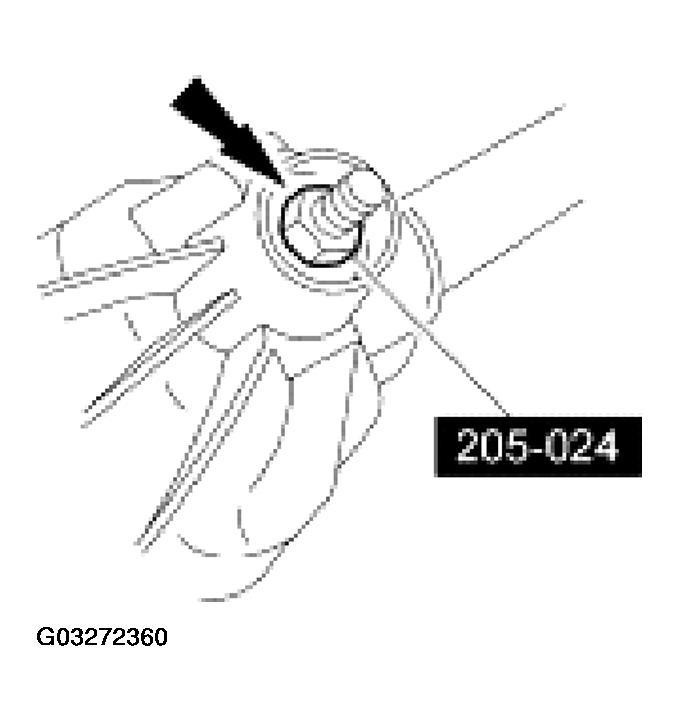

    Fig 3: Tightening Special Tool
    G03272360Courtesy of FORD MOTOR CO.
    4. NOTE: If a feeler gauge of the specification shown can be inserted between a cup and the bottom of its bore at any point around the cup, the cup is not correctly seated.

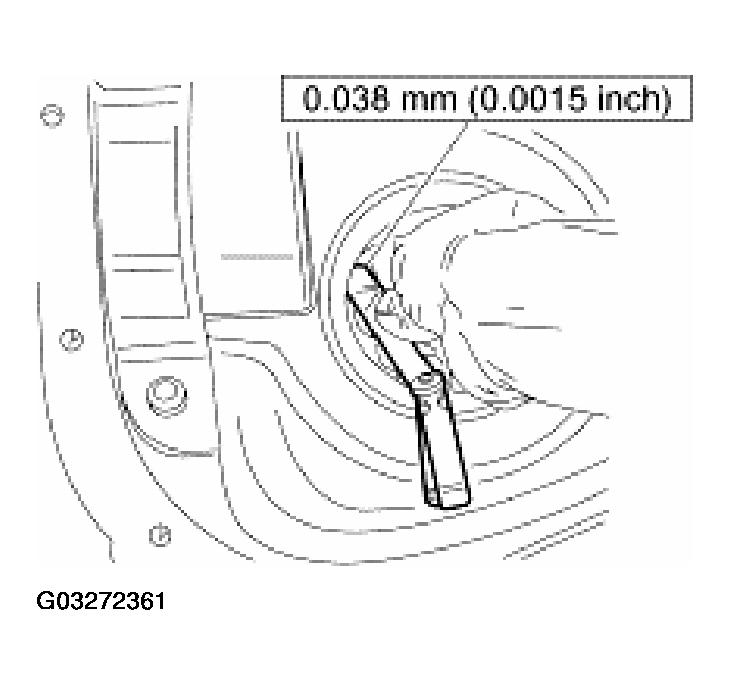

    Fig 4: Ensuring Pinion Bearing Cup Are Seated
    G03272361Courtesy of FORD MOTOR CO.
  4. Make sure the differential pinion bearing cups are correctly seated.
    5. NOTE: Install new drive pinion bearings without any additional lubricant since the anti-rust oil provides adequate lubricant without upsetting the drive pinion bearing preload settings.
  5. Assemble and position the drive pinion depth gauge set.
    1. Position the screw.
    2. Position the aligning adapter.
    3. Position the gauge disc.
    4. Position the gauge block.
    5. Position the inner drive pinion bearing.
    6. Position the outer drive pinion bearing.
    7. Thread on the handle and tighten.
      • Tighten to 2.2 N.m (20 lb-in).

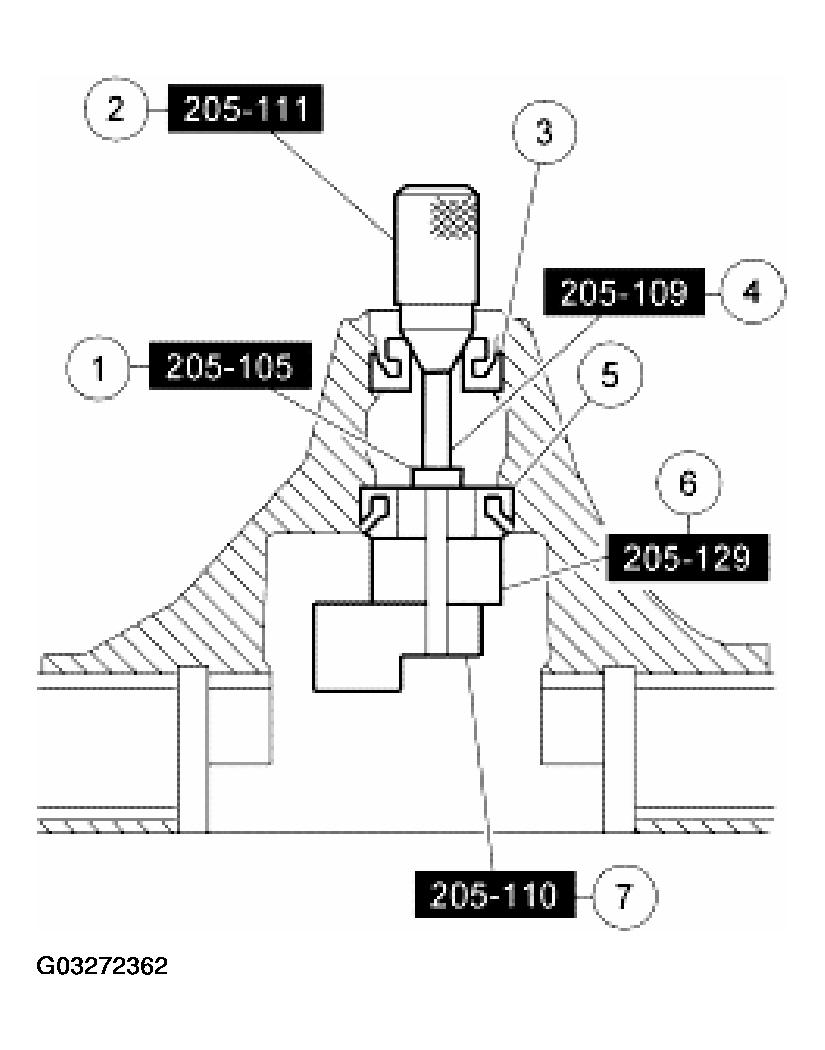

        Fig 5: Installing Special Tool
        G03272362Courtesy of FORD MOTOR CO.
    6. NOTE: The gauge block must be offset to obtain an accurate reading.

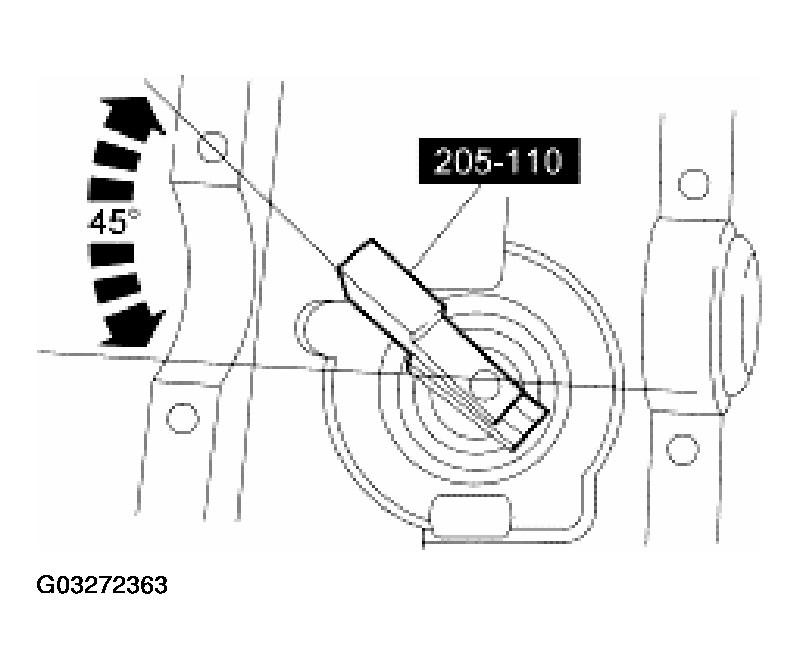

    Fig 6: Rotating Gauge Block
    G03272363Courtesy of FORD MOTOR CO.
  6. Rotate the gauge block several half turns to make sure of correct seating of the drive pinion bearings and position the gauge block.
  7. Install the special tool.
    1. Position the gauge tube and the paper shipping tabs.
    2. Install the differential bearing caps.
    3. Install the differential bearing cap bolts.
      • Tighten to 105 N.m (77 lb-ft).

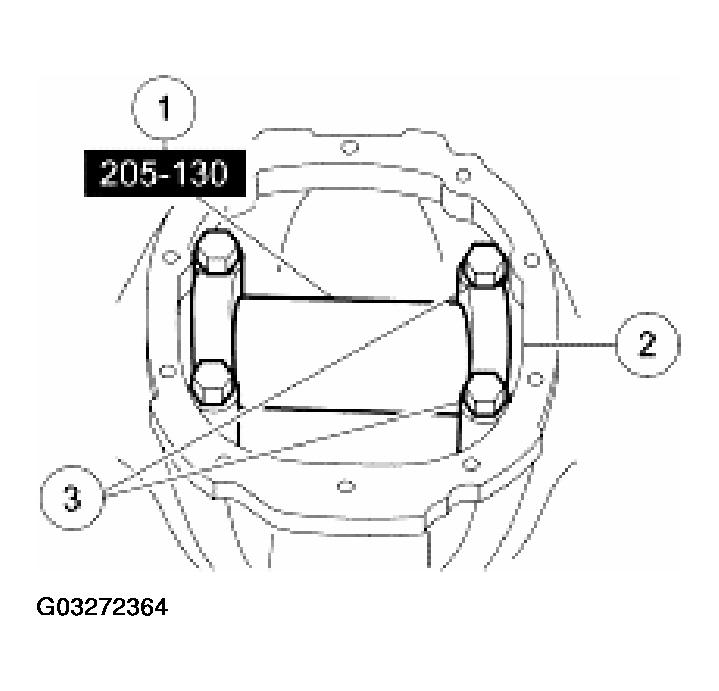

        Fig 7: Installing Special Tool
        G03272364Courtesy of FORD MOTOR CO.
    8. NOTE: Drive pinion bearing adjustment shims must be flat and clean.
    NOTE: A slight drag should be felt for correct drive pinion bearing adjustment shim selection. Do not attempt to force the drive pinion bearing adjustment shim between gauge block and gauge tube. This will minimize selection of a drive pinion bearing adjustment shim thicker than required, which results in a deep tooth contact in final assembly of integral axle assemblies.
  8. Use a drive pinion bearing adjustment shim as a gauge for drive pinion bearing adjustment shim selection.
    • After the correct drive pinion bearing adjustment shim thickness has been determined, remove all of the special tools.

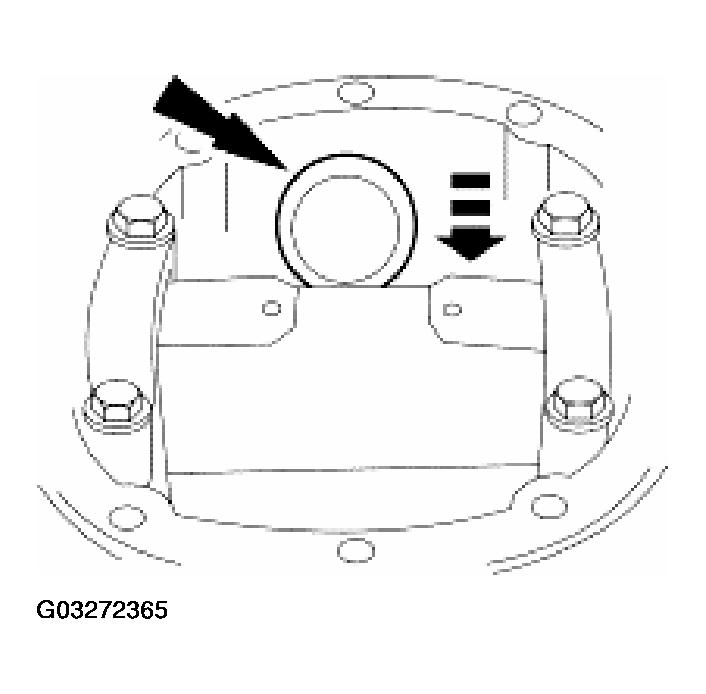

      Fig 8: Determining Drive Pinion Bearing Adjustment Shim Selection
      G03272365Courtesy of FORD MOTOR CO.
  9. Using the special tool and a shop press, drive the inner drive pinion bearing and drive pinion bearing adjustment shim until they are firmly seated on the pinion shaft.

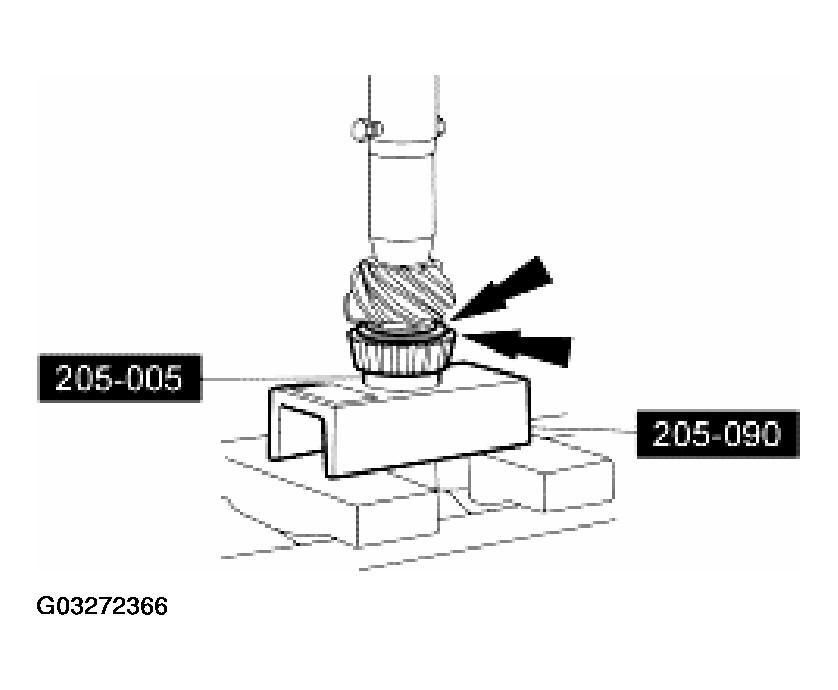

    Fig 9: Installing Drive Pinion Bearing
    G03272366Courtesy of FORD MOTOR CO.
  10. Install a new drive pinion collapsible spacer on the pinion shaft against the pinion shaft shoulder.

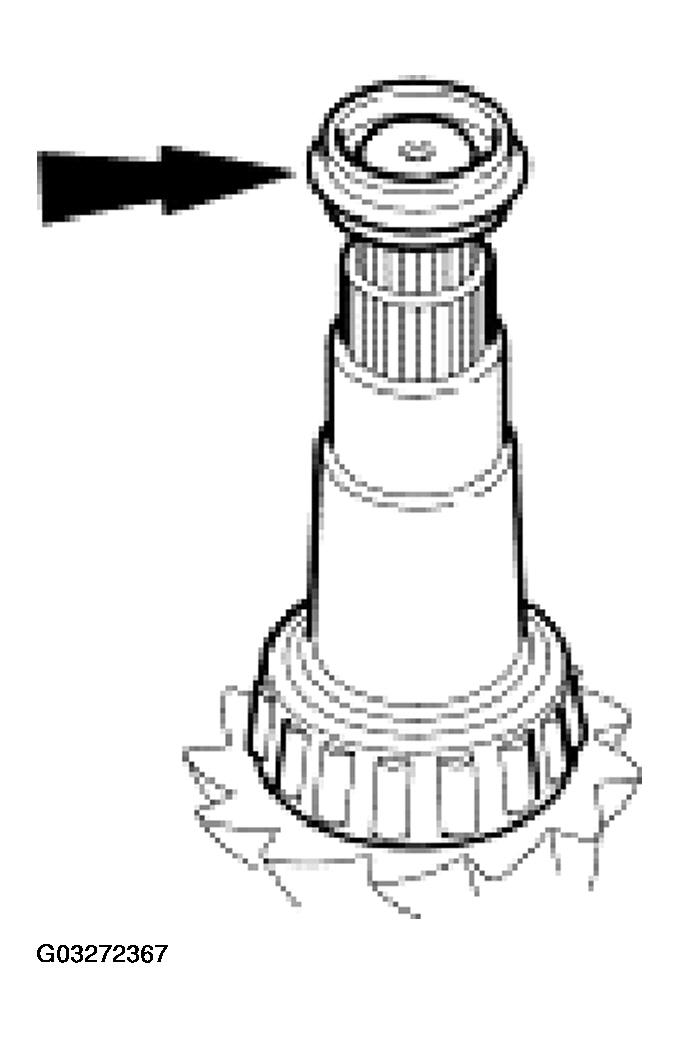

    Fig 10: Installing Drive Pinion Collapsible Spacer
    G03272367Courtesy of FORD MOTOR CO.
  11. Install the drive pinion assembly into the axle housing.

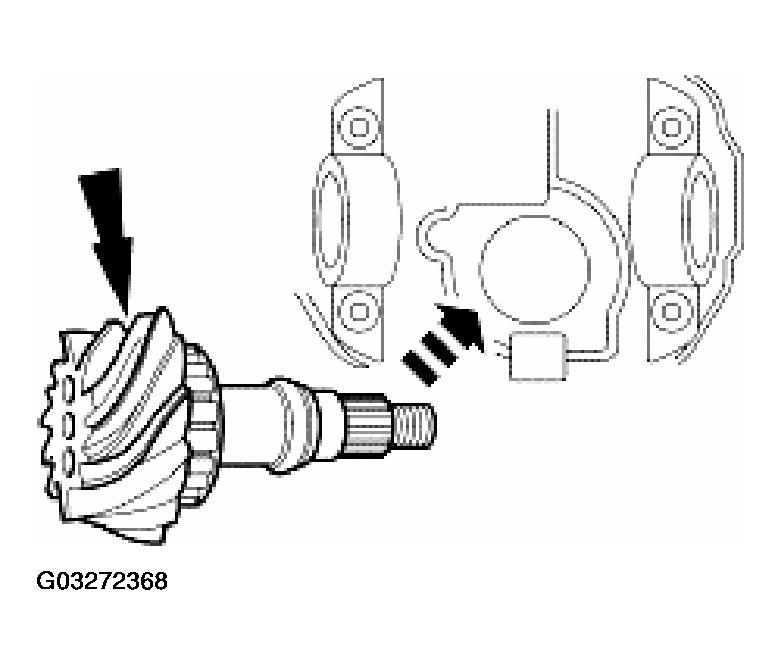

    Fig 11: Installing Drive Pinion Assembly Into Axle Housing
    G03272368Courtesy of FORD MOTOR CO.
  12. Install the outer drive pinion bearing and the drive pinion shaft oil slinger.
  13. Using the special tool, install the drive pinion seal.

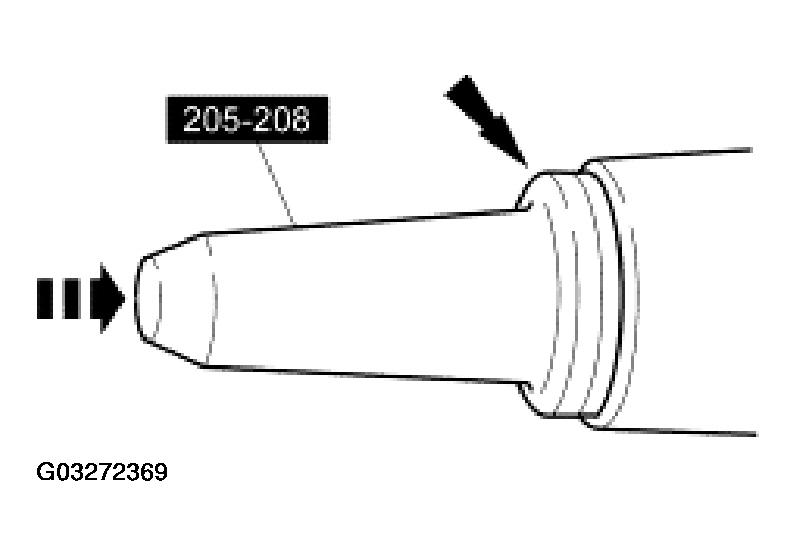

    Fig 12: Installing Drive Pinion Seal
    G03272369Courtesy of FORD MOTOR CO.
  14. Using the special tools, install the drive pinion flange.

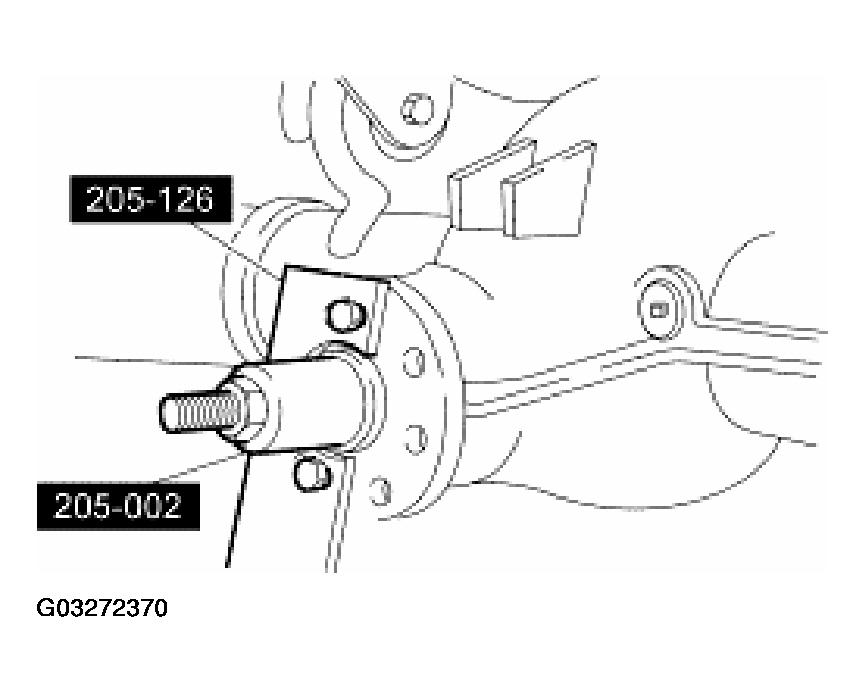

    Fig 13: Installing Drive Pinion Flange
    G03272370Courtesy of FORD MOTOR CO.
    15. CAUTION: Do not, under any circumstance, loosen the drive pinion nut to reduce pinion bearing preload. If it is necessary to reduce the preload, install a new drive pinion collapsible spacer and drive pinion nut.
    CAUTION: Remove the special tool while taking rotational pinion bearing preload checks with the N.m (inch-pound) torque wrench.
  15. Use the special tool to hold the pinion flange while tightening the pinion nut.
    • Rotate the pinion occasionally to make sure the differential pinion bearings are seating correctly. Take frequent differential pinion bearing preload checks by rotating the differential pinion with a N.m (inch-pound) torque wrench. Tighten the pinion nut in small increments to avoid excessive pinion bearing preload. Tighten the pinion nut until the drive pinion bearing preload is in specification.

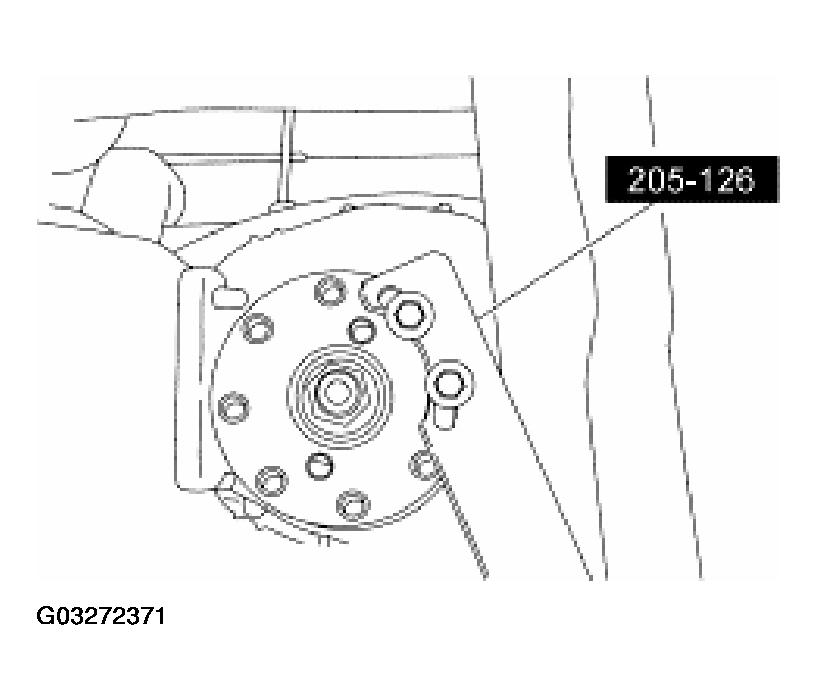

      Fig 14: Tightening Pinion Nut
      G03272371Courtesy of FORD MOTOR CO.
  16. Place the differential carrier assembly with the new differential carrier bearing cups in the axle housing.

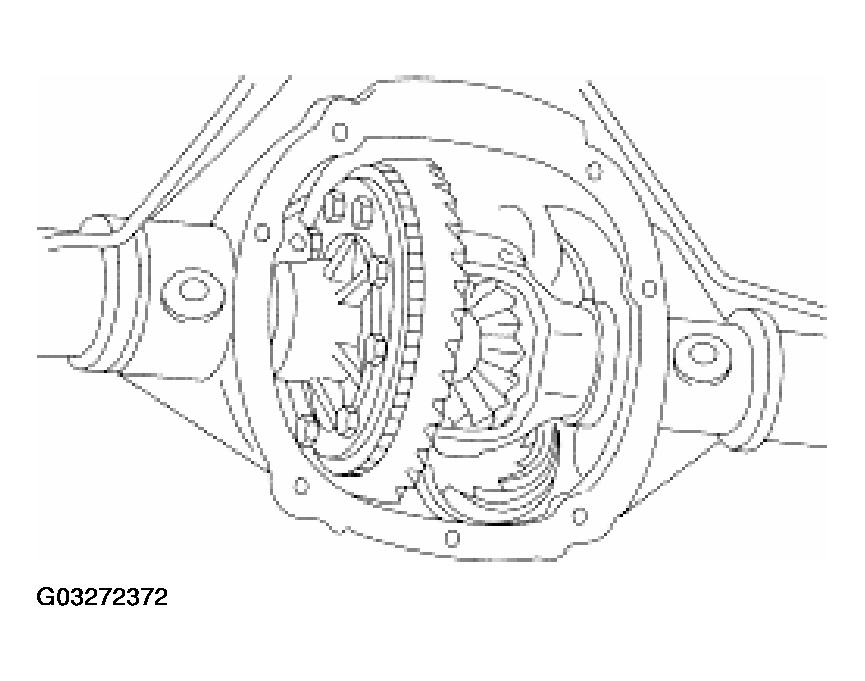

    Fig 15: Placing Differential Carrier Assembly In Axle Housing
    G03272372Courtesy of FORD MOTOR CO.

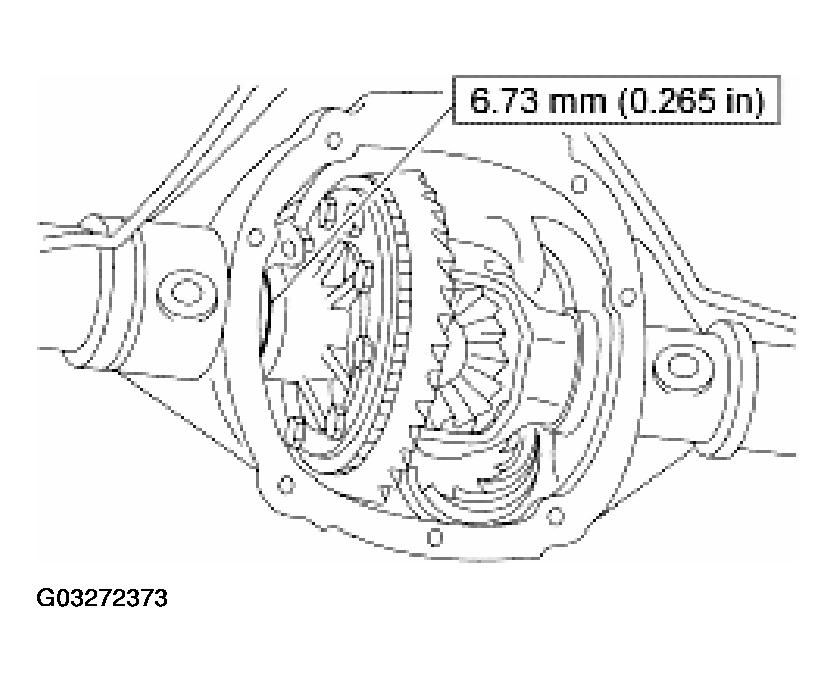

  17. Install a differential bearing shim on the LH side.
    Fig 16: Installing Differential Bearing Shim
    G03272373Courtesy of FORD MOTOR CO.
    18. NOTE: Apply pressure toward the LH side to make sure the left differential bearing cup is seated.

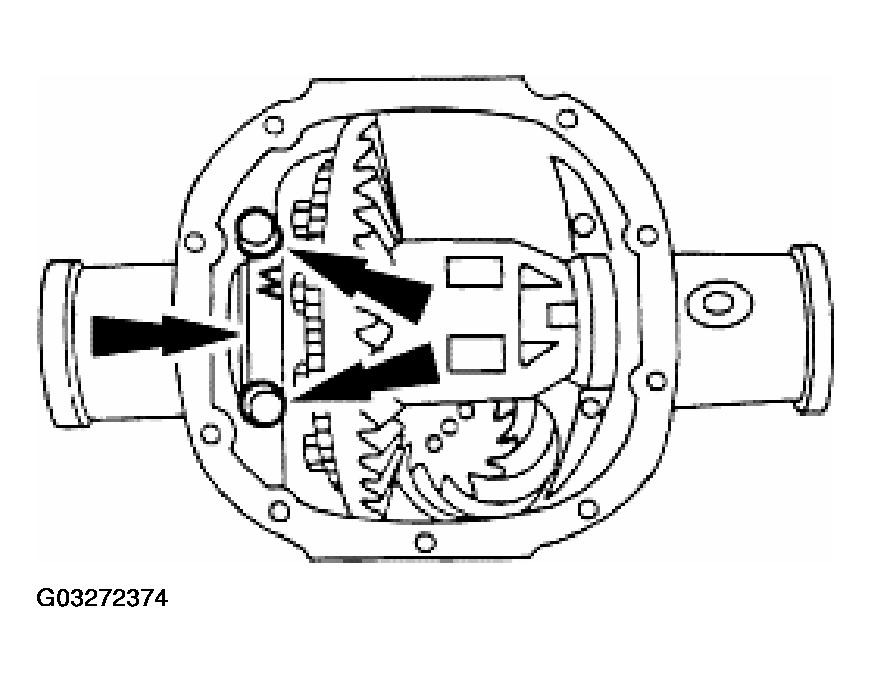

    Fig 17: Installing LH Differential Bearing Cap
    G03272374Courtesy of FORD MOTOR CO.
  18. Install the LH differential bearing cap and loosely install the differential bearing cap bolts.
  19. Install progressively larger differential bearing shims on the RH side until the largest differential bearing shim selected can be inserted by hand.

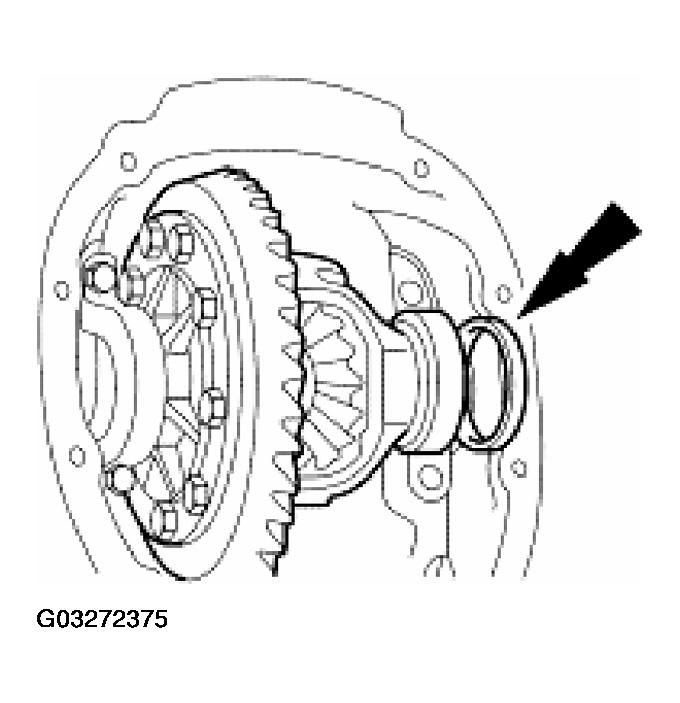

    Fig 18: Installing Larger Differential Bearing Shims
    G03272375Courtesy of FORD MOTOR CO.
  20. Install the RH side differential bearing cap and tighten the differential bearing cap bolts.
    • Tighten to 105 N.m (77 lb-ft).

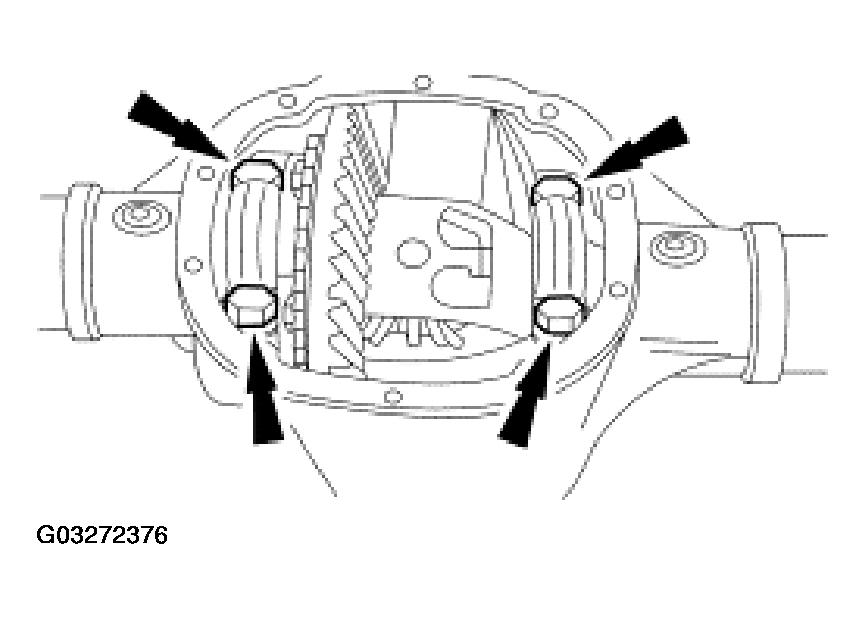

      Fig 19: Installing RH Side Differential Bearing Cap
      G03272376Courtesy of FORD MOTOR CO.
  21. Rotate the differential assembly to make sure it rotates freely.
    Fig 20: Rotating Differential Assembly
    G03272377Courtesy of FORD MOTOR CO.
  22. Install the special tools and measure the ring gear backlash.
    • If the backlash is within specification, proceed to Step  25.
    • If a zero backlash condition occurs, proceed to Step  23.
    • If the backlash is not within specification, proceed to Step  24.
      Fig 21: Measuring Backlash
      G03272378Courtesy of FORD MOTOR CO.
  23. If a zero backlash condition occurs, add 0.50 mm (0.020 in) to the RH side shim and subtract 0.50 mm (0.020 in) from the LH side shim to allow a backlash indication. Go back to Step  22.
  24. To correct for high or low backlash, increase the thickness of one differential bearing shim and decrease the thickness of the other differential bearing shim by the same amount. Refer to the following tables when adjusting the backlash. When the backlash is within specifications, proceed to Step  25.
    SHIM SPECIFICATIONS

    Backlash Change Required Thickness Change Required
    mm in mm in
    0.025 0.001 0.050 0.002
    0.050 0.002 0.050 0.002
    0.076 0.003 0.101 0.004
    0.101 0.004 0.152 0.006
    0.127 0.005 0.152 0.006
    0.152 0.006 0.203 0.008
    0.177 0.007 0.254 0.010
    0.203 0.008 0.254 0.010
    0.228 0.009 0.304 0.012
    0.254 0.010 0.355 0.014
    0.279 0.011 0.355 0.014
    0.304 0.012 0.406 0.016
    0.330 0.013 0.457 0.018
    0.335
    0.381    		 0.014
    0.015    		 0.457
    0.508    		 0.018
    0.020

    Differential Shim Size Chart 4067

    DIFFERENTIAL SHIM SIZE SPECIFICATION

    Stripes and Color Code Dimension A
    mm in
    2 - C-COAL 7.7978-7.8105 0.3070-0.3075
    1 - C-COAL 7.7470-7.7597 0.3050-0.3055
    5 - BLU 7.6962-7.7089 0.3030-0.3035
    4 - BLU 7.6454-7.6581 0.3010-0.3015
    3 - BLU 7.5946-7.6073 0.2990-0.2995
    2 - BLU 7.5458-7.5565 0.2970-0.2975
    5 - PINK 7.4422-7.4549 0.2930-0.2935
    4 - PINK 7.3914-7.4041 0.2910-0.2915
    3 - PINK 7.3406-7.3533 0.2890-0.2895
    2 - PINK 7.2898-7.3025 0.2870-0.2875
    1 - PINK 7.2390-7.2517 0.2850-0.2855
    5 - GRN 7.1882-7.2009 0.2830-0.2835
    4 - GRN 7.1374-7.1501 0.2810-0.2815
    3 - GRN 7.0866-7.0993 0.2790-0.2795
    2 - GRN 7.0358-7.0485 0.2770-0.2775
    1 - GRN 6.9850-7.0485 0.2750-0.2755
    5 - WH 6.9342-6.9469 0.2730-0.2735
    4 - WH 6.8834-6.8961 0.2710-0.2715
    3 - WH 6.8326-6.8453 0.2690-0.2695
    2 - WH 6.7818-6.7945 0.2670-0.2675
    1 - WH 6.7310-6.7437 0.2650-0.2655
    5 - YEL 6.6802-6.6929 0.2630-0.2635
    4 - YEL 6.6294-6.6421 0.2610-0.2615
    3 - YEL 6.5786-6.5913 0.2590-0.2595
    2 - YEL 6.5278-6.5405 0.2570-0.2575
    1 - YEL 6.4770-6.4897 0.2550-0.2555
    5 - ORNG 6.4262-6.4389 0.2530-0.2535
    4 - ORNG 6.3754-6.3881 0.2510-0.2515
    3 - ORNG 6.3246-6.3373 0.2490-0.2495
    2 - ORNG 6.2738-6.2865 0.2470-0.2475
    1 - ORNG 6.2223-6.2357 0.2450-0.2455
    2 - RED
    1 - RED    		 6.1722-6.1849
    6.1214-6.1341    		 0.2430-0.2435
    0.2410-0.2415
  25. Rotate the differential assembly several times to make sure the differential bearings are seated.

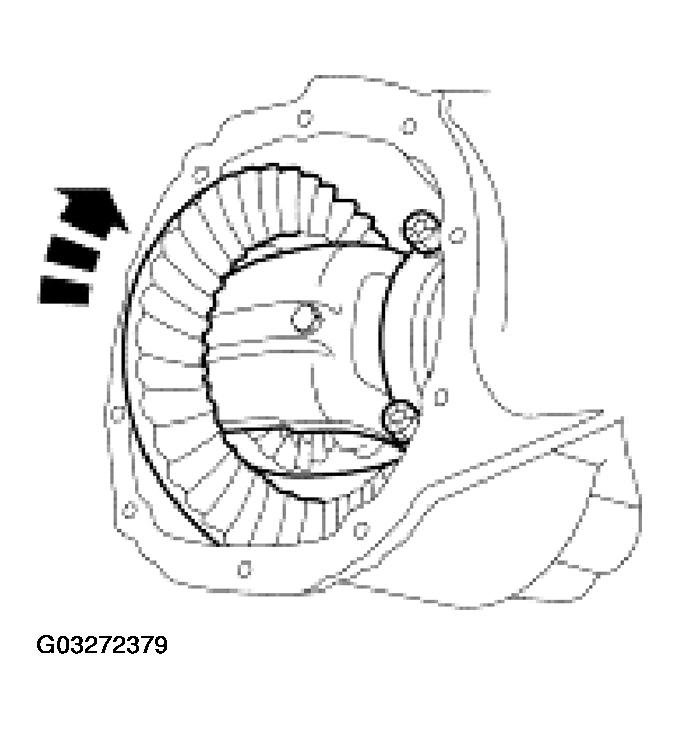

    Fig 22: Rotating Differential Assembly
    G03272379Courtesy of FORD MOTOR CO.
  26. Using the special tools, recheck the ring gear backlash.

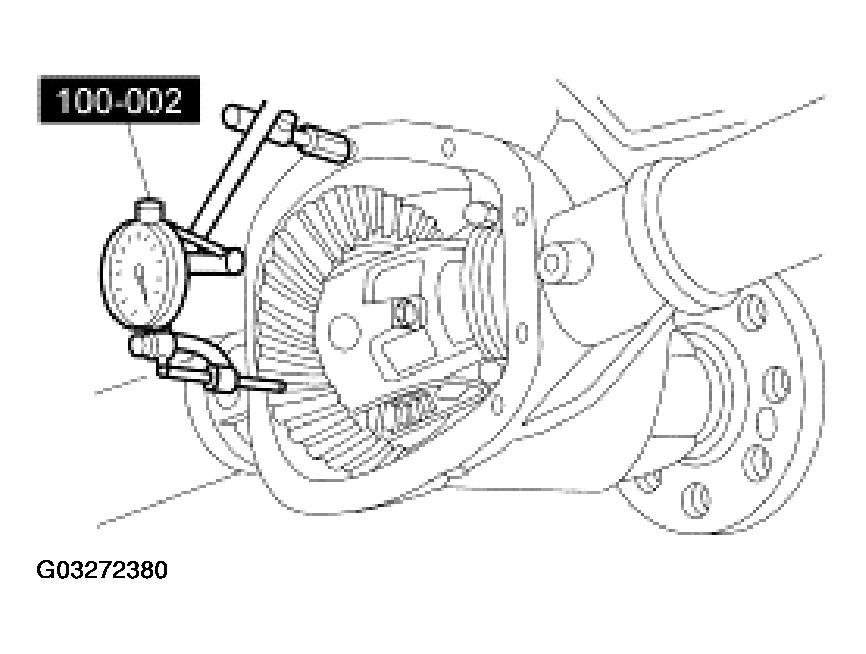

    Fig 23: Measuring Backlash
    G03272380Courtesy of FORD MOTOR CO.
  27. Remove the differential bearing cap bolts and differential bearing caps.

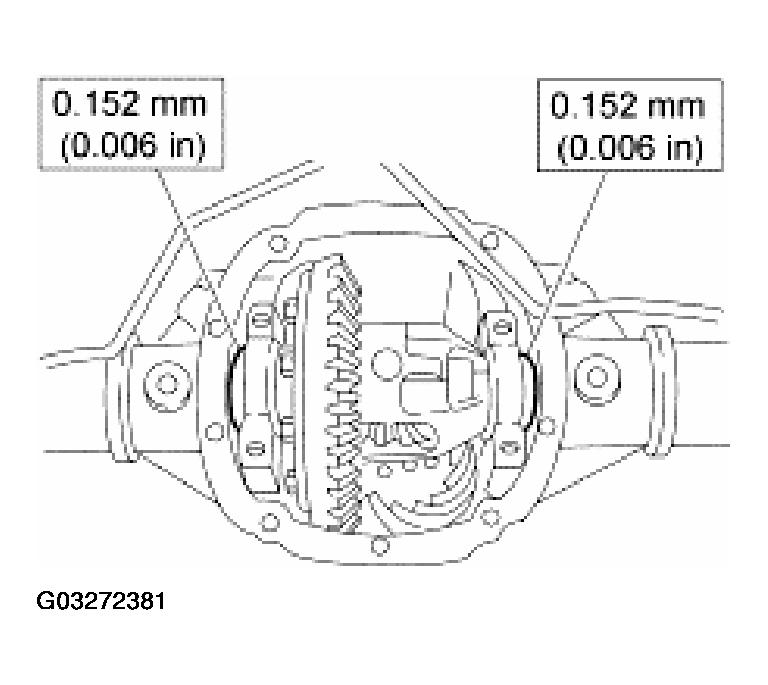

  28. To establish differential bearing preload, increase both LH and RH differential bearing shim sizes as shown.
    Fig 24: Removing Differential Bearing Cap Bolts
    G03272381Courtesy of FORD MOTOR CO.
  29. Using the special tool, fully seat the differential bearing shims. Make sure the assembly rotates freely.

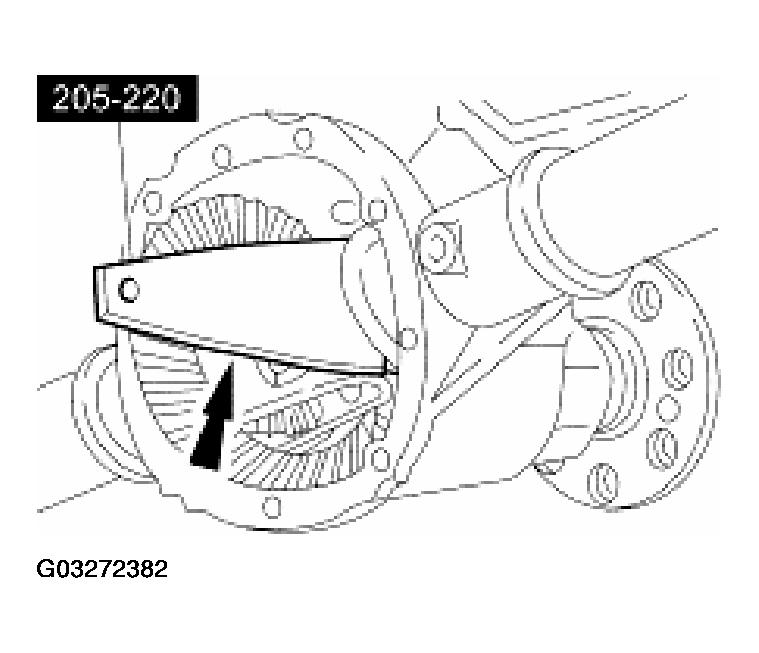

    Fig 25: Installing Special Tool
    G03272382Courtesy of FORD MOTOR CO.
  30. Install the differential bearing caps and differential bearing cap bolts.
    • Tighten to 105 N.m (77 lb-ft).

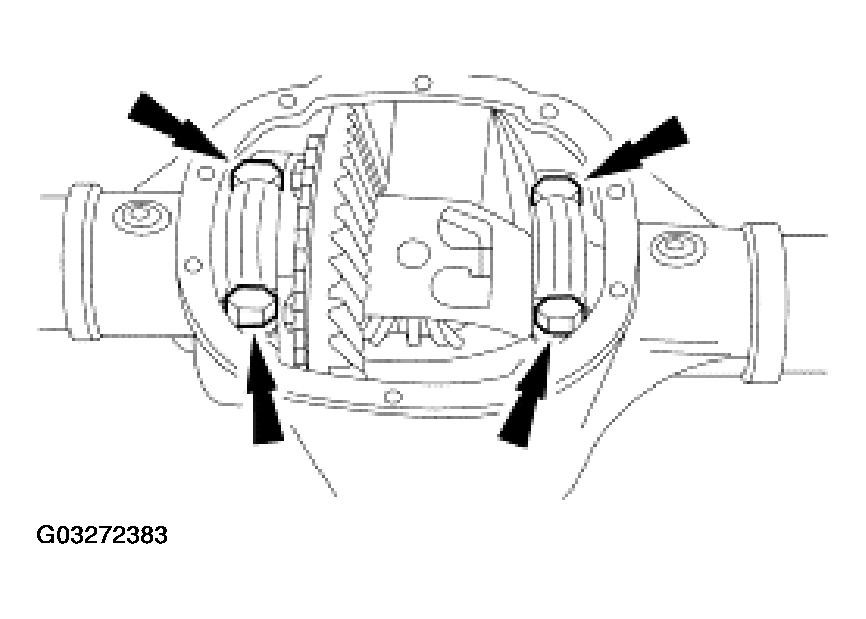

      Fig 26: Installing Differential Bearing Caps
      G03272383Courtesy of FORD MOTOR CO.
  31. Using the special tools, recheck the backlash.
  32. Apply marking compound and rotate the differential assembly 5 complete revolutions.
  33. Verify an acceptable pattern check.
  34. Install the axle shafts. For additional information, refer to AXLE SHAFT .
  35. Position the driveshaft and align the index marks on the pinion flange.

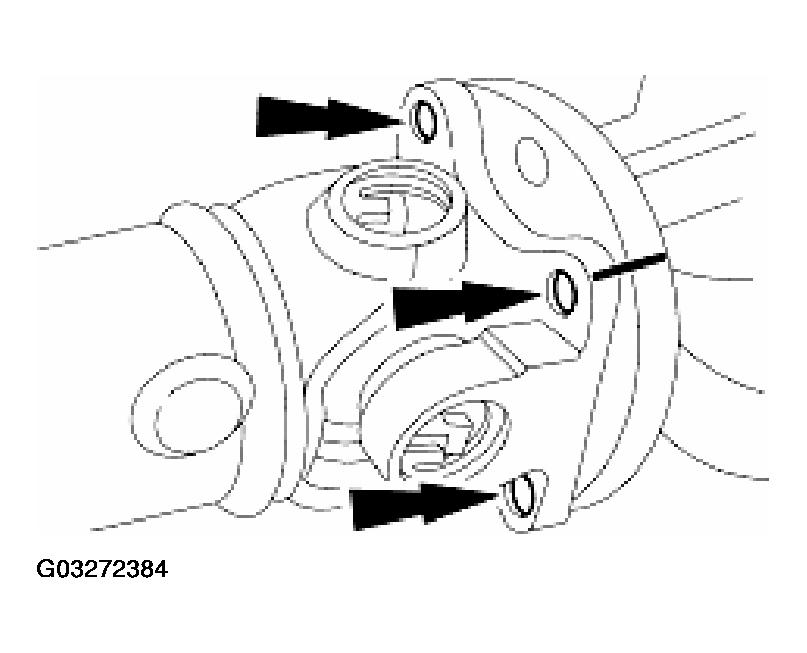

    Fig 27: Aligning Pinion Flange Index Marks
    G03272384Courtesy of FORD MOTOR CO.
    36. CAUTION: The driveshaft centering socket yoke fits tightly on the pinion flange pilot. To make sure that the driveshaft centering socket yoke seats squarely on the pinion flange, tighten the driveshaft flange bolts evenly in a cross pattern.
  36. Install the driveshaft flange bolts.
    • Tighten to 103 N.m (76 lb-ft).

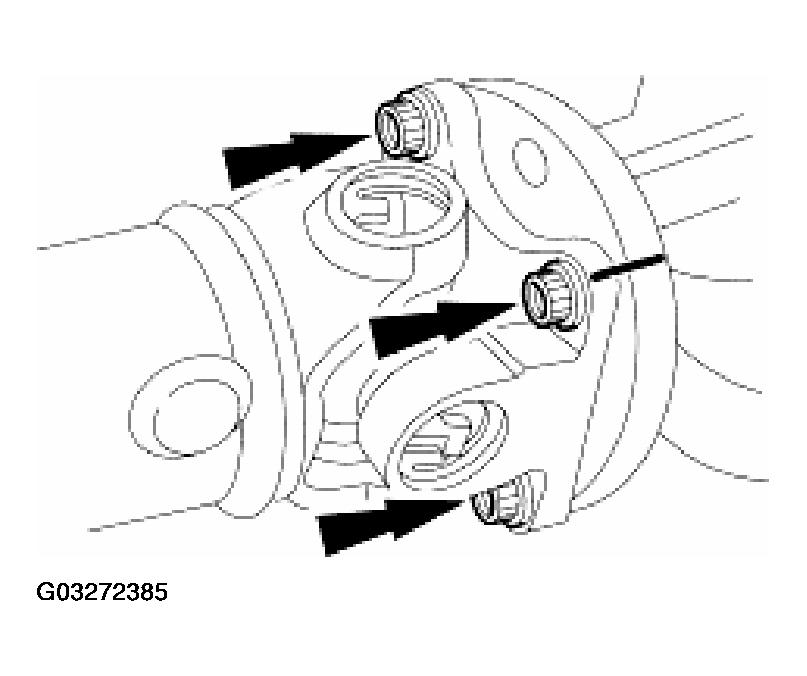

      Fig 28: Installing Driveshaft Flange Bolts
      G03272385Courtesy of FORD MOTOR CO.
