Differential Case and Ring Gear - Conventional: Assembly

WARNING: This page is about a different car, the 2004 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the differential side gear thrust washers and the differential side gear journals, and assemble the washers to the gears.

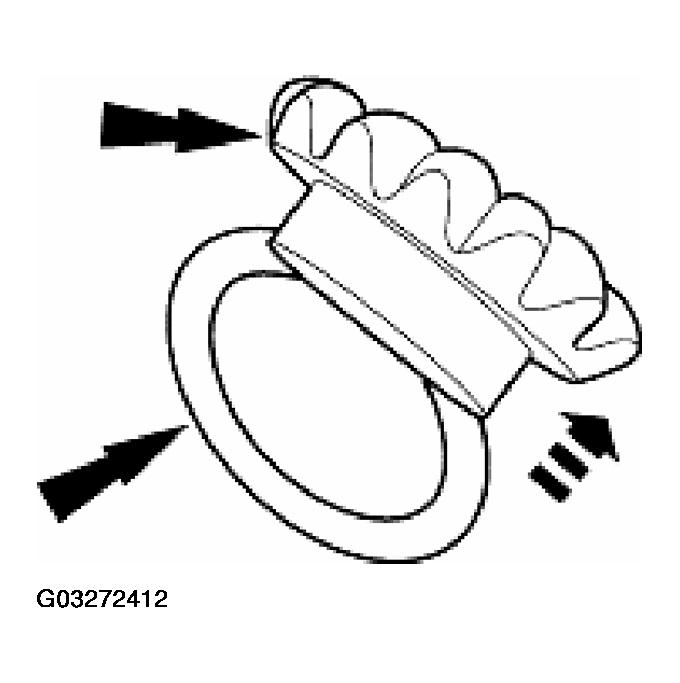

    Fig 1: Installing Washers And Gears
    G03272412Courtesy of FORD MOTOR CO.
  2. Lubricate the differential pinion thrust washers and the differential pinion gears, and assemble the washers to the gears.

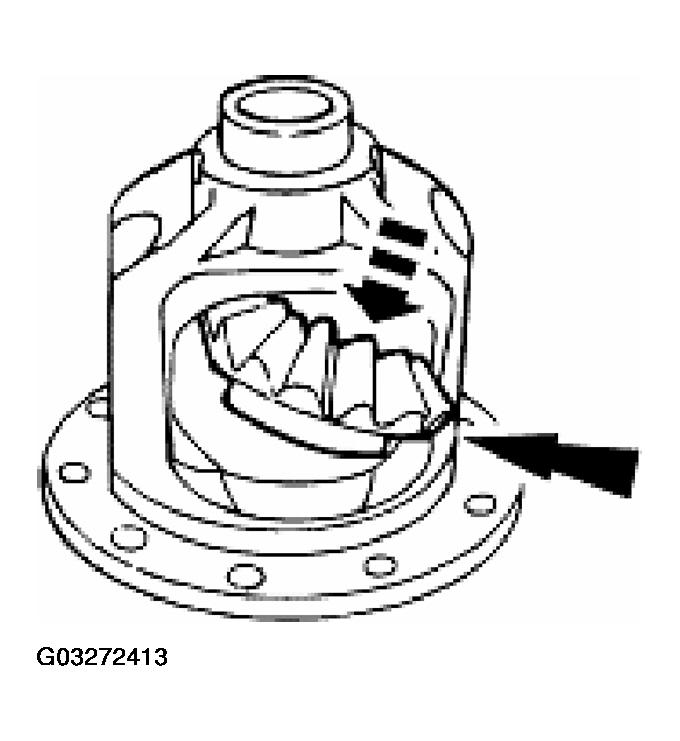

    Fig 2: Installing Washers And Gears
    G03272413Courtesy of FORD MOTOR CO.
  3. Position the differential side gears and thrust washers into the differential case.

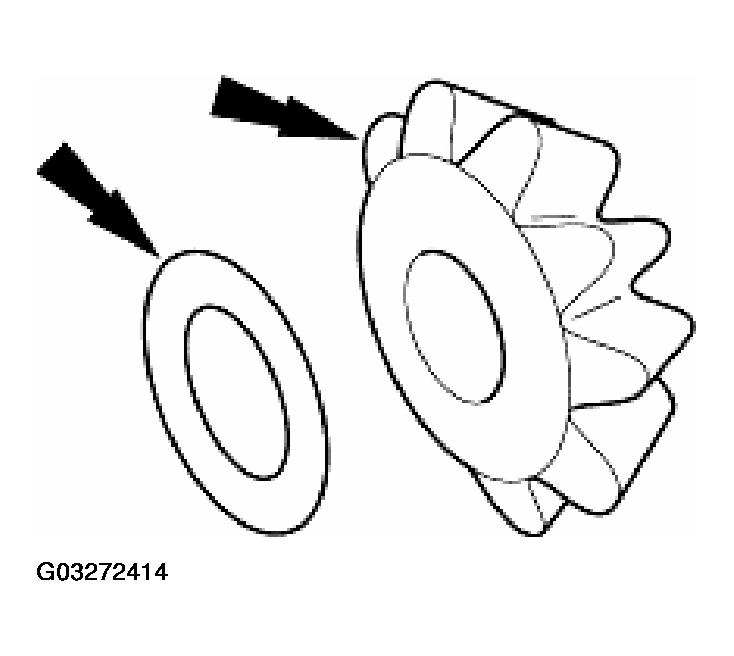

    Fig 3: Placing Differential Side Gears And Thrust Washers Into Differential Case
    G03272414Courtesy of FORD MOTOR CO.
  4. Engage the differential pinion gears with the differential side gears and rotate the pinion gears to align with the differential pinion shaft bore.

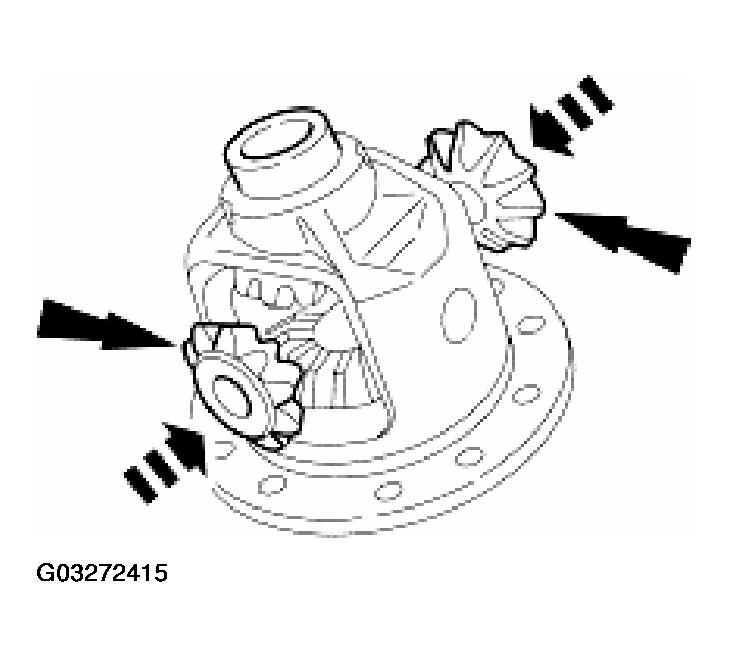

    Fig 4: Engaging Differential Pinion Gears With Differential Side Gears
    G03272415Courtesy of FORD MOTOR CO.
  5. Insert the differential pinion shaft.
    • Align the hole in the differential pinion shaft with the hole in the differential case.

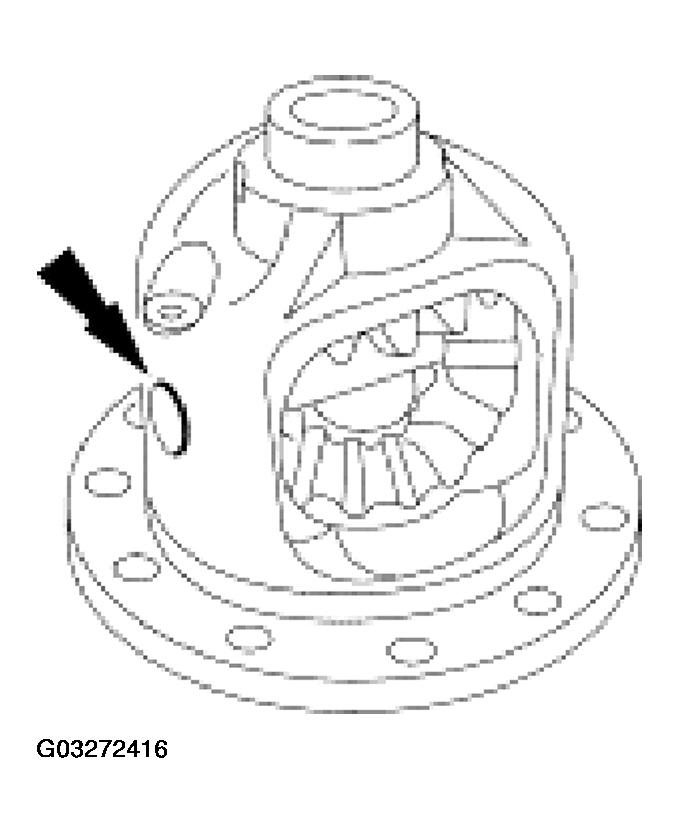

      Fig 5: Aligning Hole In Differential Pinion Shaft
      G03272416Courtesy of FORD MOTOR CO.
  6. NOTE: If a new pinion shaft lock bolt is unavailable, coat the original bolt threads with threadlock and sealer prior to installation.

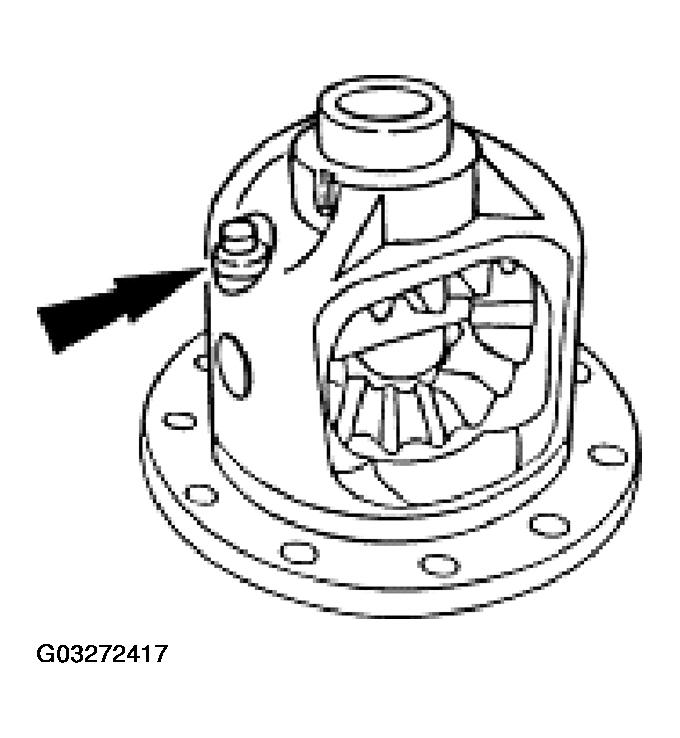

    Fig 6: Installing Differential Pinion Shaft Lock Bolt
    G03272417Courtesy of FORD MOTOR CO.
  7. Install a new differential pinion shaft lock bolt and tighten finger-tight.

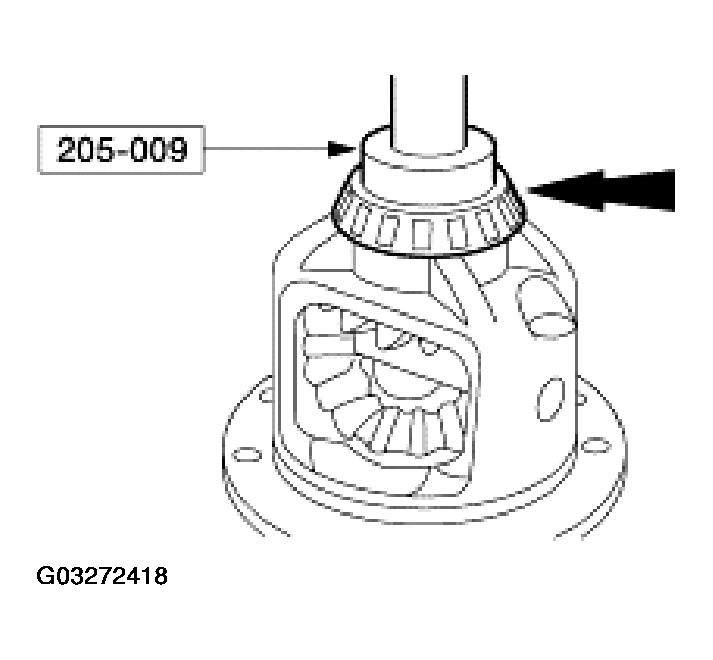

  8. Using the special tool, install the new differential bearings.
    Fig 7: Installing New Differential Bearings
    G03272418Courtesy of FORD MOTOR CO.
  9. CAUTION: Make sure that the notches on the case flange and the anti-lock speed sensor ring are aligned.

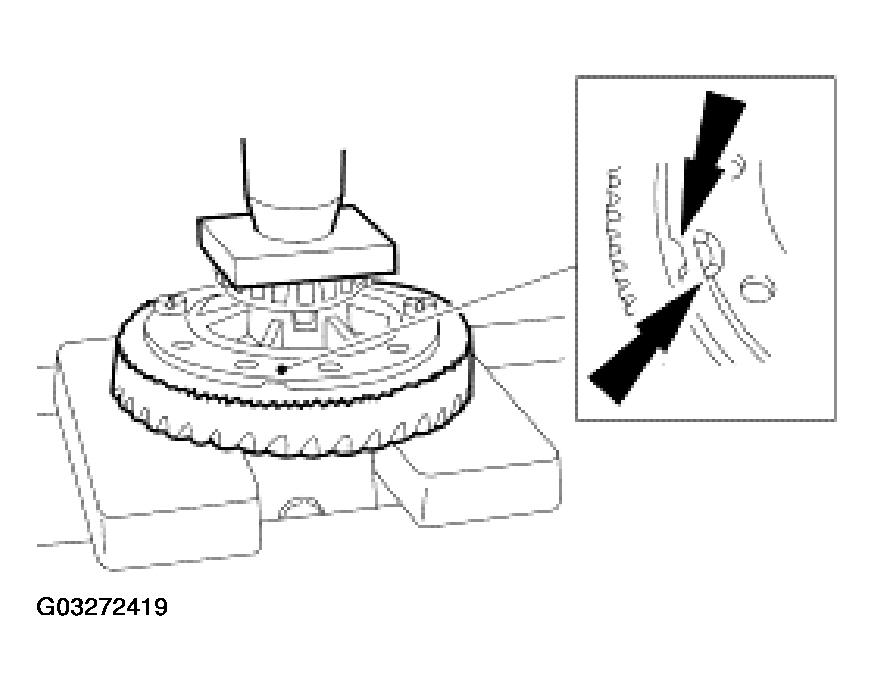

    Fig 8: Installing Ring Gear On Differential Case
    G03272419Courtesy of FORD MOTOR CO.
  10. Press the ring gear on the differential case.
  11. NOTE: Apply stud and bearing mount to the ring gear bolt threads.

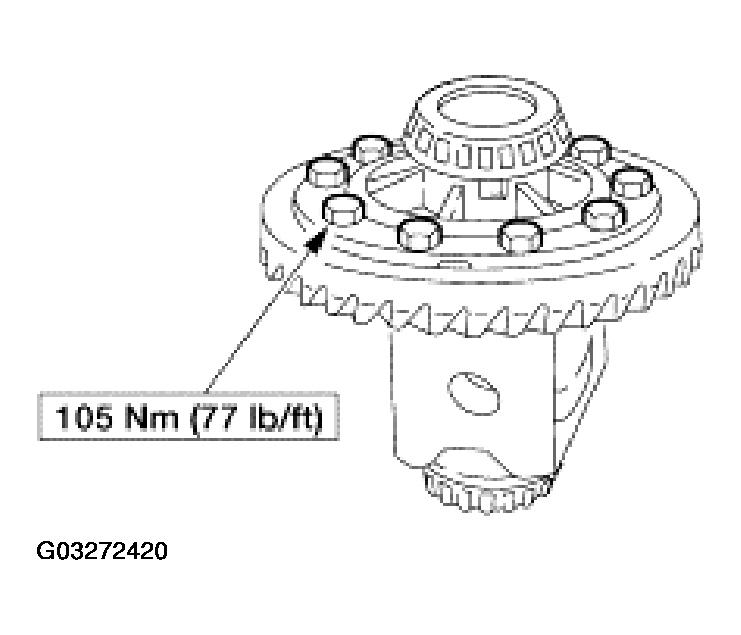

    Fig 9: Installing Ring Gear Bolts
    G03272420Courtesy of FORD MOTOR CO.
  12. Install the ring gear bolts.
  13. Install the differential case. For additional information, refer to DIFFERENTIAL CASE .
