RH Rear Door Latch C804

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

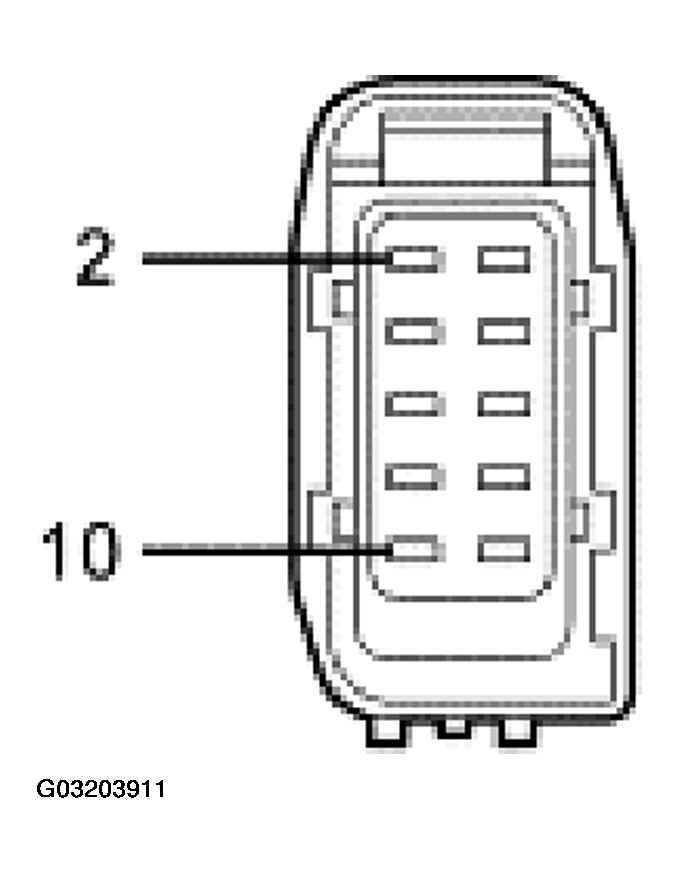

Fig 1: Identifying RH Rear Door Latch C804
G03203911Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION CHART

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
2 33-AA25 (YE/RD) RH rear door latch lock output Less than 5 ohms resistance between the RH rear door latch and the REM. Greater than 10,000 ohms between the RH rear door latch and ground.
10 32-AA26 (WH/BU) RH rear door latch unlock output Less than 5 ohms resistance between the RH rear door latch and the REM. Greater than 10,000 ohms between the RH rear door latch and ground.
