Pinpoint Test G: The Roof Opening Panel Does Not Open Or Close In Vent Position

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
  1. G1 VERIFY THE ROOF OPENING PANEL ADJUSTMENT
    • Verify the roof opening panel is adjusted correctly.
    • Is the roof opening panel adjusted correctly?
    1. Yes  : GO to G2.
    2. No  : ADJUST the roof opening panel. REFER to ROOF OPENING PANEL ALIGNMENT . REINITIALIZE the roof opening panel. REFER to ROOF OPENING PANEL MOTOR INITIALIZATION . TEST the system for normal operation.
  2. G2 CHECK THE ROOF OPENING PANEL LIFTER ASSEMBLIES FOR OBSTRUCTIONS AND DAMAGE
    • Check the roof opening panel lifter assemblies for obstructions and damage.
    • Are the roof opening panel lifter assemblies OK?
    1. Yes  : GO to G3.
    2. No  : REMOVE all obstructions and REPAIR any damage. REINITIALIZE the roof opening panel. REFER to ROOF OPENING PANEL MOTOR INITIALIZATION . TEST the system for normal operation.
  3. G3 CHECK THE ROOF OPENING PANEL CONTROL SWITCH
    • Key in OFF position.
    • Disconnect: Roof Opening Panel Control Switch C912.
    • Carry out the roof opening panel control switch component test. REFER to COMPONENT TEST .
    • Is the roof opening panel control switch OK?
    1. Yes  : GO to G4.
    2. No  : INSTALL a new roof opening panel control switch. REINITIALIZE the roof opening panel. REFER to ROOF OPENING PANEL MOTOR INITIALIZATION . TEST the system for normal operation.
  4. G4 CHECK CIRCUIT 32-AG12 (WH/GN) FOR A SHORT TO GROUND OR AN OPEN
    • Disconnect: Roof Opening Panel Motor C920.
    • Measure the resistance between the roof opening panel motor C920-4, circuit 32-AG12 (WH/GN), harness side and ground; and between the roof opening panel motor C920-4, circuit 32-AG12 (WH/GN), harness side and the roof opening panel control switch C912-4, circuit 32-AG12 (WH/GN), harness side.

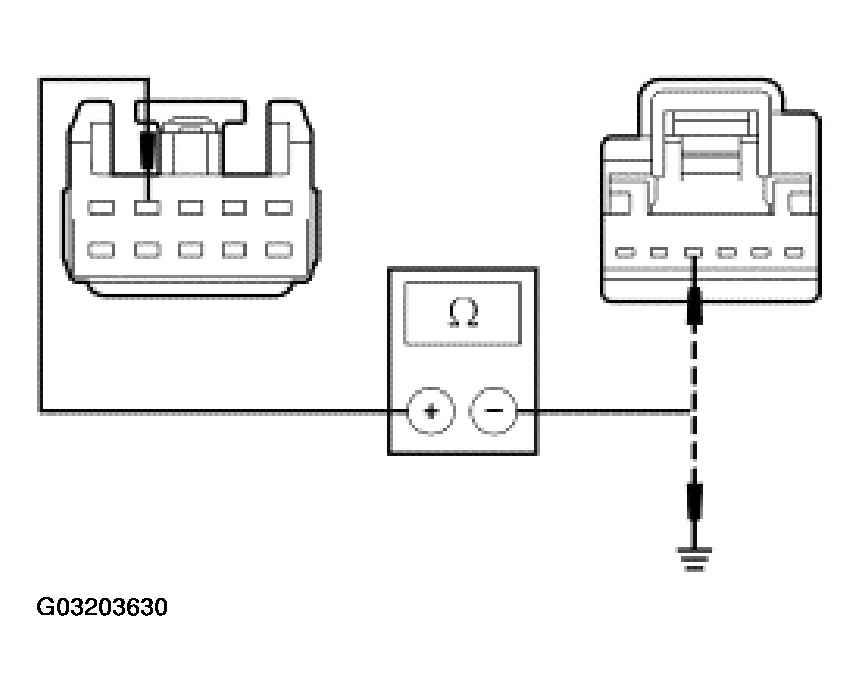

      Fig 1: Measuring Resistance Between Roof Opening Panel Motor C920-4, Circuit 32-AG12 (WH/GN), Harness Side And Ground
      G03203630Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms between the roof opening panel motor and ground and less than 5 ohms between the roof opening panel control switch and the roof opening panel motor?
    1. Yes  : GO to G5.
    2. No  : REPAIR the circuit. REINITIALIZE the roof opening panel. REFER to ROOF OPENING PANEL MOTOR INITIALIZATION . TEST the system for normal operation.
  5. G5 CHECK CIRCUIT 33-AG10 (YE/BU) FOR A SHORT TO GROUND OR AN OPEN
    • Measure the resistance between the roof opening panel motor C920-8, circuit 33-AG10 (YE/BU), harness side and ground; and between the roof opening panel motor C920-8, circuit 33-AG10 (YE/BU), harness side and the roof opening panel control switch C912-5, circuit 33-AG10 (YE/BU), harness side.

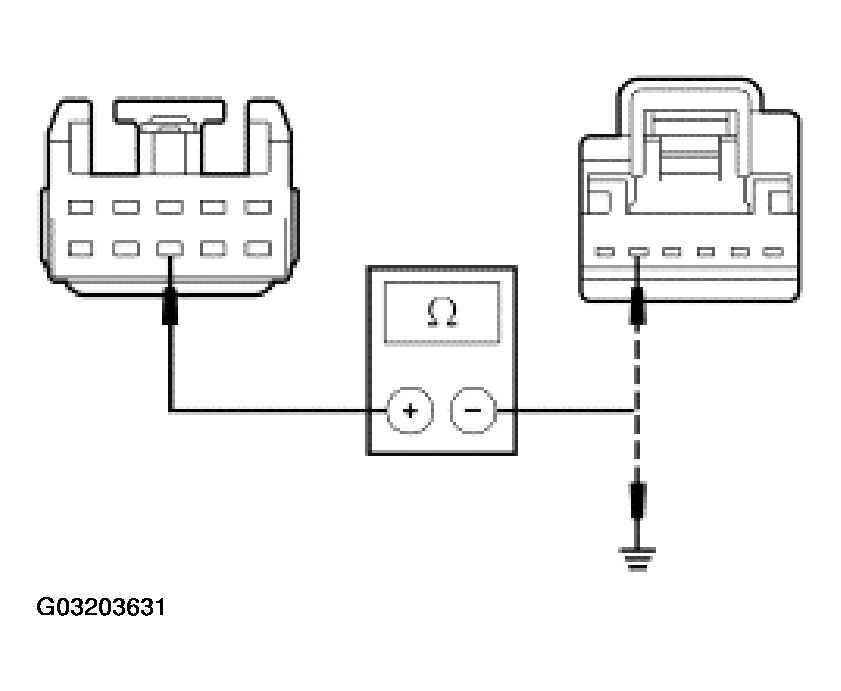

      Fig 2: Measuring Resistance Between Roof Opening Panel Motor C920-8, Circuit 33-AG10 (YE/BU), Harness Side And Ground
      G03203631Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10,000 ohms between the roof opening panel motor and ground and less than 5 ohms between the roof opening panel motor and the roof opening panel control switch?
    1. Yes  : INSTALL a new roof opening panel motor. Refer to ROOF OPENING PANEL . REINITIALIZE the roof opening panel. REFER to ROOF OPENING PANEL MOTOR INITIALIZATION . TEST the system for normal operation.
    2. No  : REPAIR the circuit. REINITIALIZE the roof opening panel. REFER to ROOF OPENING PANEL MOTOR INITIALIZATION . TEST the system for normal operation.
