Instrument Cluster C220b

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

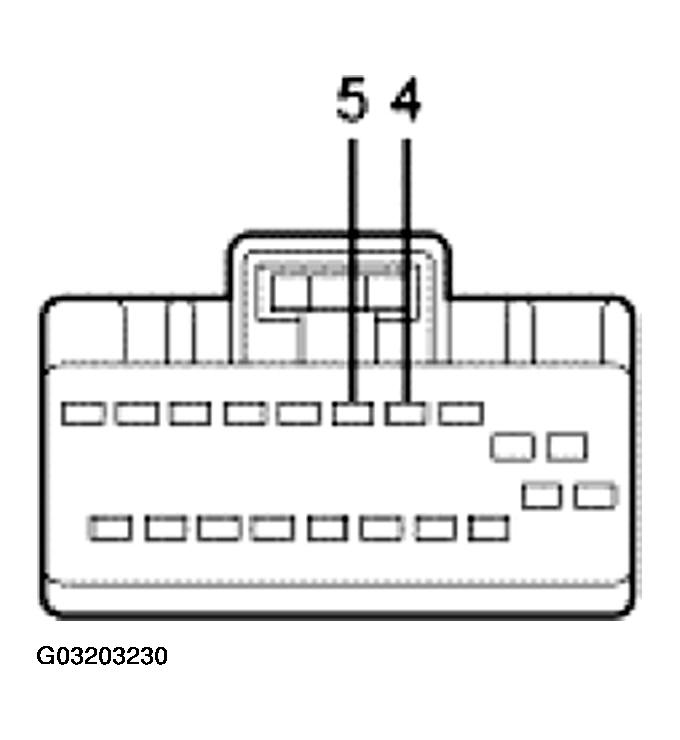

Fig 1: Identifying Instrument Cluster C220B Connector Pinouts
G03203230Courtesy of FORD MOTOR CO.
INSTRUMENT CLUSTER C220B CONNECTOR PINOUTS REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
4 8-GL36 (WH/RD) transmits signal to PATS 0 voltage, 5 ohms or less between the instrument cluster and the PATS transceiver. Greater than 10,000 ohms to ground with the instrument cluster and the PATS transceiver disconnected.
5 10-GL36 (GY/RD) receives signal from PATS 0 voltage, 5 ohms or less between the instrument cluster and the PATS transceiver. Greater than 10,000 ohms to ground with the instrument cluster and the PATS transceiver disconnected.
