Hood Ajar Switch C127
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

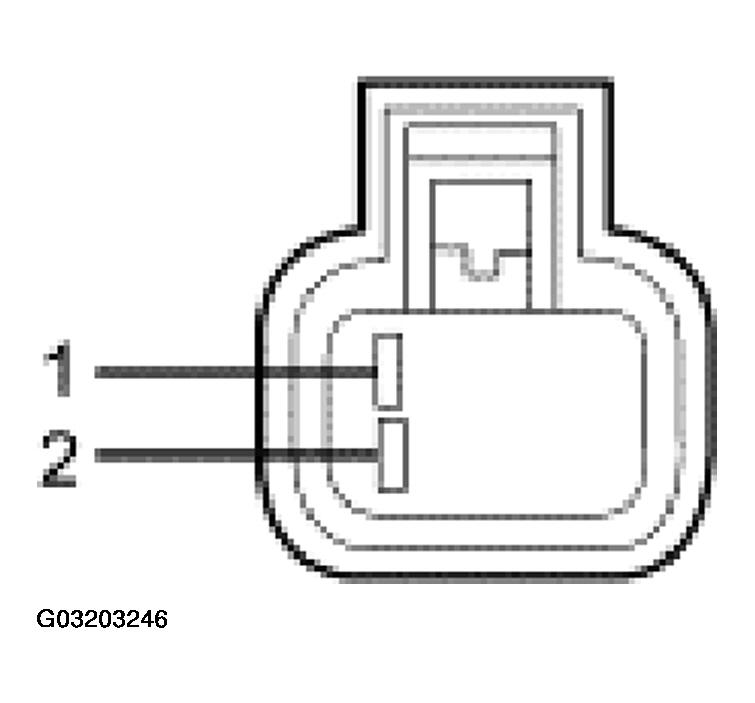

HOOD AJAR SWITCH C127 CONNECTOR PINOUTS REFERENCE
| Pin Number(s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 8-GL7 (WH) FEM to hood ajar switch circuit | Less than 5 ohms between FEM and hood ajar switch, Greater than 10,000 ohms to ground with the FEM and the hood ajar switch disconnected. |
| 2 | 31-GL7 (BK/YE) ground circuit for hood ajar switch | 0 volts, less than 5 ohms to ground with the hood ajar switch disconnected. |
