FEM C201b

WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

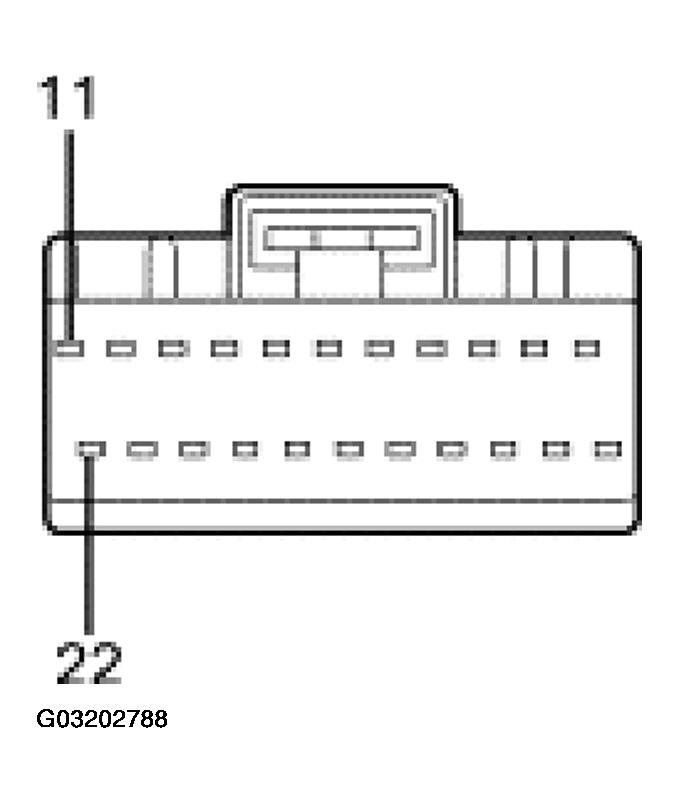

Fig 1: Identifying FEM C201B
G03202788Courtesy of FORD MOTOR CO.
CIRCUIT DESIGNATION/DESCRIPTION

Pin Number (s) Circuit Designation/Description Normal Condition/Measurement
11 31S-LF17(BK/WH) RH front side marker lamp control ground circuit Less than 5 ohms between the FEM and the RH front side marker lamp. Greater than 10 volts with the ignition ON.
22 31S-LF8 (BK/OG) LH front side marker lamp control ground circuit Less than 5 ohms between the FEM and the LH front side marker lamp. Greater than 10 volts with the ignition ON.
