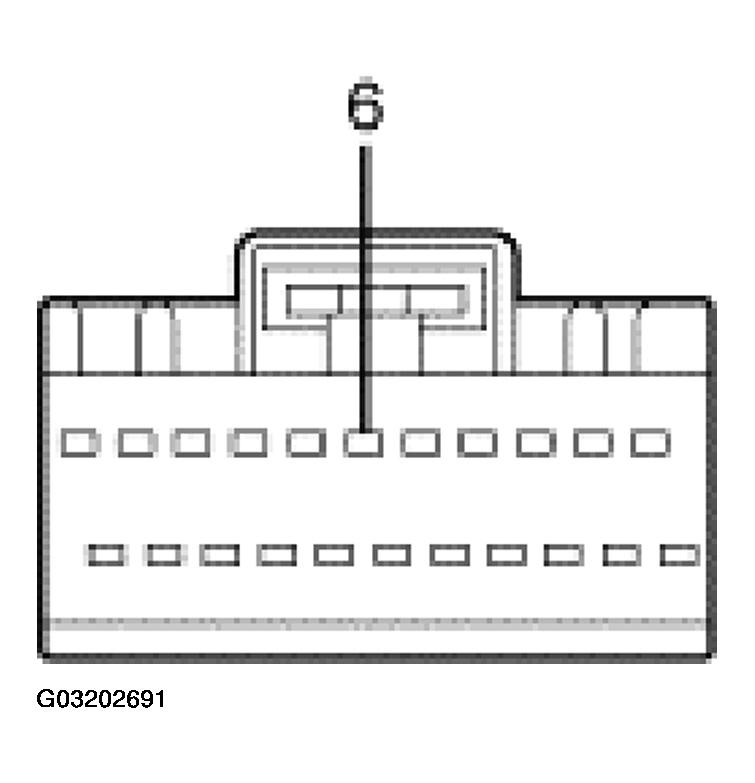

FEM C 201b
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
CIRCUIT DESIGNATION/DESCRIPTION
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 6 | 91S-LE16(BN/YE) LH HID low beam control ground circuit | Greater than 10 volts with the key ON. Less than 5 ohms between the FEM and LH HID relay. Greater than 10,000 ohms between the FEM and ground. |
