Oil Pan, Oil Pump, Oil Pump Screen and Pickup Tube: Material

1. With the vehicle in NEUTRAL position it on a hoist.
2. Remove the radiator upper sight shield.
3. Remove the air cleaner assembly. For additional information refer to INTAKE AIR, FUEL CHARGING, STARTING & ENGINE ELECTRONICS - 3.0L (4V) .
4. Install the special tools.

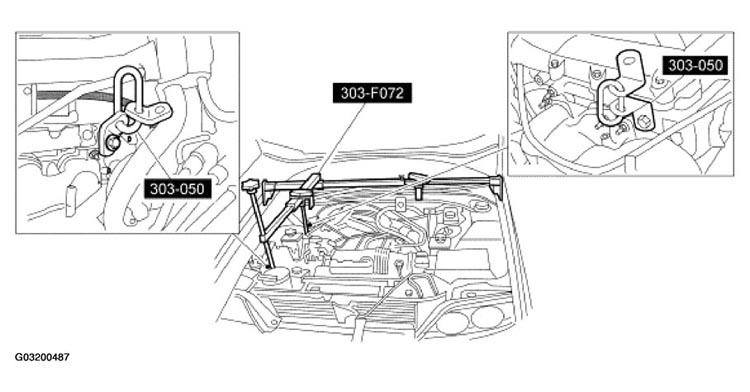

   Fig 1: Installing Special Tools

   Courtesy of FORD MOTOR CO.
5. Remove the steering gear. For additional information, refer to STEERING SYSTEM .
6. Remove the RH front splash shield, the LH front splash shield, and the front center splash shield.
7. Remove the generator. For additional information, refer to GENERATORS & REGULATORS .
8. Remove the A/C compressor. For additional information, refer to CLIMATE CONTROL SYSTEM .
9. Drain the engine oil.
10. To remove individual components, only carry out the listed steps.
    COMPONENT STEPS SPECIFICATION CHART



    Component	Steps
    Oil pan	1-5
    Oil pump screen and pickup tube	1-9
    Oil pump	1-11

11. Remove the components in the order indicated in the following illustration and table. See Fig 2.

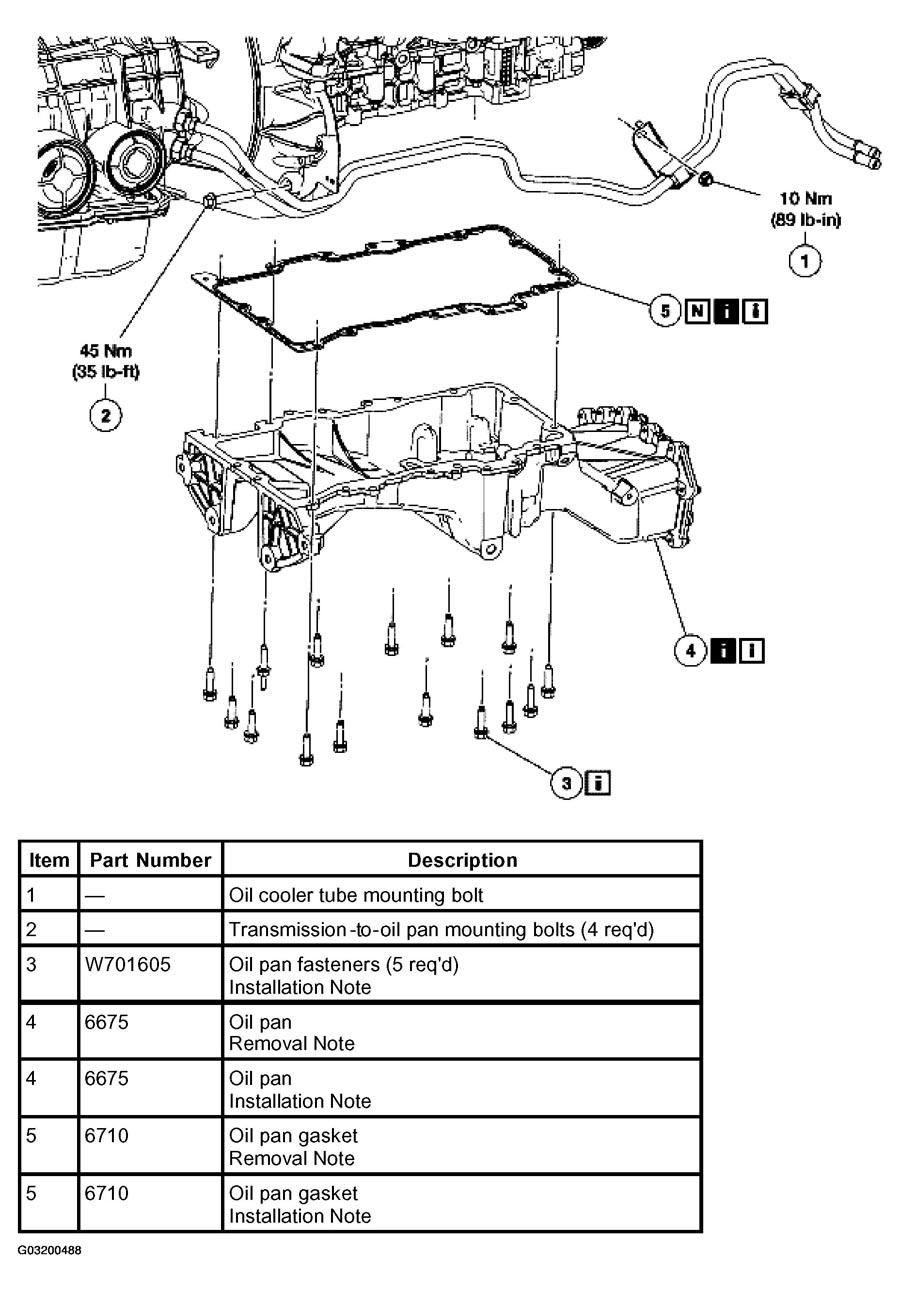

    Fig 2: Removing Oil Pan

    Courtesy of FORD MOTOR CO.
12. Remove the components in the order indicated in the following illustration and table. See Fig 3.

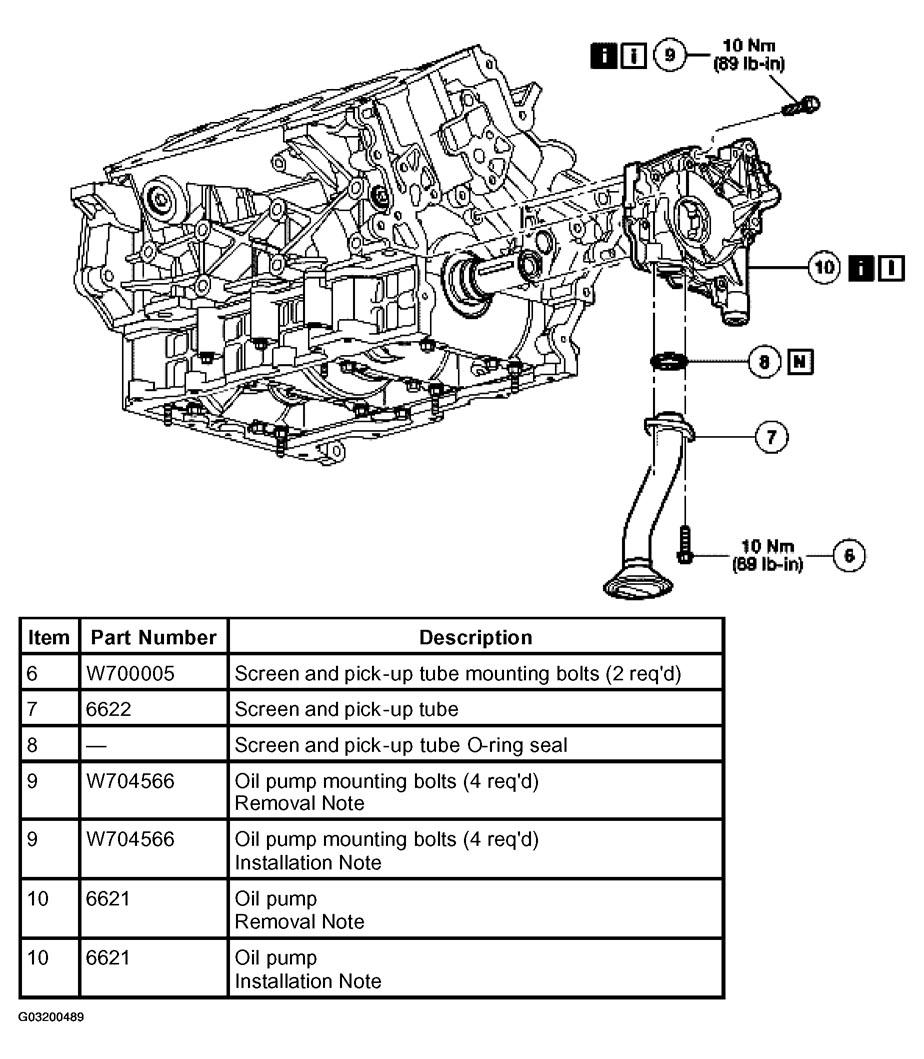

    Fig 3: Removing Oil Pump

    Courtesy of FORD MOTOR CO.
13. To install, reverse the removal procedure.

Item 4: Oil Pan Removal Note

1. Remove the eight bolts and the two front I-braces.

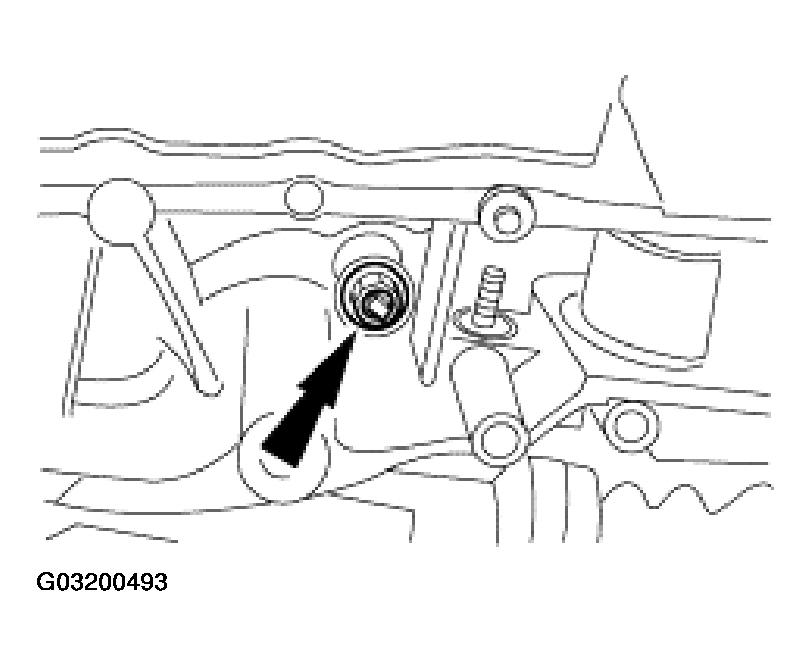

   Fig 4: Locating I-Braces Clamping Bolts

   Courtesy of FORD MOTOR CO.
2. Remove the LH lower control arm through-bolt.

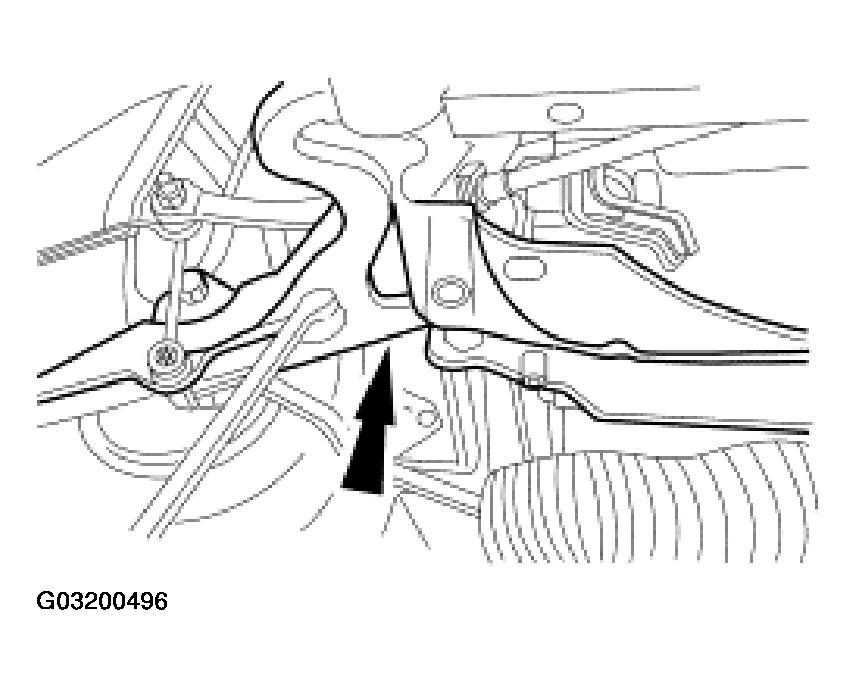

   Fig 5: Removing LH Lower Control Arm Through-Bolt

   Courtesy of FORD MOTOR CO.
3. Remove the RH lower control arm through-bolt.

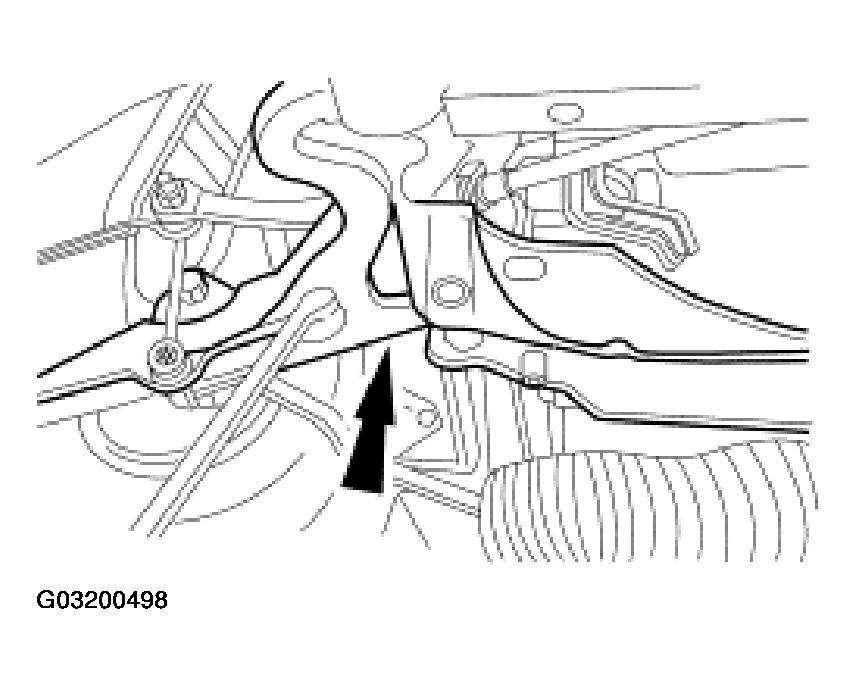

   Fig 6: Removing RH Lower Control Arm Through-Bolt

   Courtesy of FORD MOTOR CO.
NOTE: LH shown; RH similar.

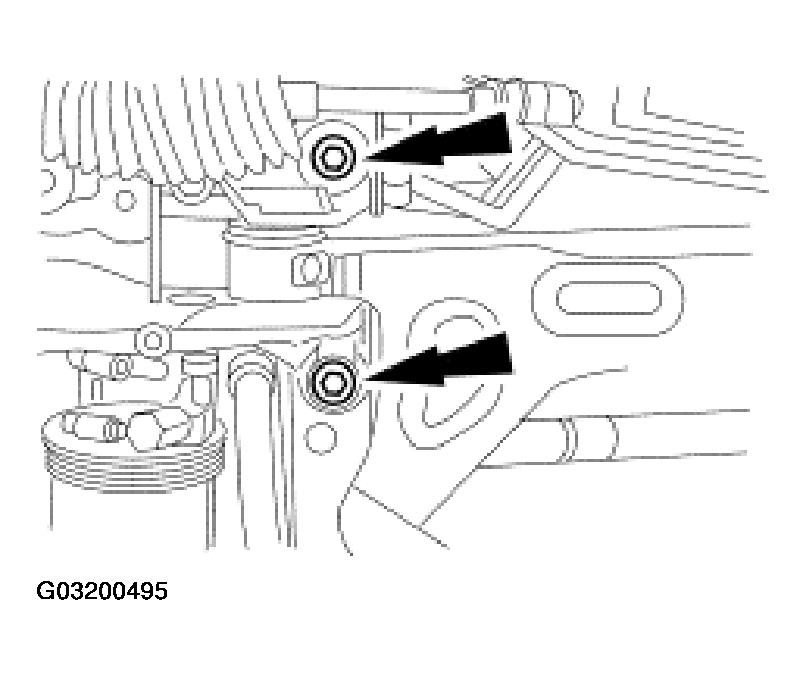

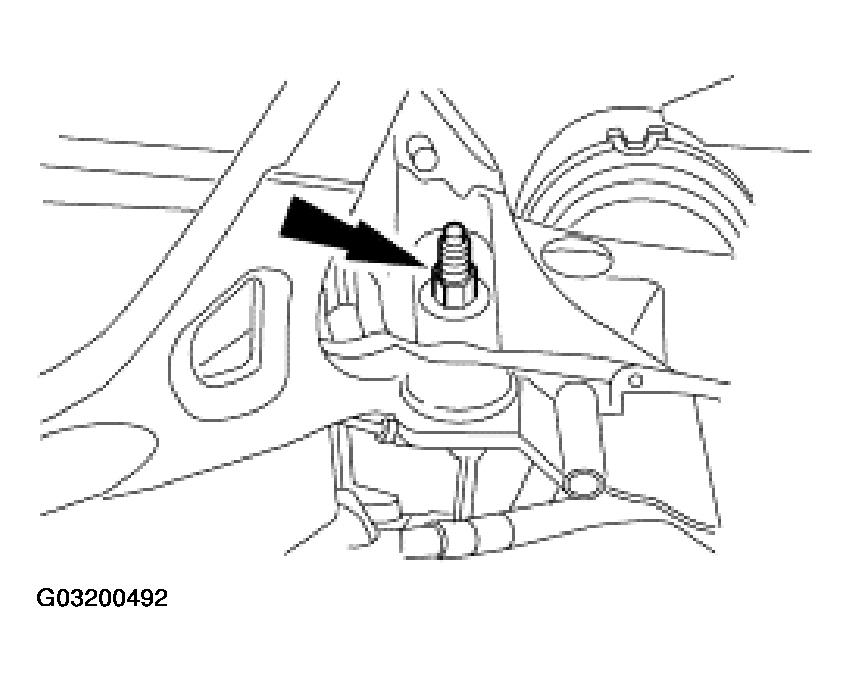

Fig 7: Removing LH And RH Engine Mount Nuts
Courtesy of FORD MOTOR CO.
4. Remove the LH and RH engine mount nuts.
5. Remove the LH subframe bolts.

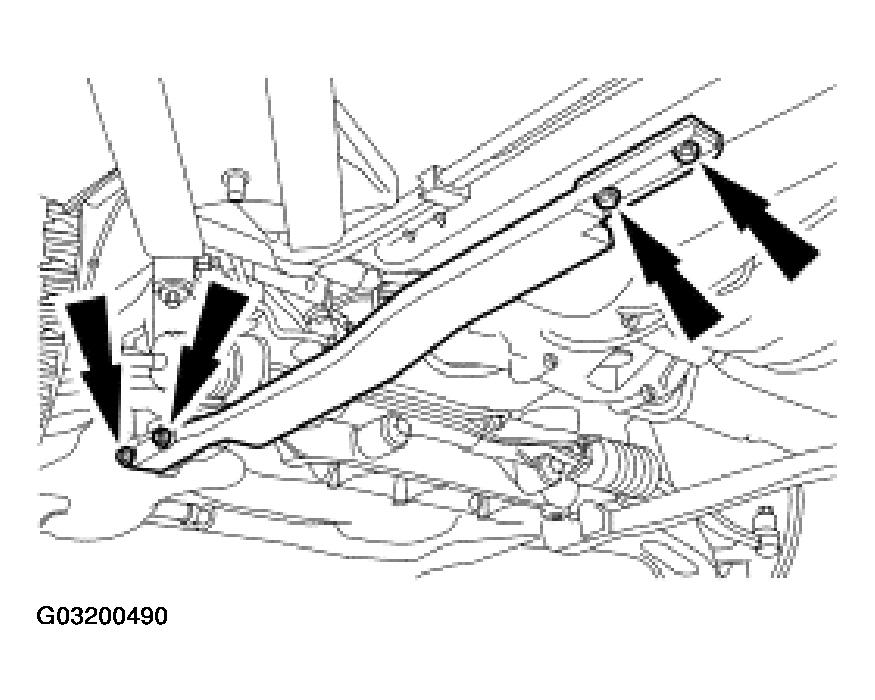

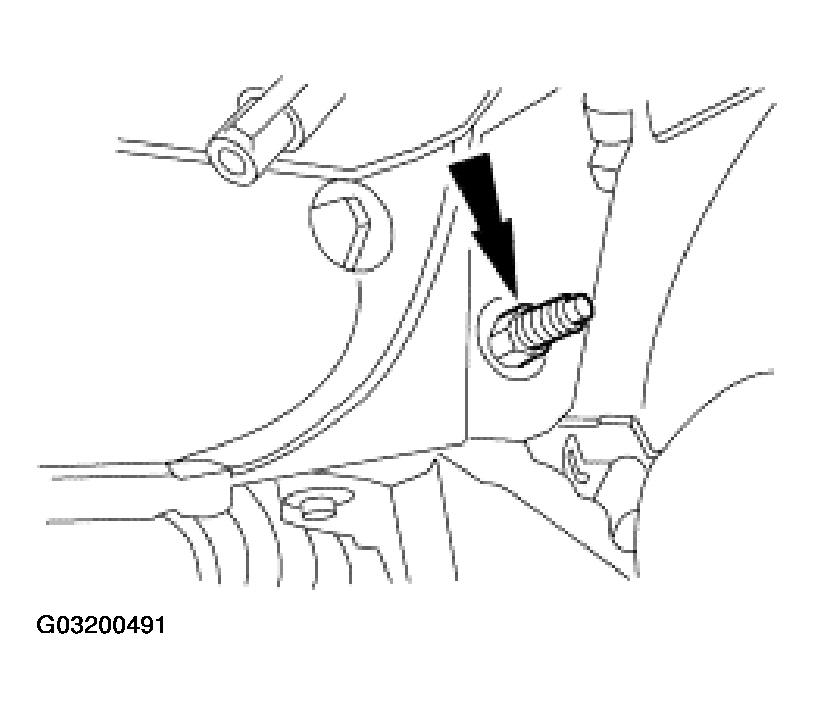

   Fig 8: Removing LH Subframe Bolts

   Courtesy of FORD MOTOR CO.
6. Remove the RH subframe bolts.
   Fig 9: Removing RH Subframe Bolts

   Courtesy of FORD MOTOR CO.
7. Gently pry the subframe down and remove the oil pan.
   Fig 10: Removing Oil Pan

   Courtesy of FORD MOTOR CO.

Item 5: Oil Pan Gasket Removal Note

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of gasket material.
1. Discard the oil pan gasket.

Items 9 and 10: Oil Pump and Bolts Removal Note

1. Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS  in this section.

Items 9 and 10: Oil Pump and Bolts Installation Note

1. Install the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS  in this section.

Items 3, 4, and 5: Oil Pan Fasteners, Oil Pan, and Oil Pan Gasket Installation Note

CAUTION: The oil pan must be installed and the bolts tightened within four minutes of the sealant application.

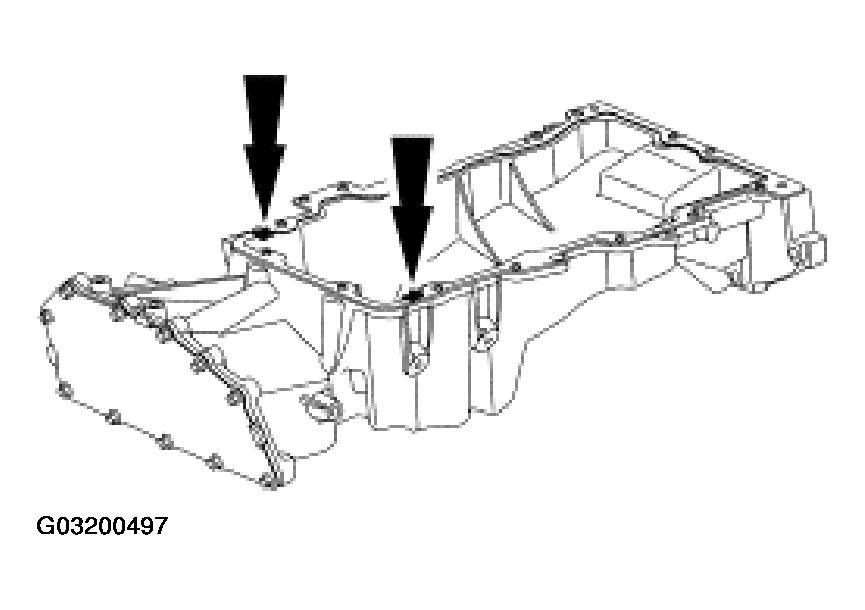

Fig 11: Applying Silicone Gasket And Sealant To Oil Pan Gasket
Courtesy of FORD MOTOR CO.
1. Apply a 10 mm (0.40 in) dot of silicone gasket and sealant to the oil pan gasket in the indicated positions.
2. Gently pry the subframe down and install the oil pan.
   Fig 12: Installing Oil Pan

   Courtesy of FORD MOTOR CO.
NOTE: Fasteners No. 4 and No. 9 are studs.

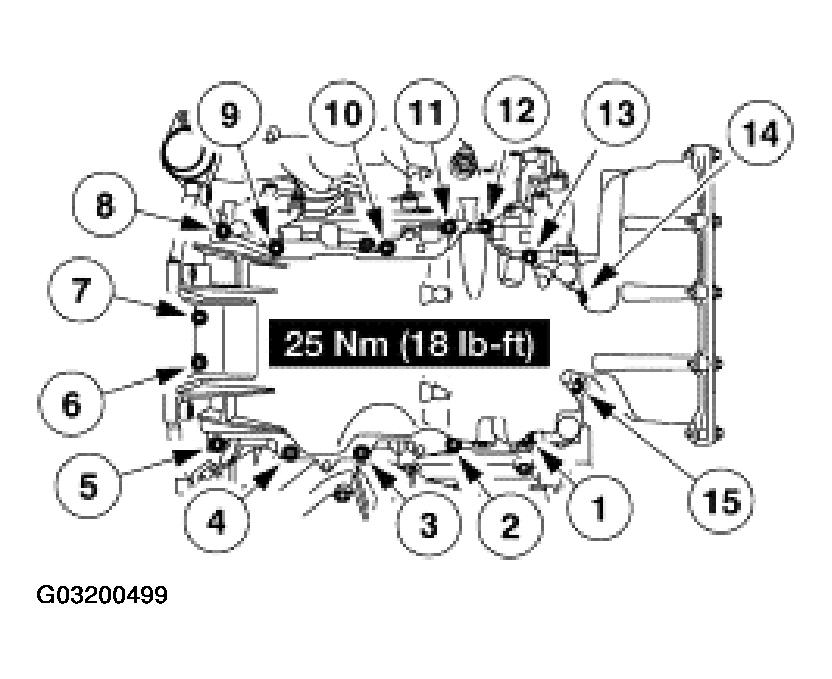

Fig 13: Oil Pan Studs And Bolts Tightening Sequence
Courtesy of FORD MOTOR CO.
3. Position the oil pan and install the studs and bolts.
   • Tighten the bolts in the sequence shown. See Fig 13.
4. Install the RH subframe bolts.

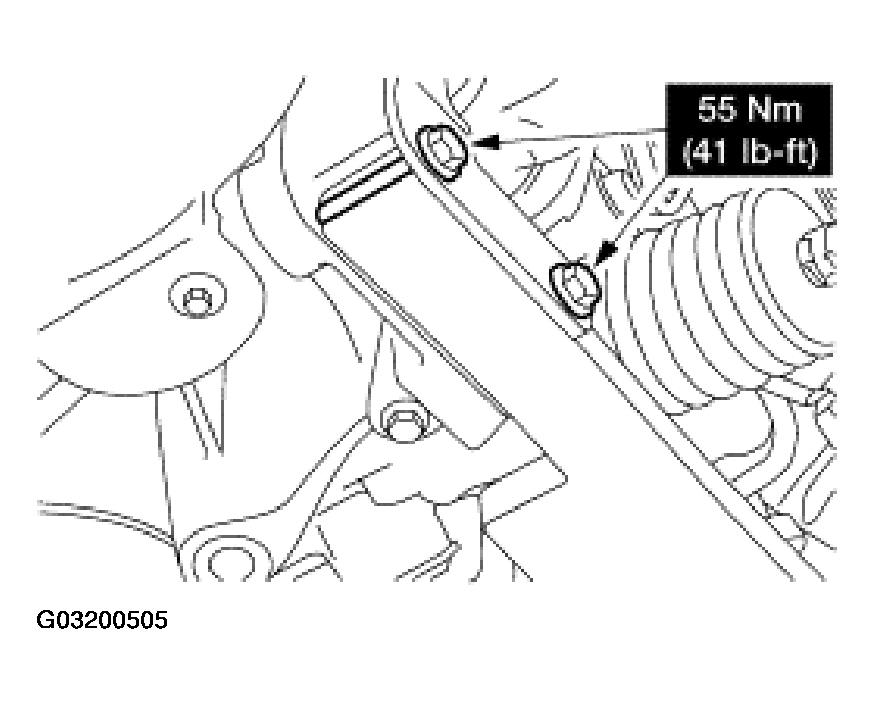

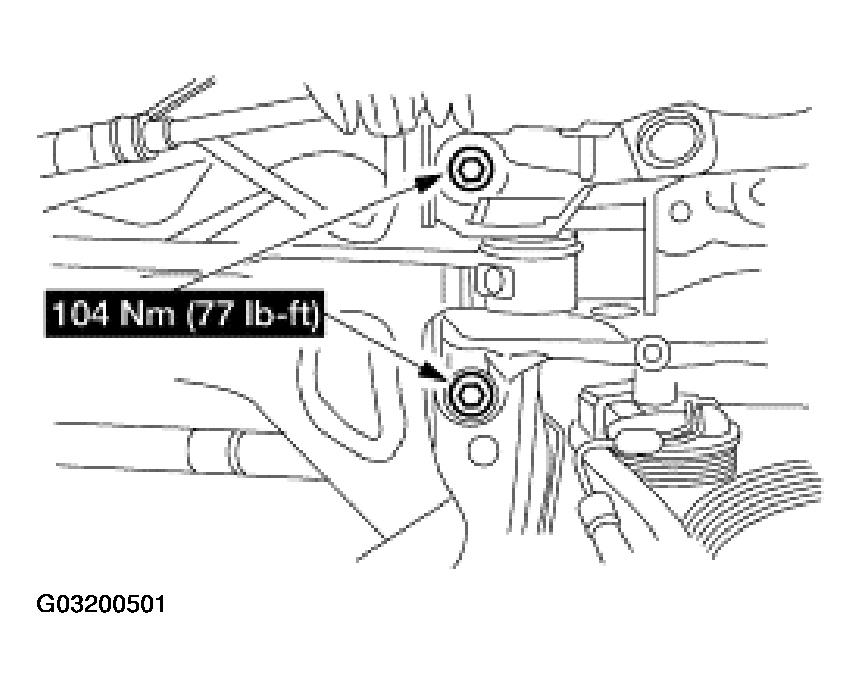

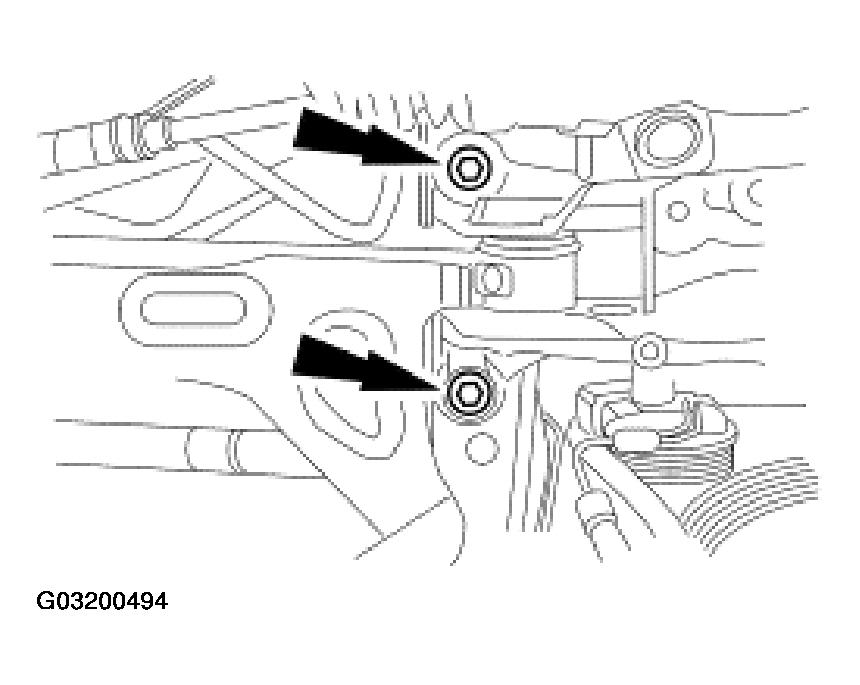

   Fig 14: Installing RH Subframe Bolts

   Courtesy of FORD MOTOR CO.
5. Install the LH subframe bolts.
   Fig 15: Installing LH Subframe Bolts

   Courtesy of FORD MOTOR CO.
NOTE: LH shown; RH similar.

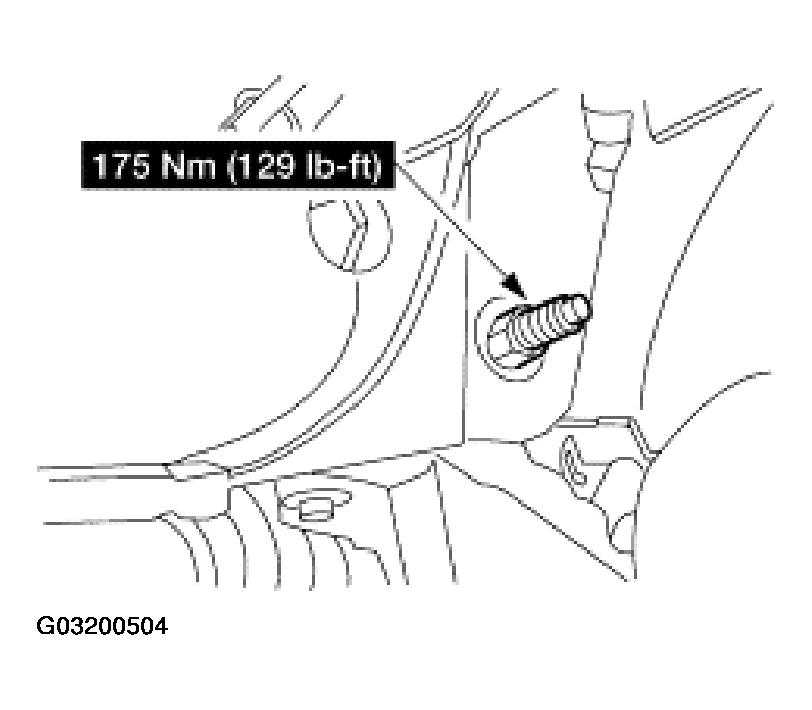

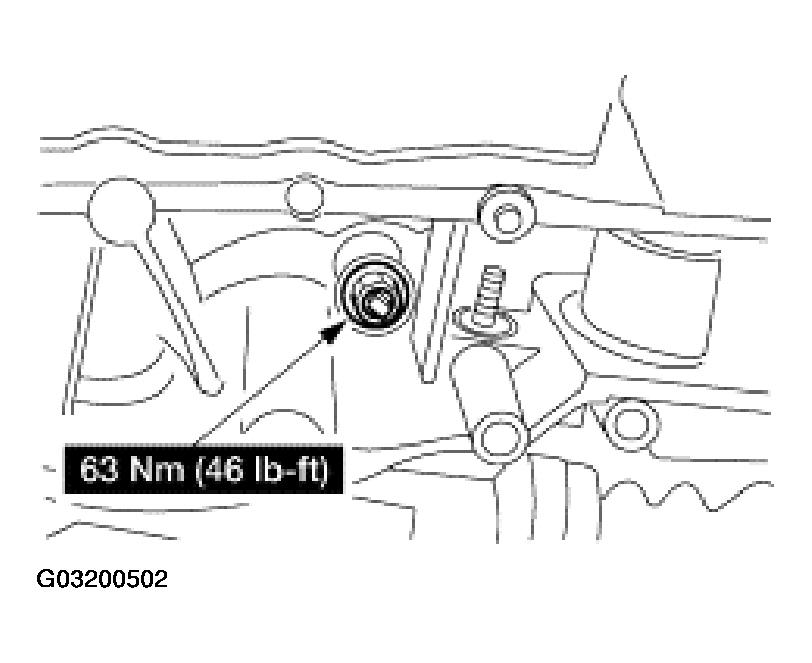

Fig 16: Installing LH And RH Engine Mount Nuts
Courtesy of FORD MOTOR CO.
6. Install the LH and RH engine mount nuts.
7. Install the RH lower control arm through-bolt.

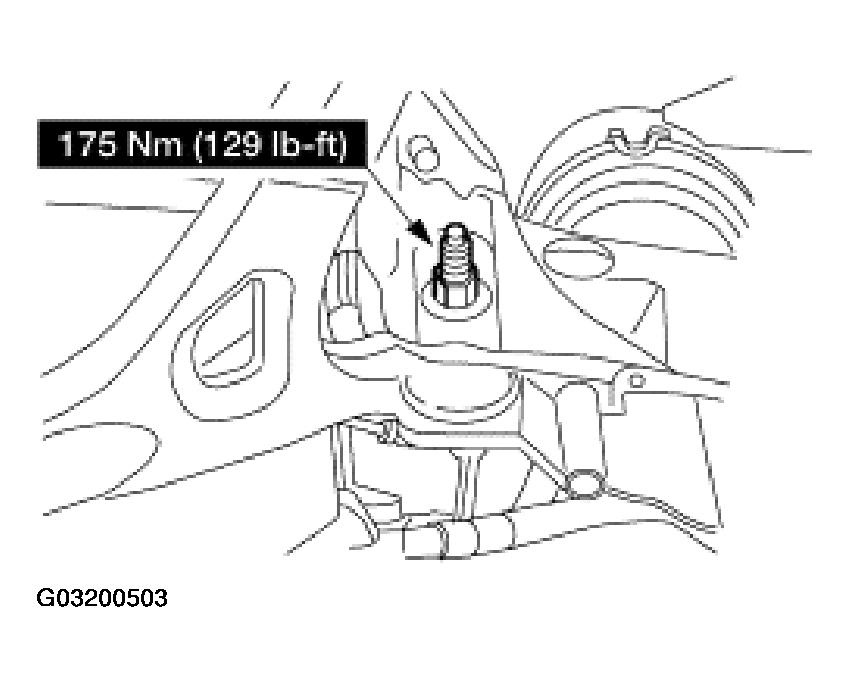

   Fig 17: Installing RH Lower Control Arm Through-Bolt

   Courtesy of FORD MOTOR CO.
8. Install the LH lower control arm through-bolt.
   Fig 18: Installing LH Lower Control Arm Through-Bolt

   Courtesy of FORD MOTOR CO.

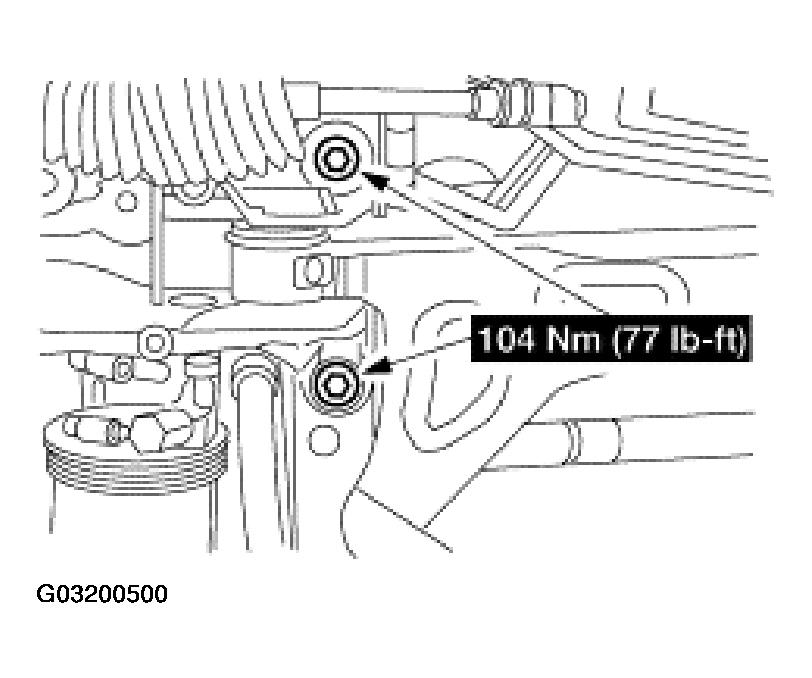

9. Install the eight bolts and the two front I-braces.
   Fig 19: Installing I-Braces Clamping Bolts

   Courtesy of FORD MOTOR CO.
