Removal & Installation

WARNING: This page is about a different car, the 2004 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

Remove pads. See REAR CALIPER PADS .
Remove caliper support bracket bolts. See Figure and Fig 1 .
Remove and discard push-nuts, if equipped. Remove rotor.
To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS .

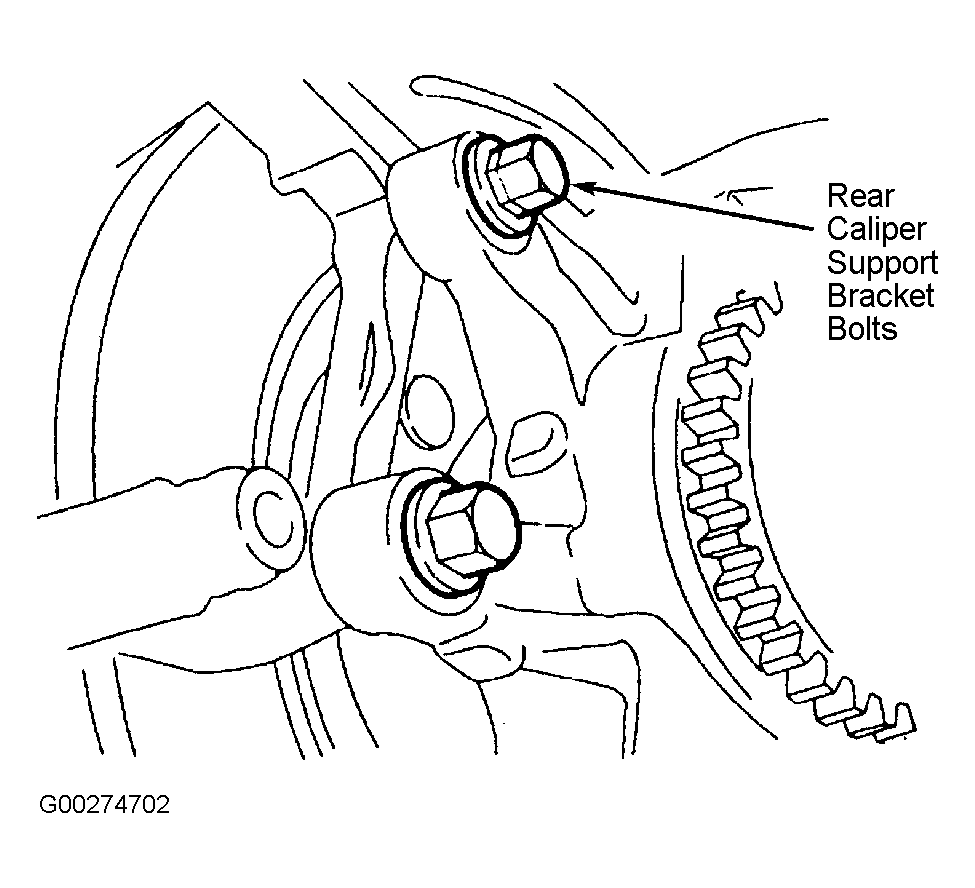

Fig 1: Identifying Rear Caliper Support Bracket Bolt

Courtesy of FORD MOTOR CO.
