Rear Brake Caliper: Reassembly

WARNING: This page is about a different car, the 2004 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

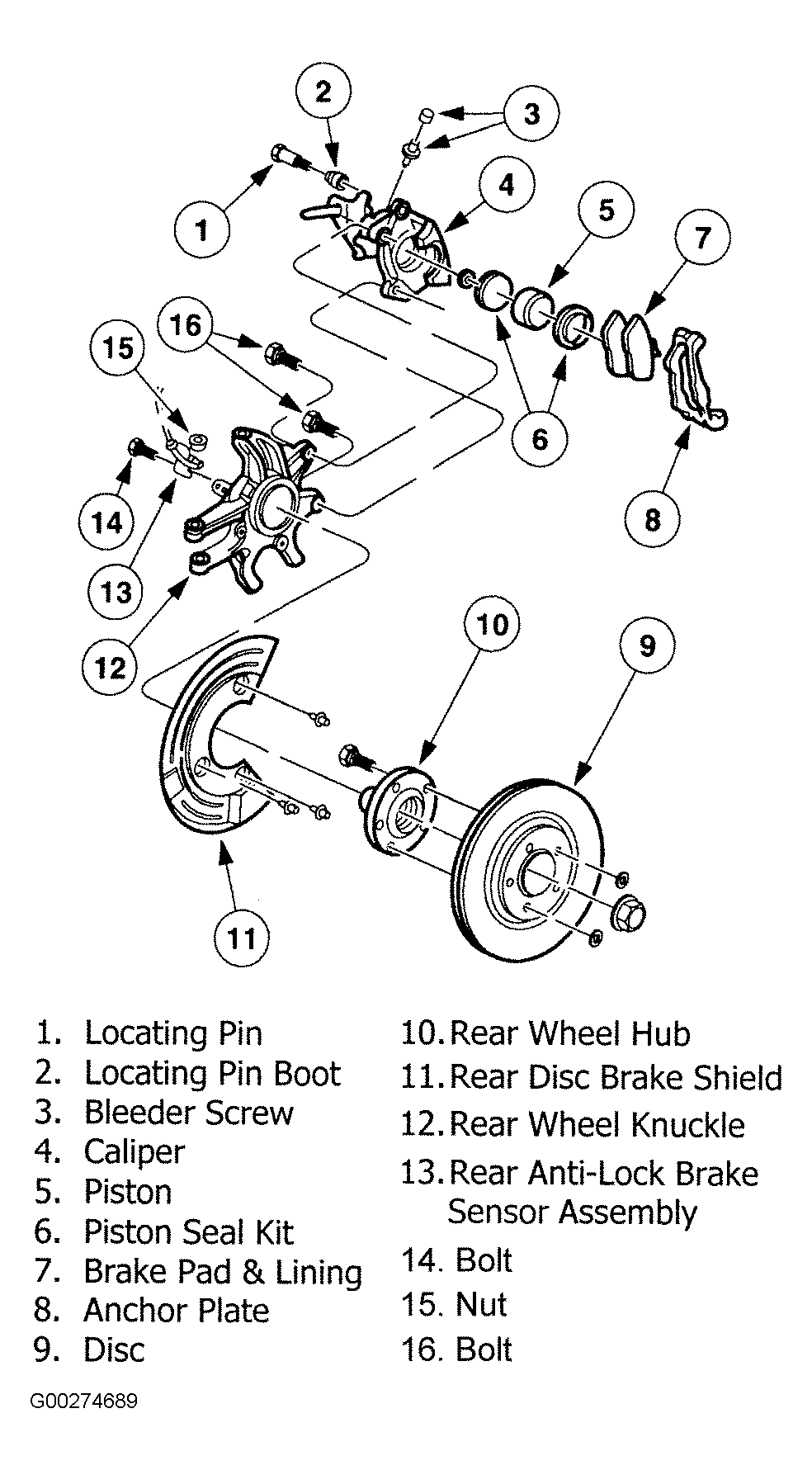

Lubricate piston, seal and bore with clean brake fluid. To reassemble, reverse disassembly procedure. See Figure .
