Brake Master Cylinder and Brake Booster

1. Remove the parts in the order indicated in the following illustration and table.

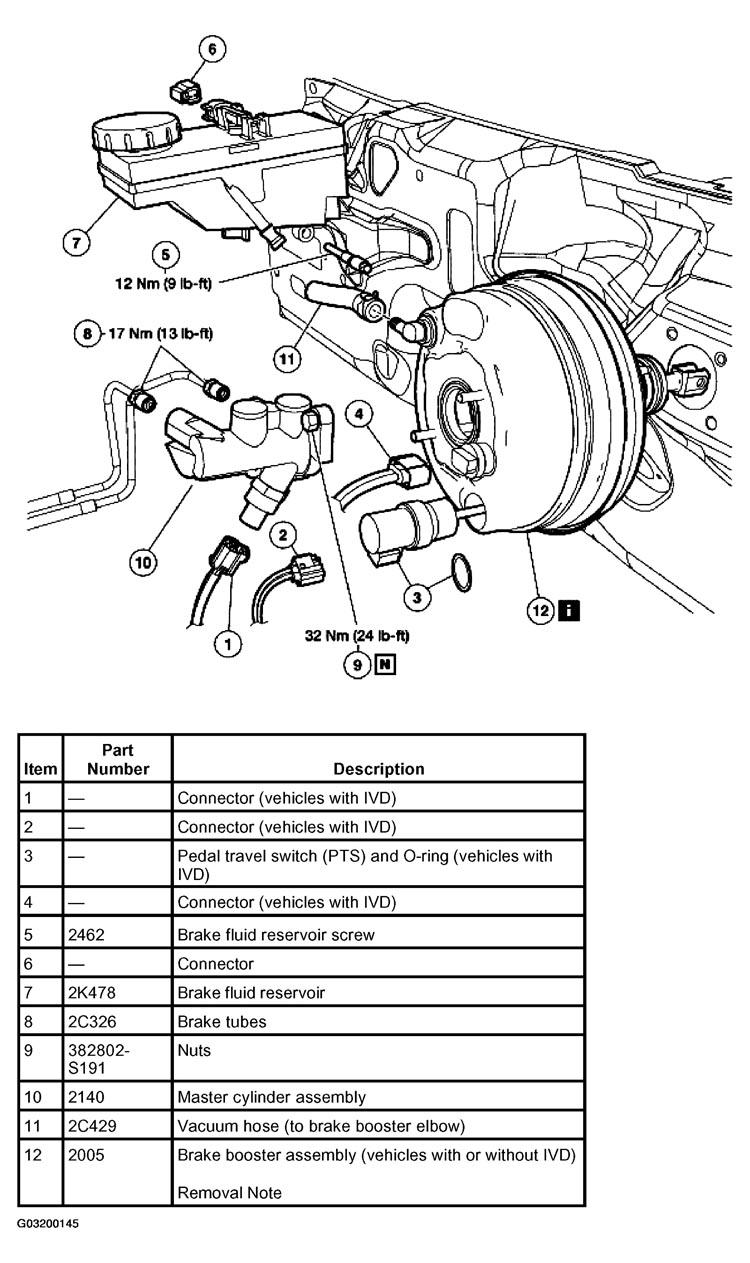

   Fig 1: Removing Brake Master Cylinder And Brake Booster

   Courtesy of FORD MOTOR CO.
2. To install, reverse the removal procedure.

Item 12: Brake Booster Assembly Removal Note

1. Remove the vapor management valve (VMV) and bracket assembly and position it aside.

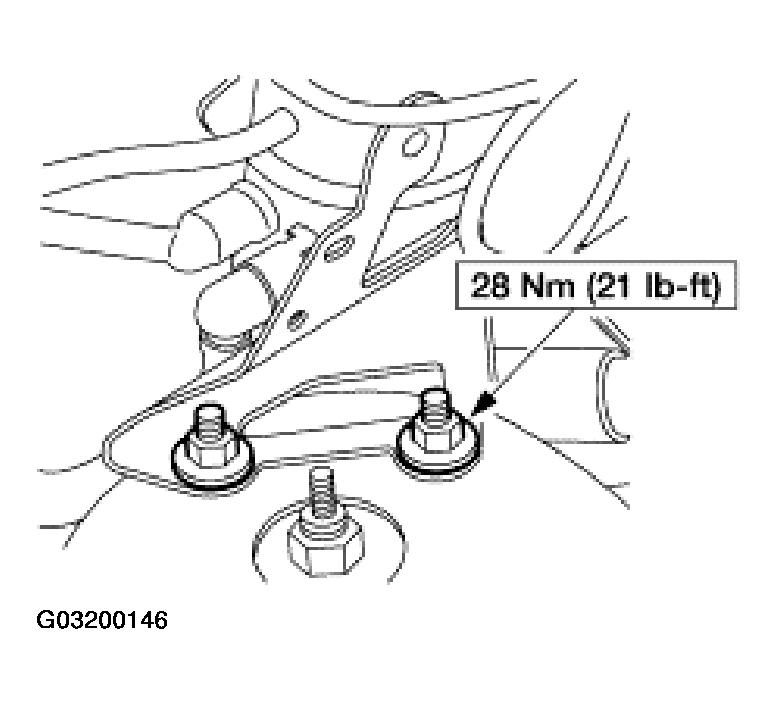

   Fig 2: Removing Vapor Management Valve And Bracket Assembly

   Courtesy of FORD MOTOR CO.
2. Remove the wiper arm nuts and remove wiper arms.

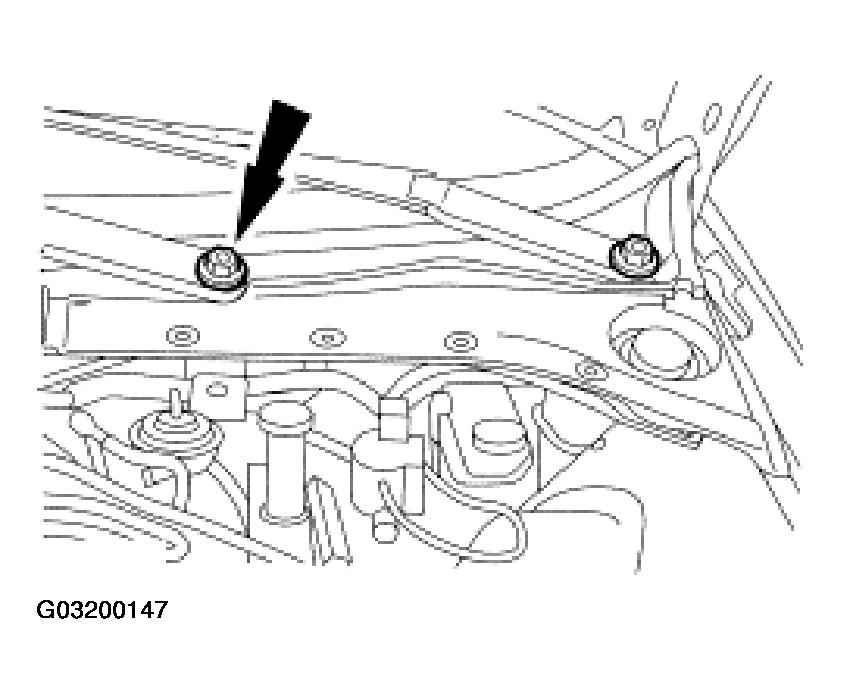

   Fig 3: Removing Wiper Arm Nuts And Wiper Arm

   Courtesy of FORD MOTOR CO.
3. Disconnect the washer hose.

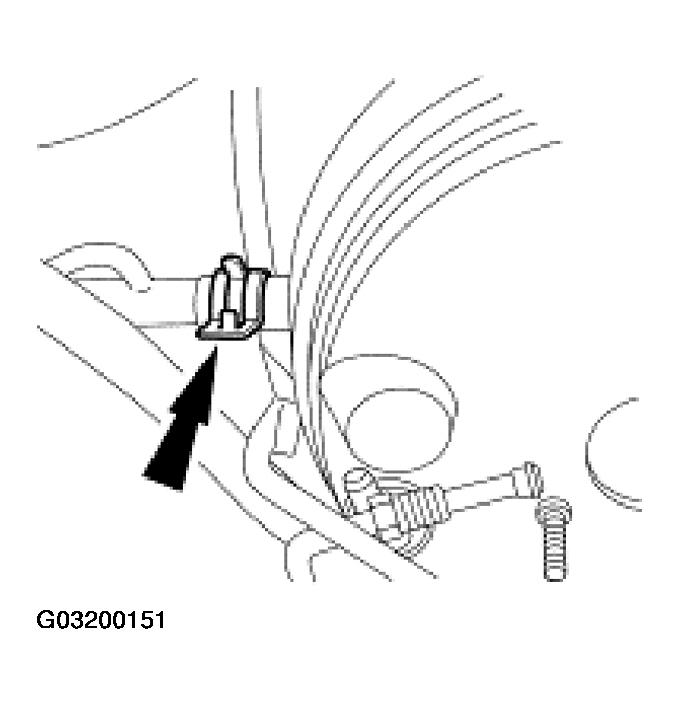

   Fig 4: Disconnecting Washer Hose

   Courtesy of FORD MOTOR CO.
4. Remove the cowl cover.
   1. Remove the cowl cover pushpins.
   2. Remove the cowl cover rubber trim.
   3. Remove the cowl cover.

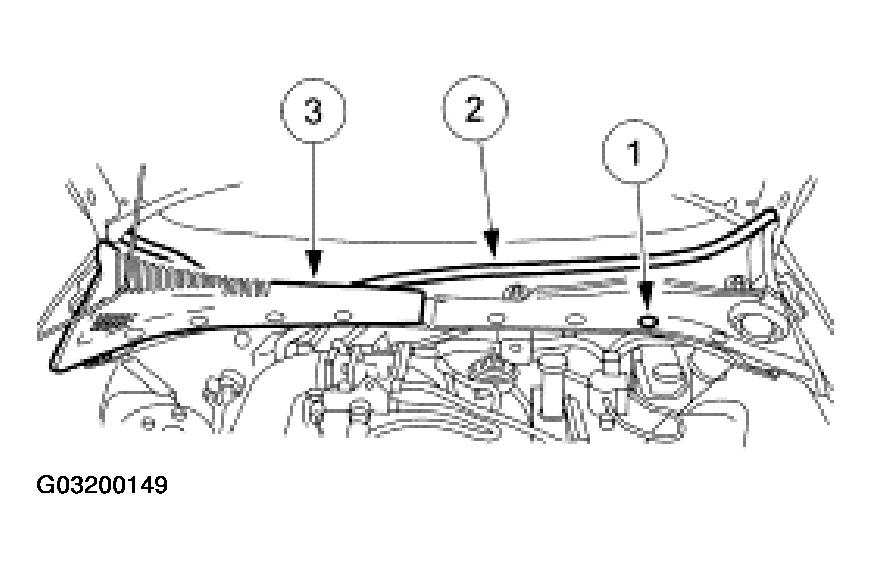

   Fig 5: Removing Cowl Cover

   Courtesy of FORD MOTOR CO.

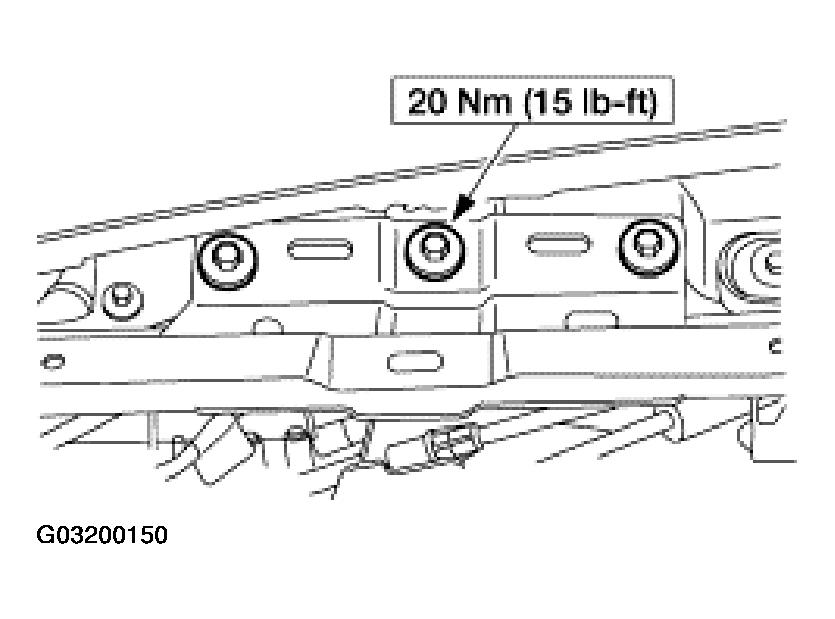

5. Remove the cowl brace center bolts. Remove the cowl brace end bolts and the bracket.
   Fig 6: Removing Cowl Brace End Bolts And Bracket

   Courtesy of FORD MOTOR CO.

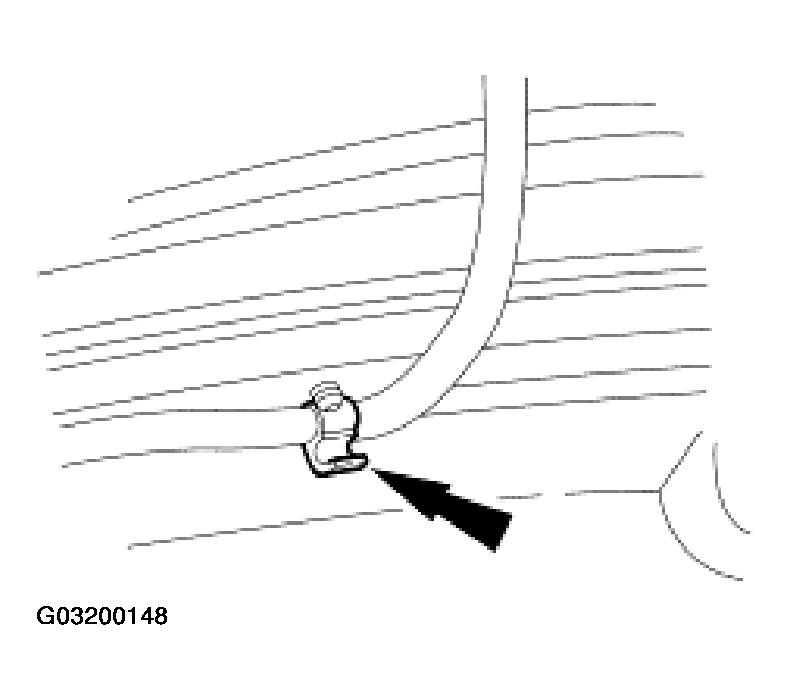

6. Disconnect the coolant reservoir return hose.
   Fig 7: Disconnecting Coolant Reservoir Return Hose

   Courtesy of FORD MOTOR CO.

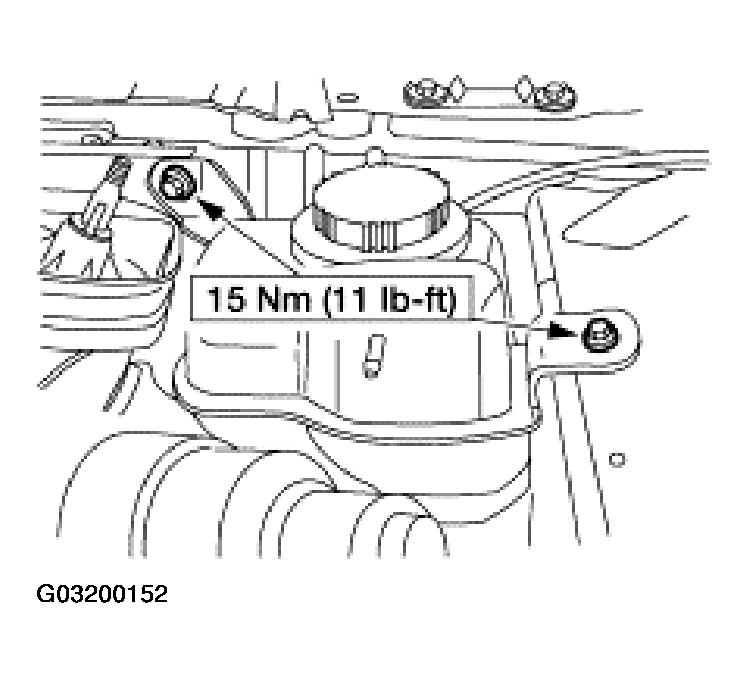

7. Remove the coolant reservoir bolts.
   Fig 8: Removing Coolant Reservoir Bolts

   Courtesy of FORD MOTOR CO.

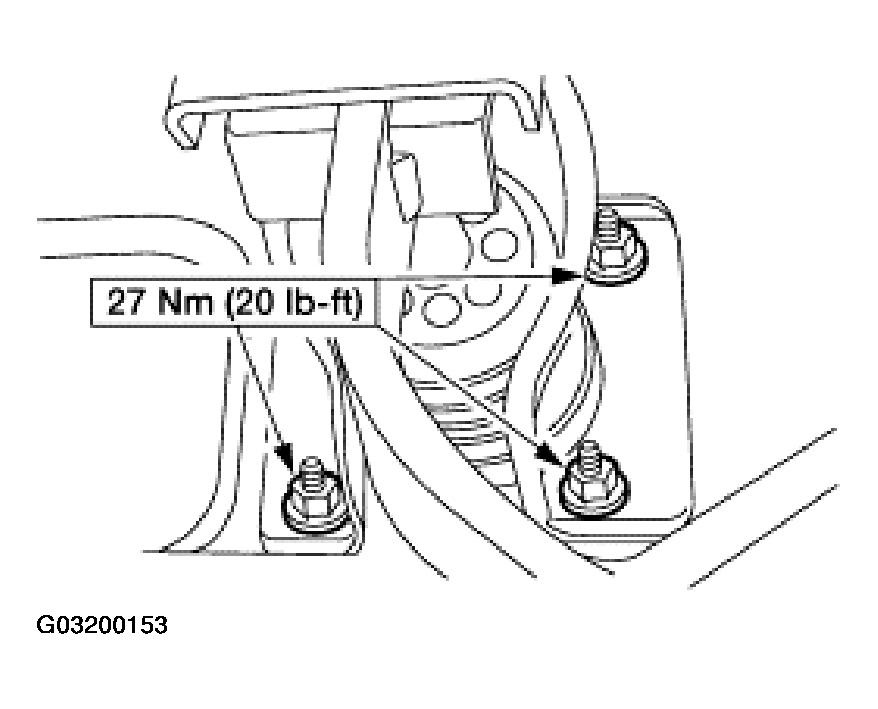

8. Remove and discard the brake booster-to-brake pedal bracket nuts.
   Fig 9: Removing Brake Booster-To-Brake Pedal Bracket Nuts

   Courtesy of FORD MOTOR CO.
9. Disconnect the brake pedal pin from the brake booster input shaft.
   1. Remove the brake pedal pin clip.
   2. Disconnect the booster input shaft from the brake pedal pin.
