Removal And Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the nuts.

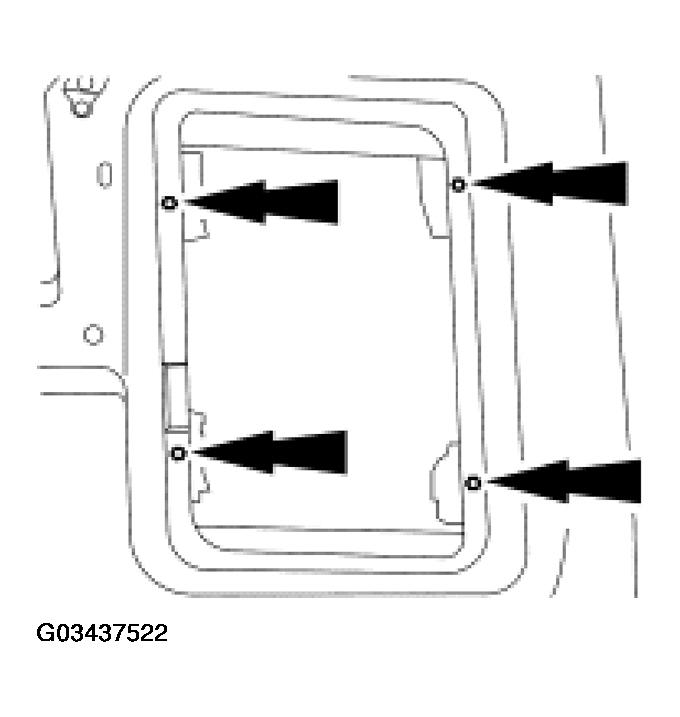

    Fig 1: Removing Window Glass Nuts
    G03437522Courtesy of FORD MOTOR CO.
  3. Remove the quarter window glass.
    • Cut the adhesive from around the window.
    4. NOTE: Clean the area around the quarter window glass prior to installation.

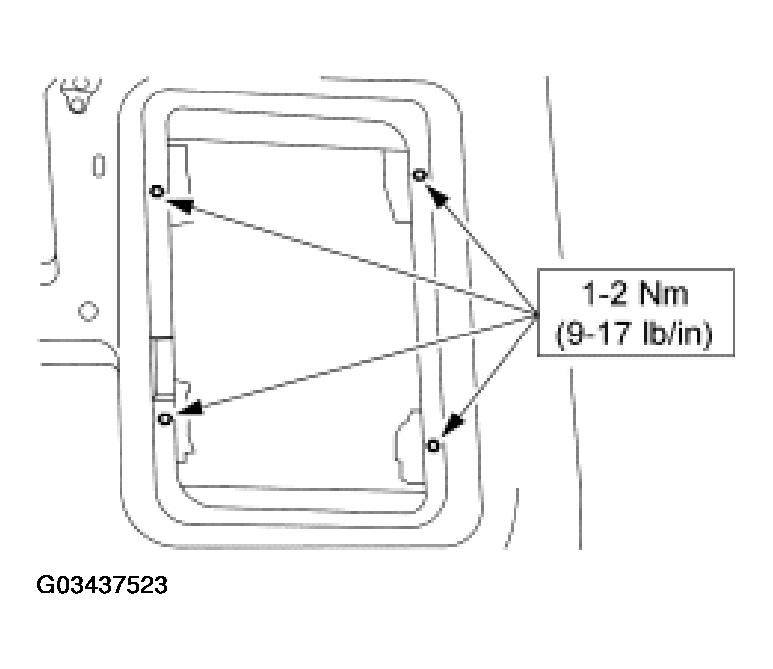

    Fig 2: Installing Window Glass Nuts
    G03437523Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
    • Apply Urethane Adhesive Essex U-216 or Essex 400-HV meeting Ford specification WSB-M2G316-B to the window.
    • Test the quarter window glass for water leaks.
