Removal And Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the scuff plate.
1. Remove the screws.
2. Remove the scuff plate.
Fig 1: Removing Screws And Scuff Plate
Courtesy of FORD MOTOR CO.
If equipped, remove the windshield side garnish moulding passenger assist handle bolt covers.

Fig 2: Removing Windshield Side Garnish Moulding Passenger Assist Handle Bolt Covers
Courtesy of FORD MOTOR CO.
If equipped, remove the windshield side garnish moulding passenger assist handles.
1. Remove the bolts.
2. Remove the passenger assist handles.
Fig 3: Removing Passenger Assist Handles
Courtesy of FORD MOTOR CO.
Remove the windshield side garnish moulding.

Fig 4: Removing Windshield Side Garnish Moulding
Courtesy of FORD MOTOR CO.
Remove the rear window garnish moulding.
1. Remove the screws.
2. Remove the rear window garnish moulding.
Fig 5: Removing Rear Window Garnish Moulding
Courtesy of FORD MOTOR CO.

NOTE: If the safety belt guide cover is damaged or if it does not remain closed, install a new cover.

NOTE: Safety belt guide cover shown removed for clarity.

Fig 6: Releasing Retaining Tab And Open Cover

Courtesy of FORD MOTOR CO.

From behind the front safety belt guide cover, release the retaining tab and open the cover.
Remove the bolt and safety belt guide.

Fig 7: Removing Bolt And Safety Belt Guide
Courtesy of FORD MOTOR CO.
Remove the safety belt anchor bolt and safety belt anchor.

Fig 8: Removing Bolt And Anchor
Courtesy of FORD MOTOR CO.

NOTE: The quarter window glass must be open to carry out this step.

Fig 9: Removing Two Screws

Courtesy of FORD MOTOR CO.

If equipped with moveable quarter window glass, remove the two screws attaching the quarter window latch.

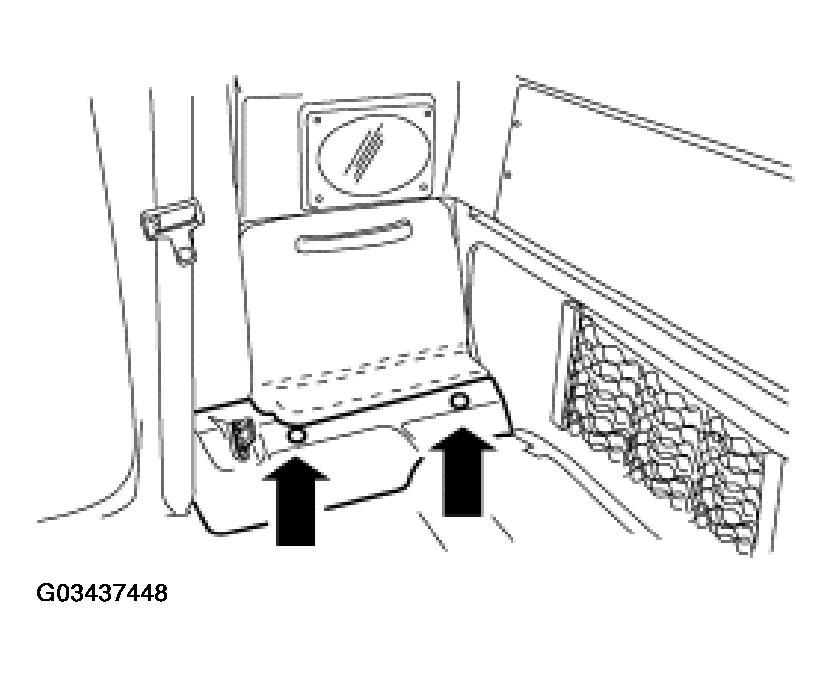

Remove the pin-type retainers and lower rear trim panel.

Fig 10: Removing Pin-Type Retainers And Lower Rear Trim Panel
Courtesy of FORD MOTOR CO.

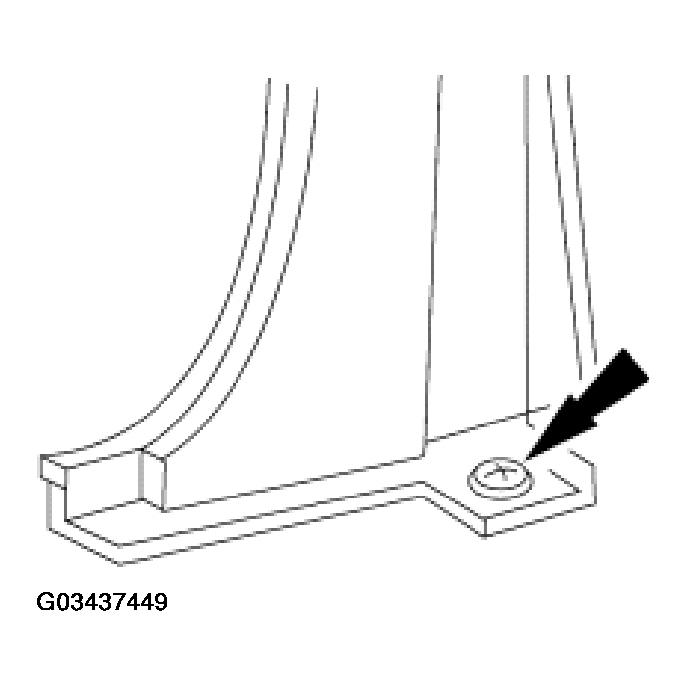

Remove the quarter trim panel to floor screw.

Fig 11: Removing Quarter Trim Panel To Floor Screw
Courtesy of FORD MOTOR CO.
Open the rear seat.

Fig 12: Opening Rear Seat
Courtesy of FORD MOTOR CO.
Remove the quarter trim panel pin-type retainers.

Fig 13: Removing Quarter Trim Panel Pin-Type Retainers
Courtesy of FORD MOTOR CO.
Disconnect the radio speaker electrical connector.

Fig 14: Disconnecting Radio Speaker Electrical Connector
Courtesy of FORD MOTOR CO.

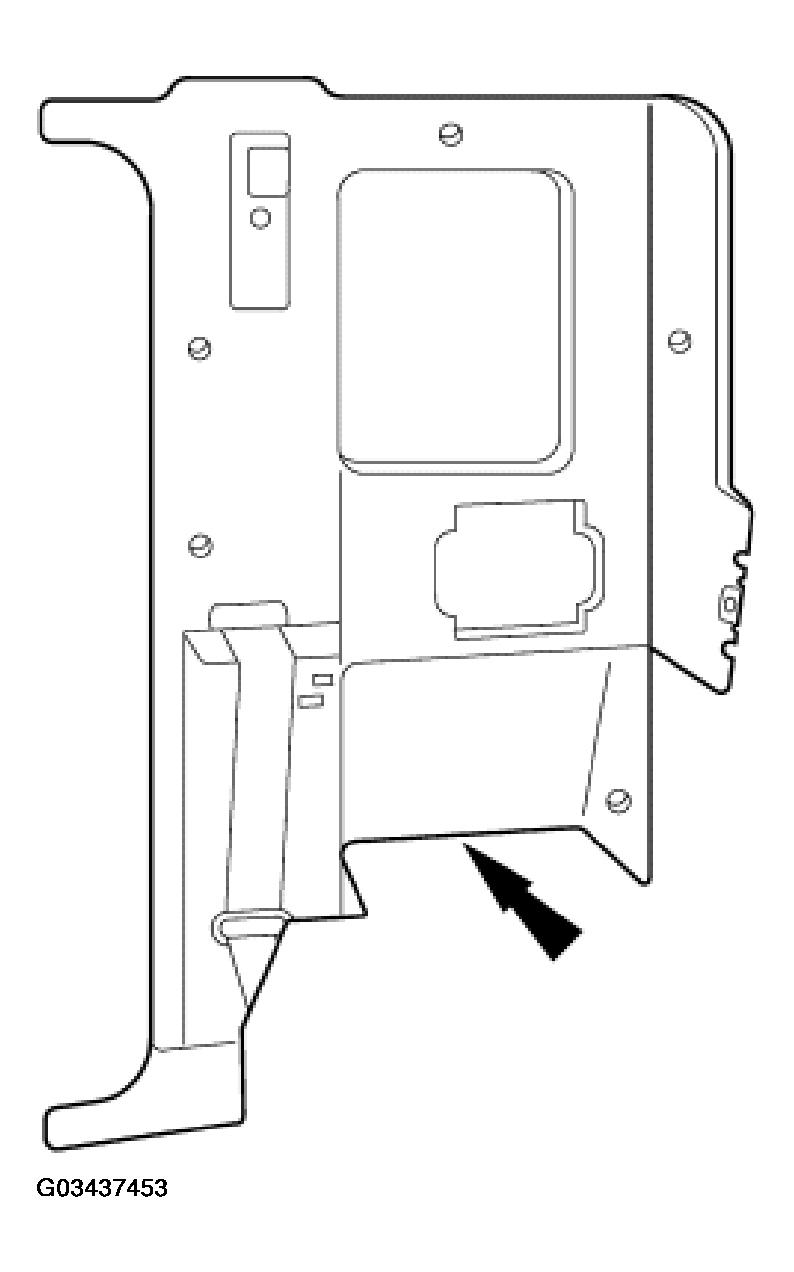

Remove the quarter trim panel.
- Feed the safety belt webbing through the quarter trim panel.
Fig 15: Removing Quarter Trim Panel
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
