Pinpoint Test F: One Or More Stoplamps Are Inoperative
WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

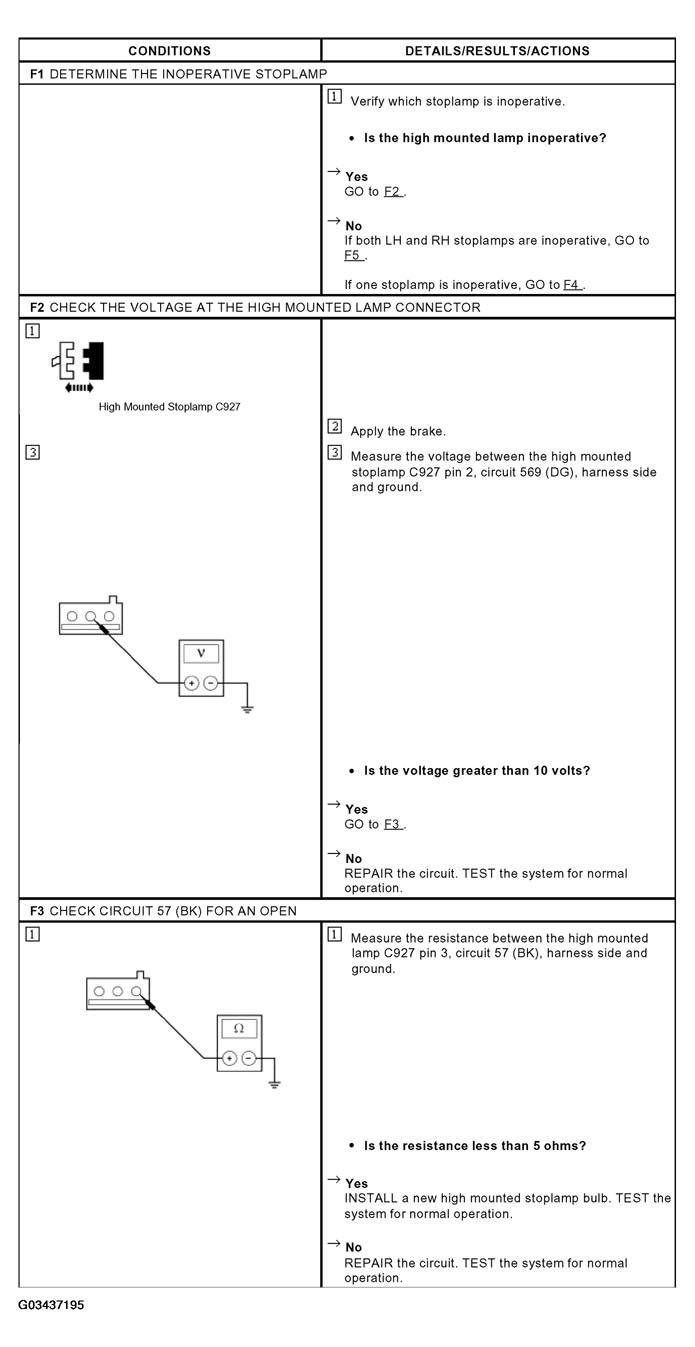

Fig 1: Identifying Pinpoint Test F: One Or More Stoplamps Are Inoperative (F1-F3)
Courtesy of FORD MOTOR CO.

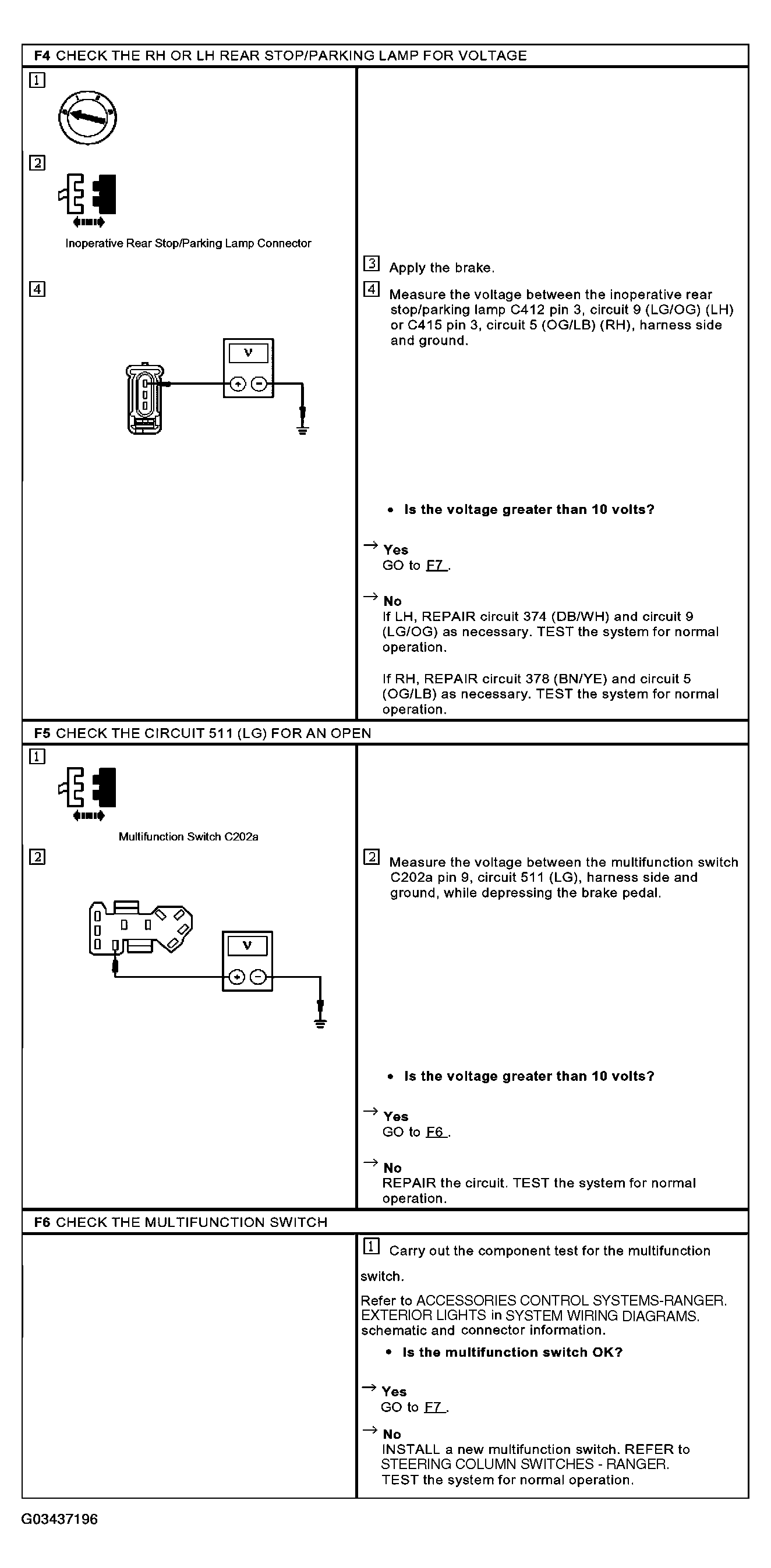

Fig 2: Identifying Pinpoint Test F: One Or More Stoplamps Are Inoperative (F4-F6)
Courtesy of FORD MOTOR CO.

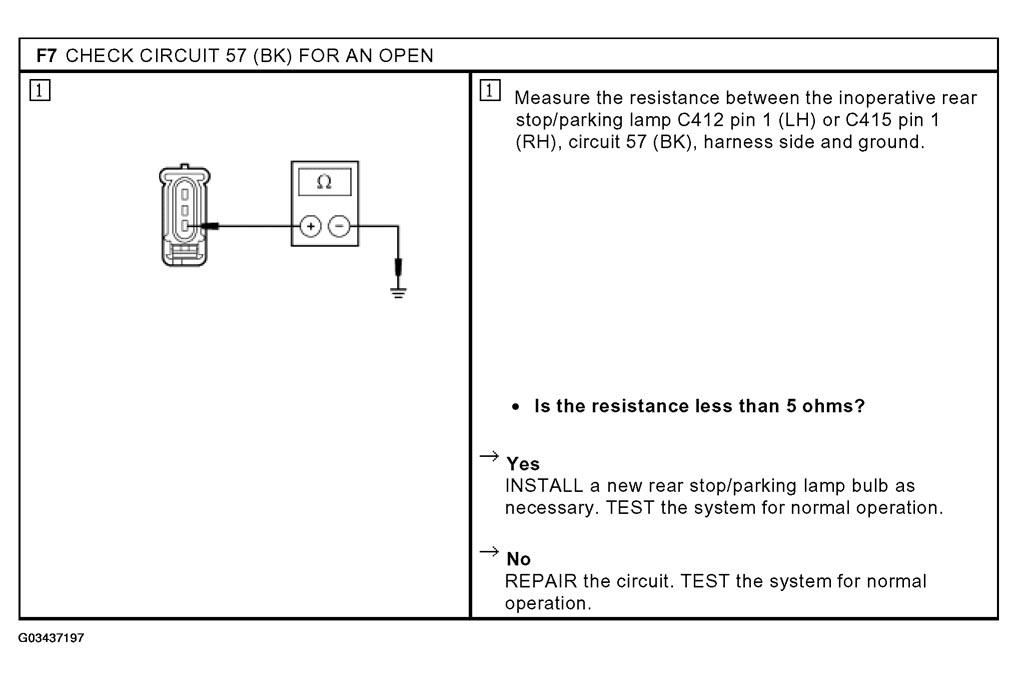

Fig 3: Identifying Pinpoint Test F: One Or More Stoplamps Are Inoperative (F7)
