WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Pinpoint Test N: Fog Lamps Are Inoperative (N1-N3)
Courtesy of FORD MOTOR CO.

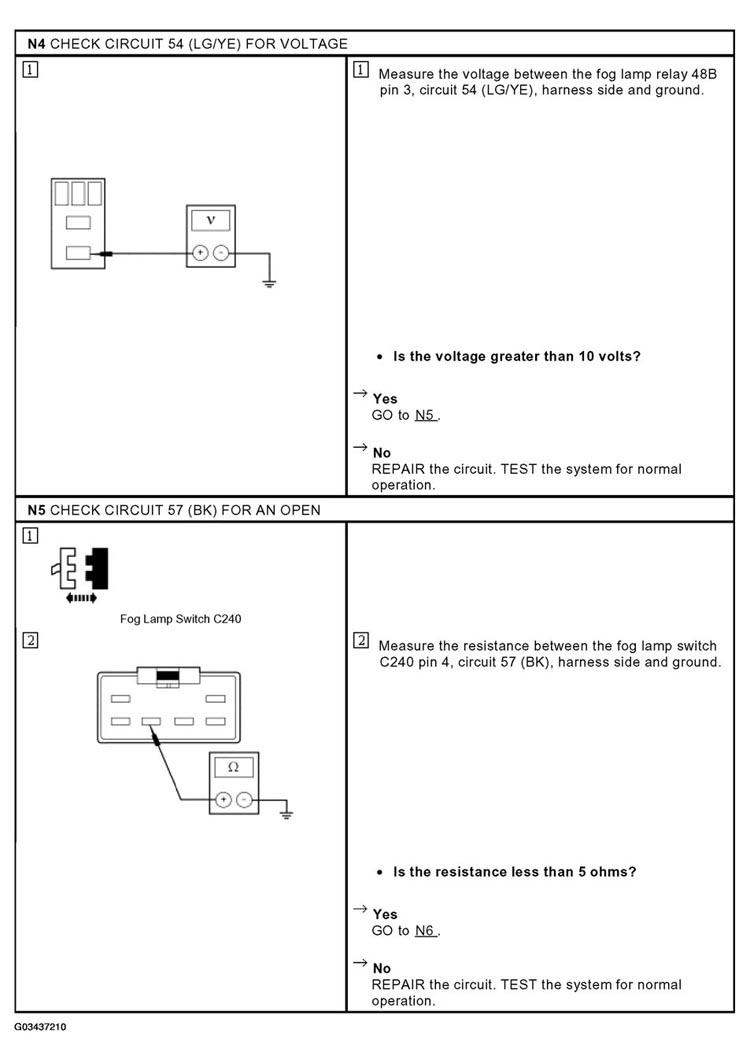

Fig 2: Identifying Pinpoint Test N: Fog Lamps Are Inoperative (N4-N5)
Courtesy of FORD MOTOR CO.

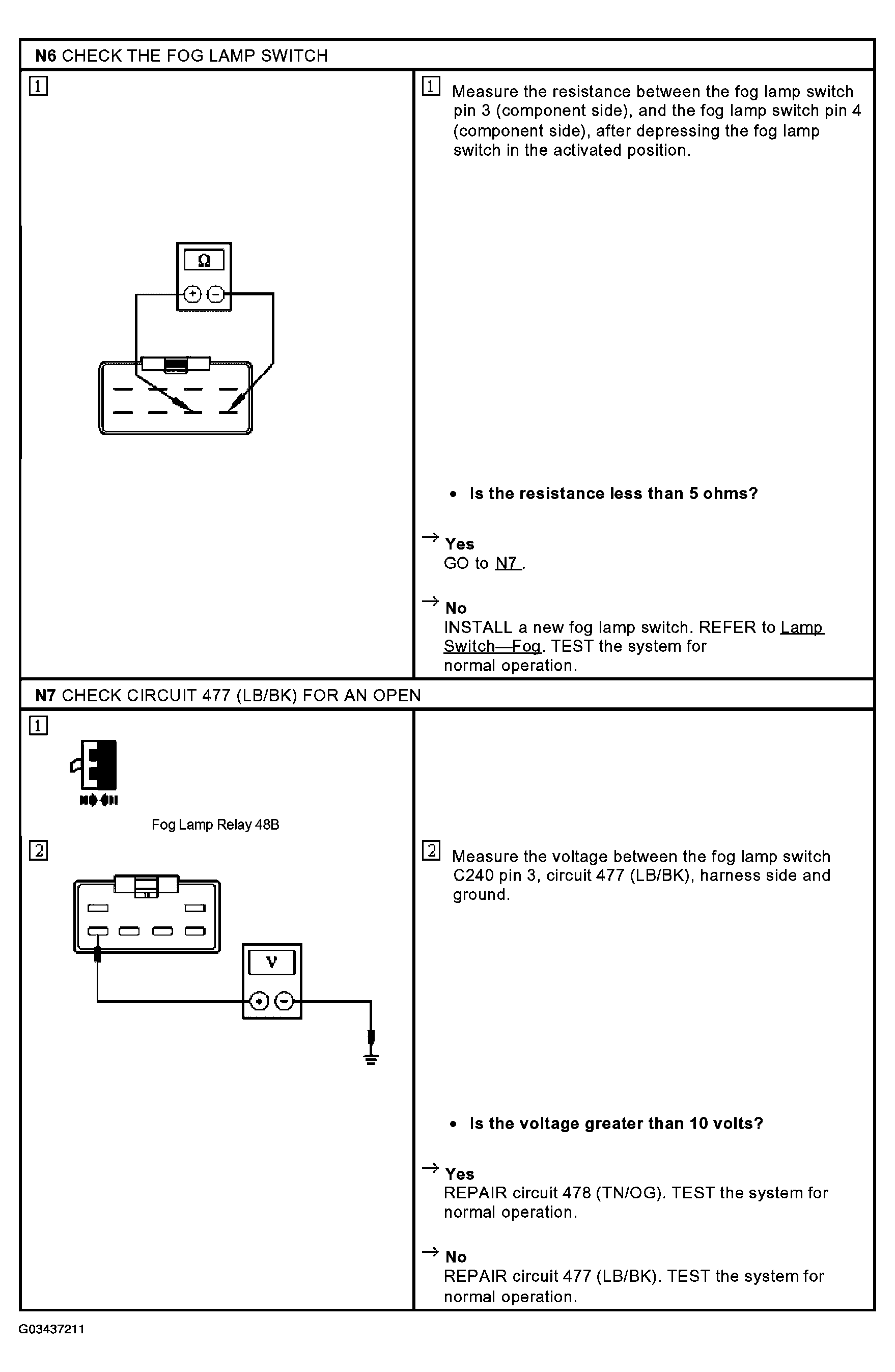

Fig 3: Identifying Pinpoint Test N: Fog Lamps Are Inoperative (N6-N7)
