Diagnostic Procedure

WARNING: This page is about a different car, the 2002 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

For testing procedure, see Fig 1-Fig 5 .

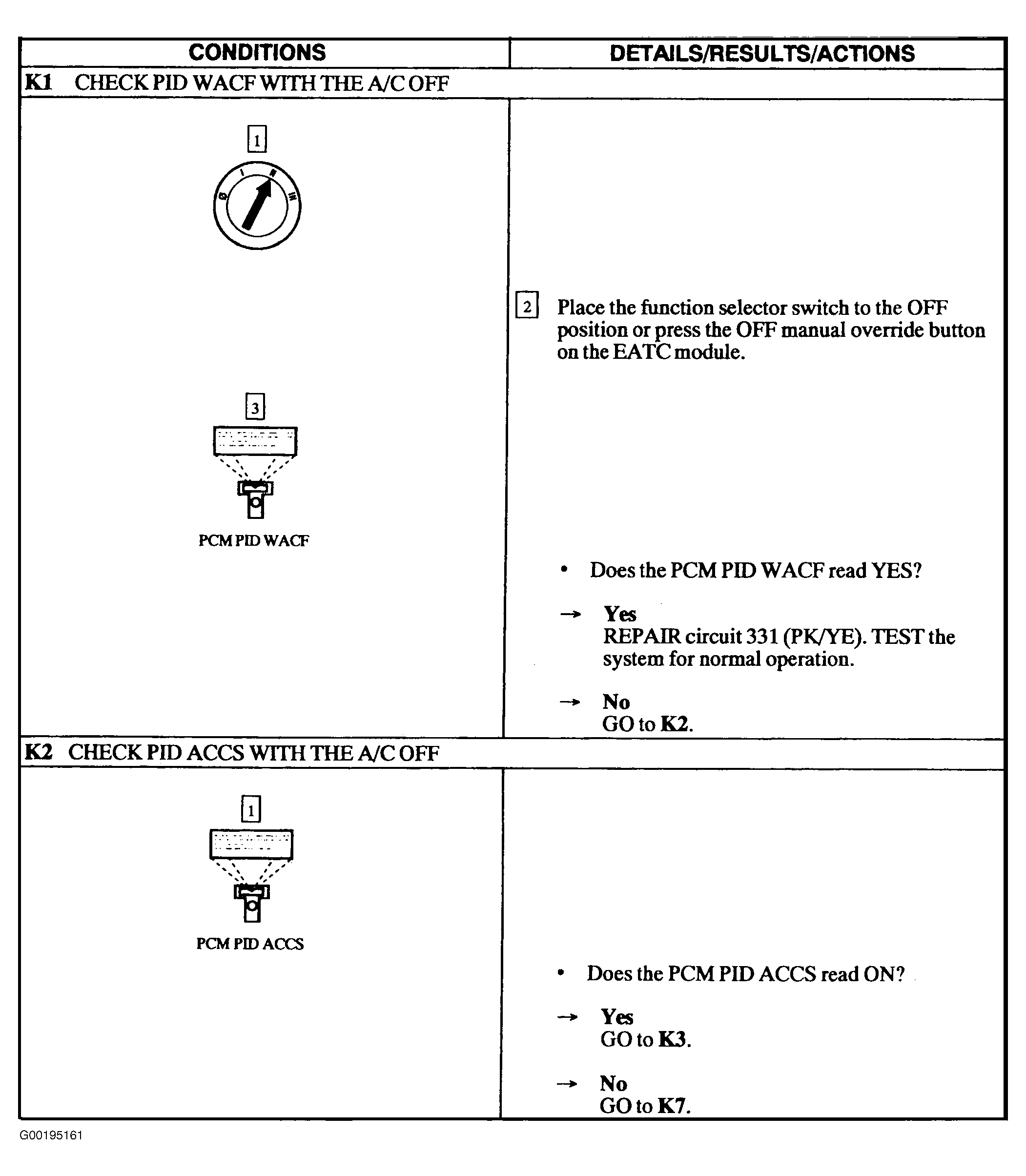

Fig 1: Test K (1 Of 5 - Steps K1-K2)

Courtesy of FORD MOTOR CO.

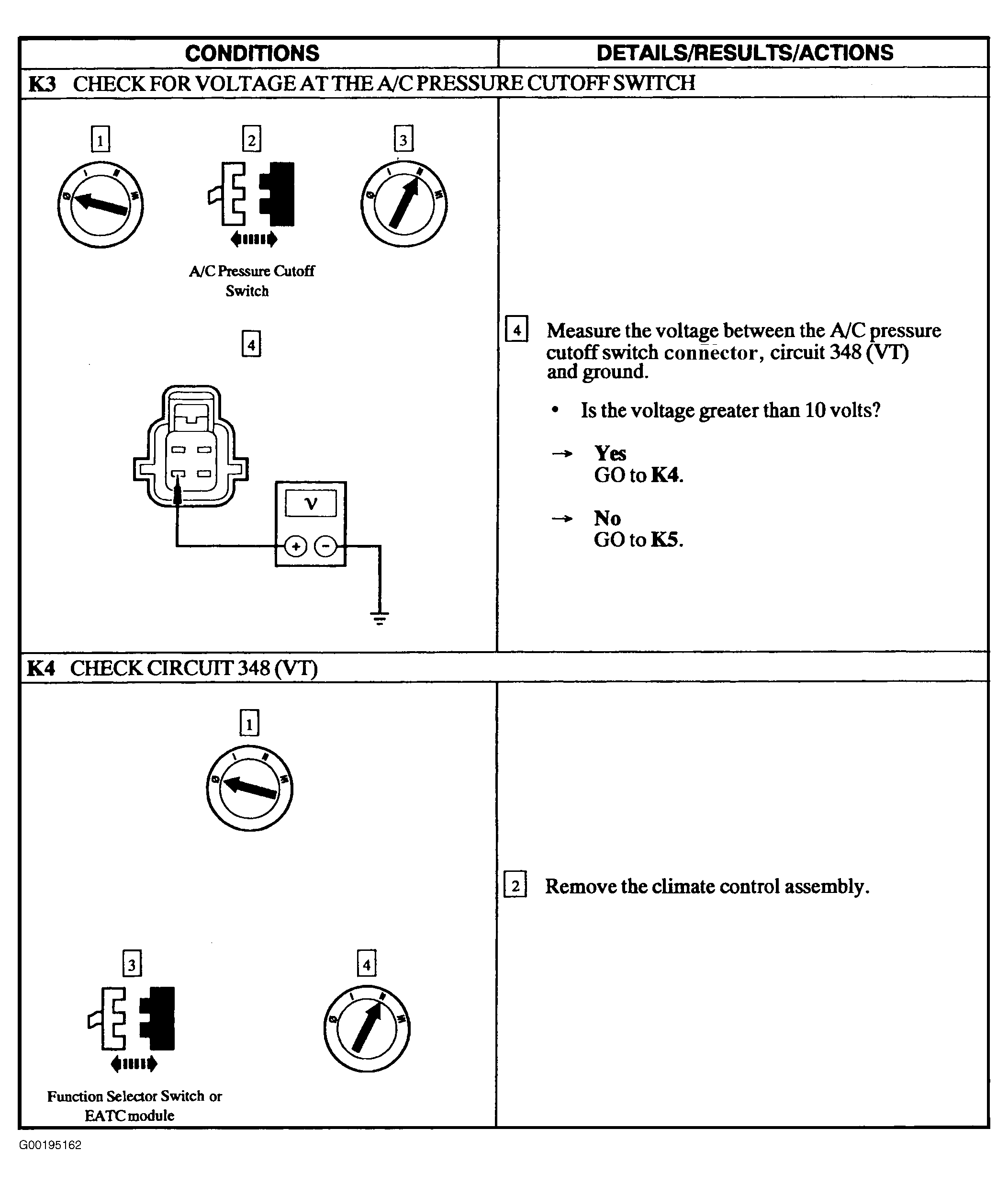

Fig 2: Test K (2 Of 5 - Steps K3-K4)

Courtesy of FORD MOTOR CO.

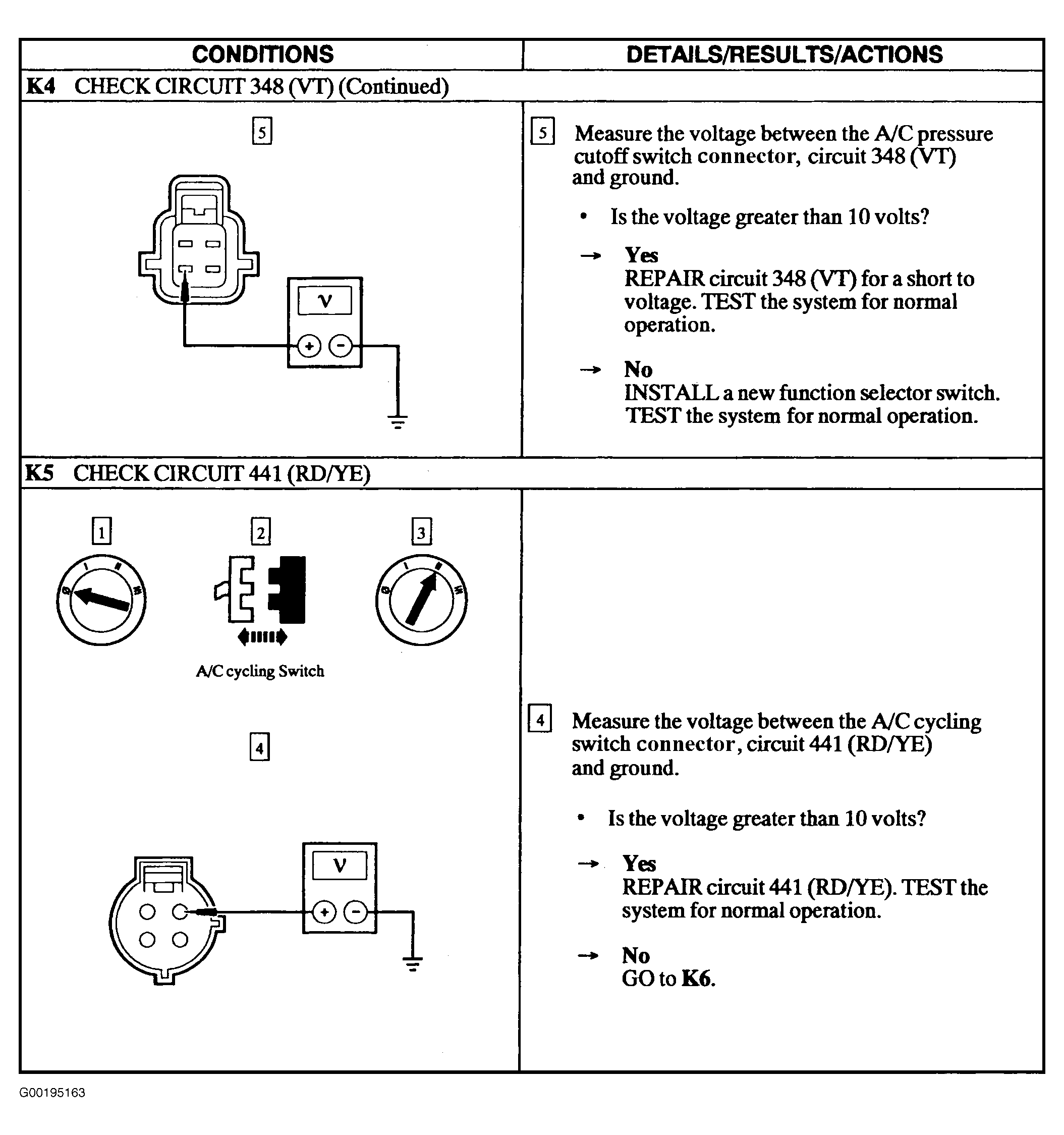

Fig 3: Test K (3 Of 5 - Steps K4 Cont.-K5)

Courtesy of FORD MOTOR CO.

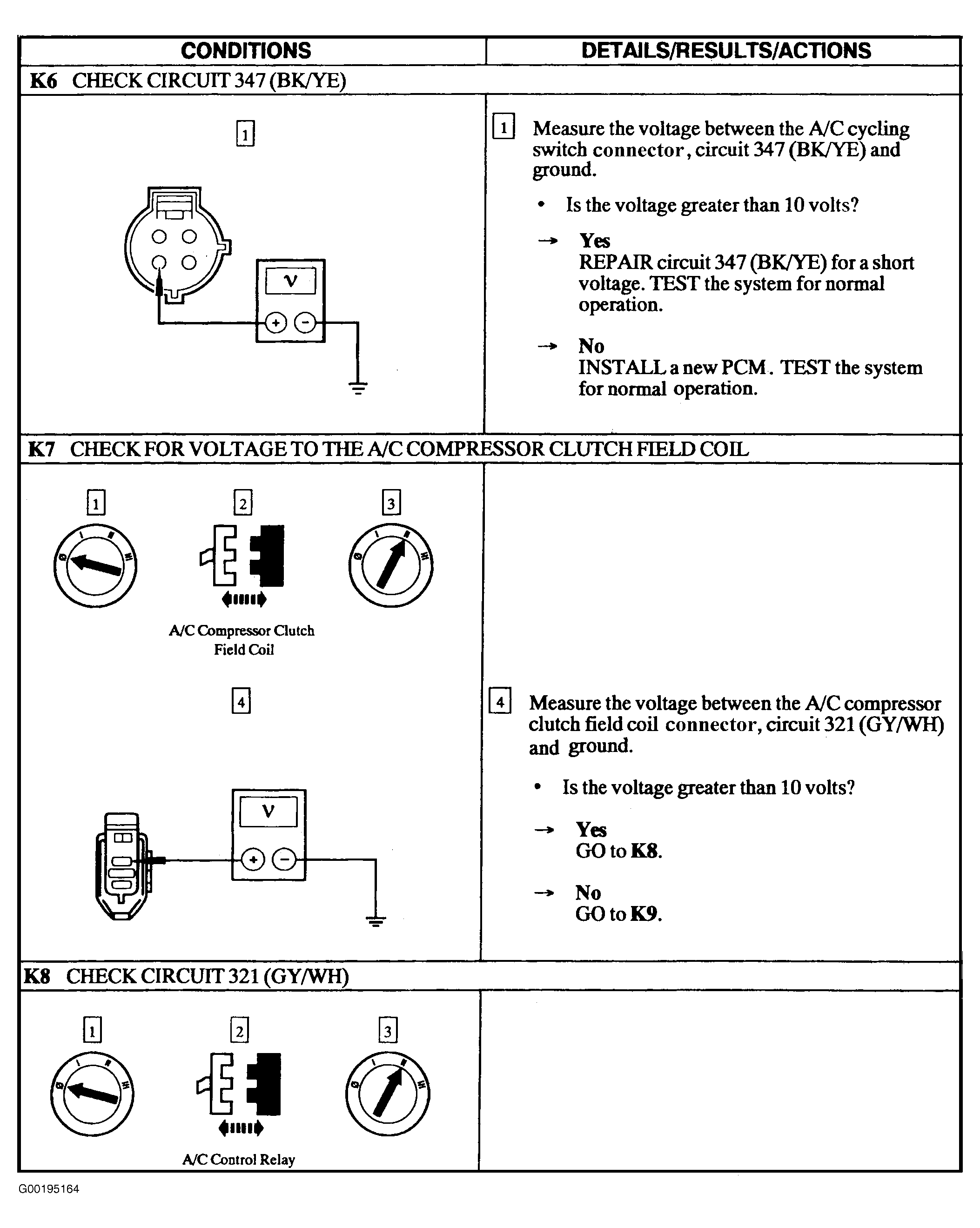

Fig 4: Test K (4 Of 5 - Steps K6-K8)

Courtesy of FORD MOTOR CO.

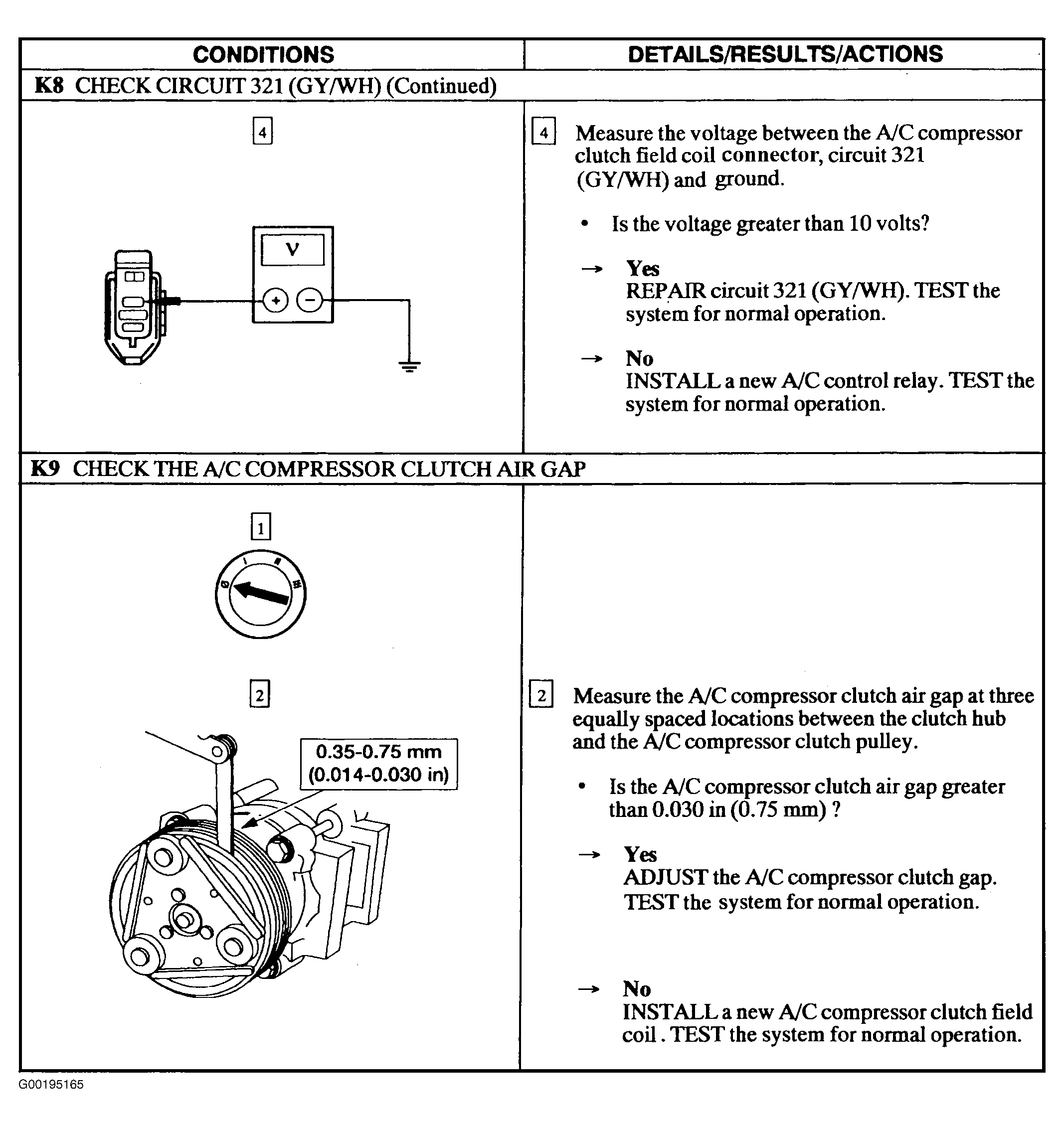

Fig 5: Test K (5 Of 5 - Steps K8 Cont.-K9)

Courtesy of FORD MOTOR CO.
