Removal & Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger cowl side trim panel.
  2. Remove the 4WD control module.
    1. Disengage the locking tangs and remove the harness connectors.
    2. Remove the screws.
    3. Remove the 4WD control module.

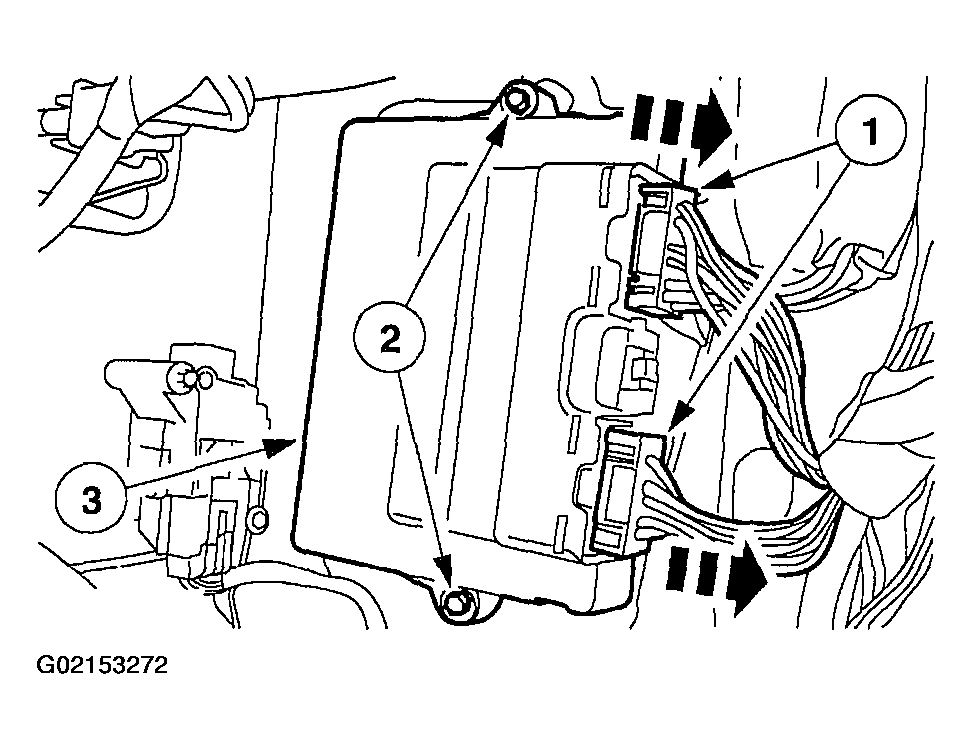

    Fig 1: Removing 4WD Control Module
    G02153272Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
