Pinpoint Test F: The Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

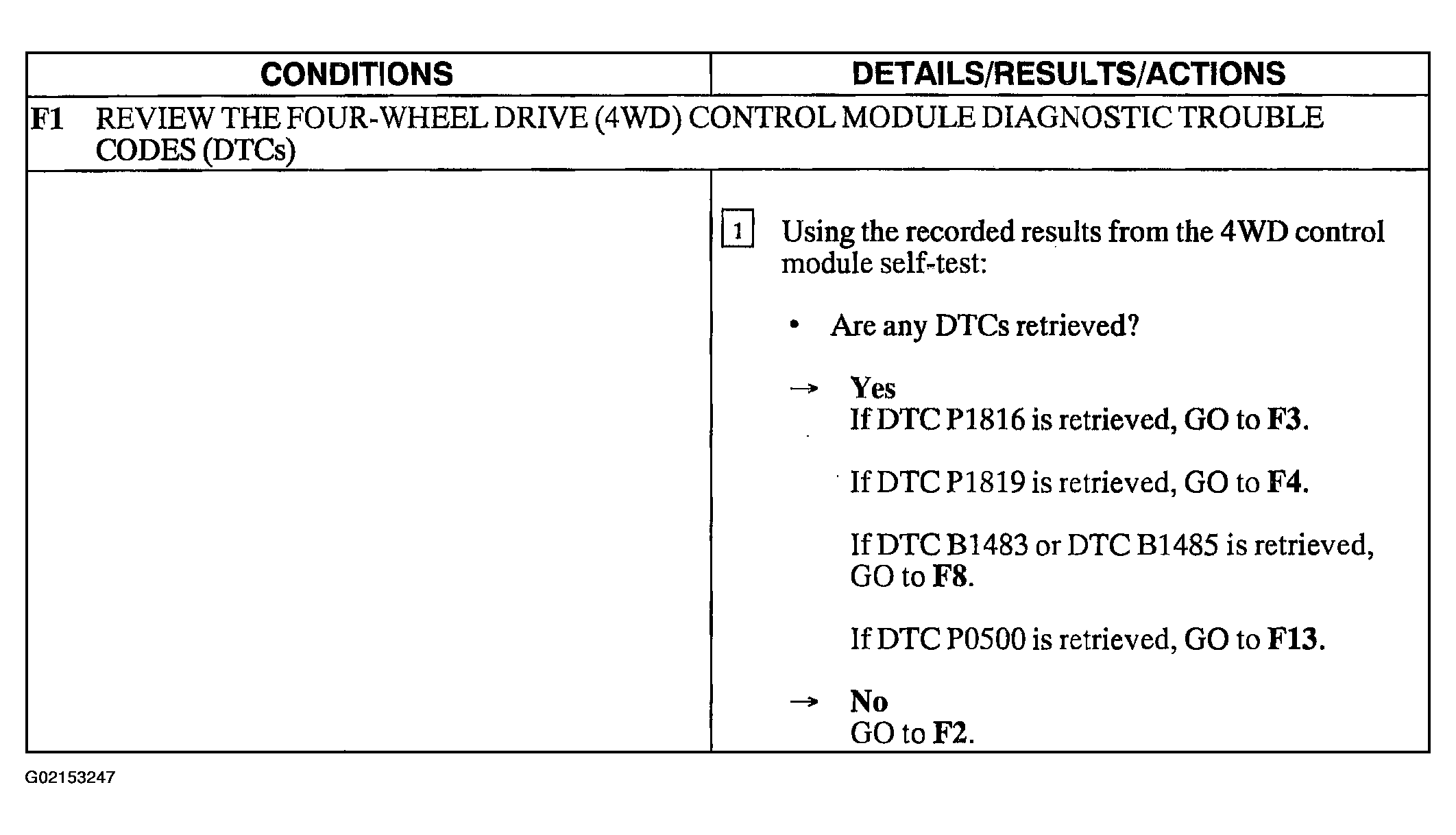

Fig 1: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F1)

Courtesy of FORD MOTOR CO.

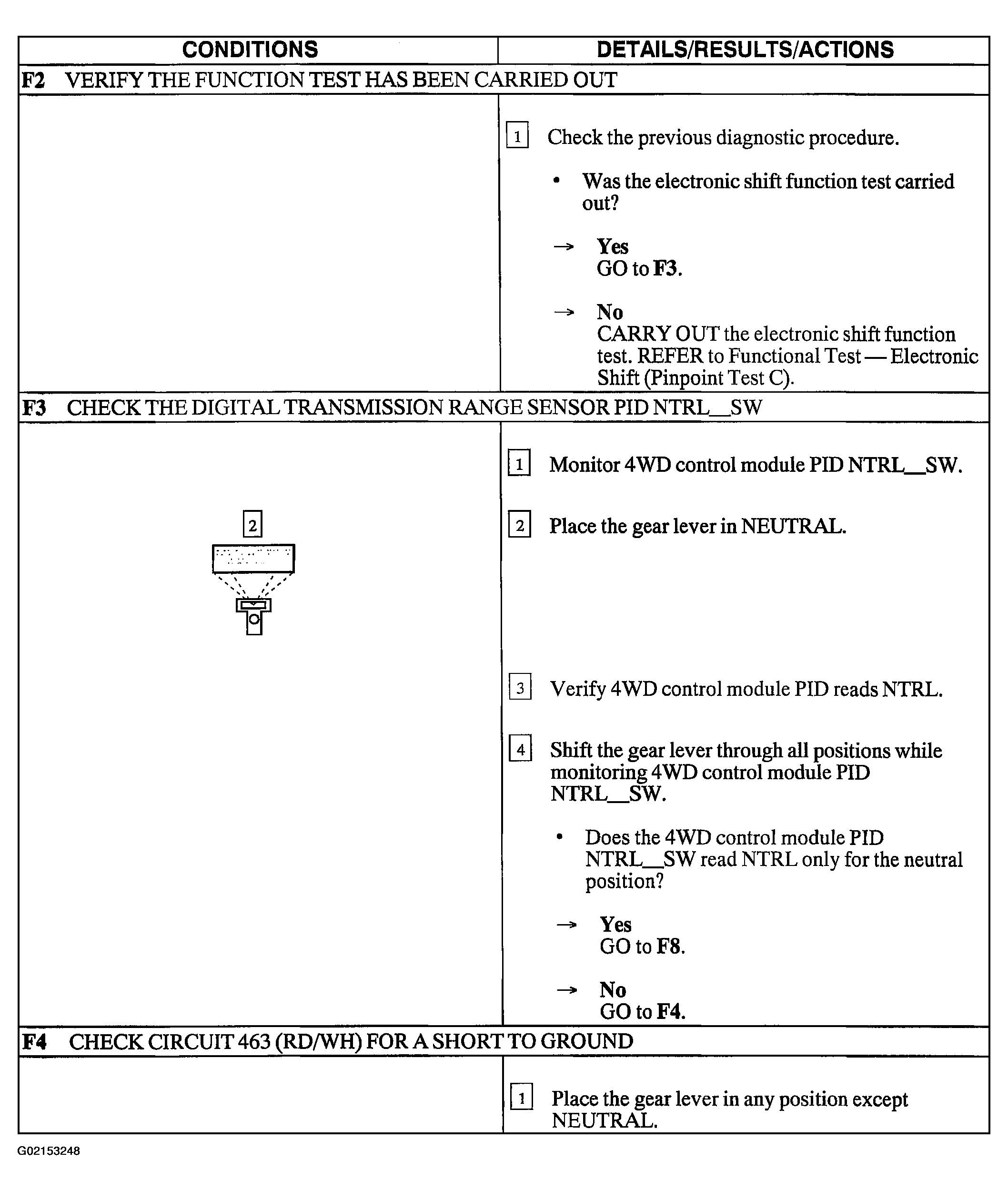

Fig 2: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F2-F4)

Courtesy of FORD MOTOR CO.

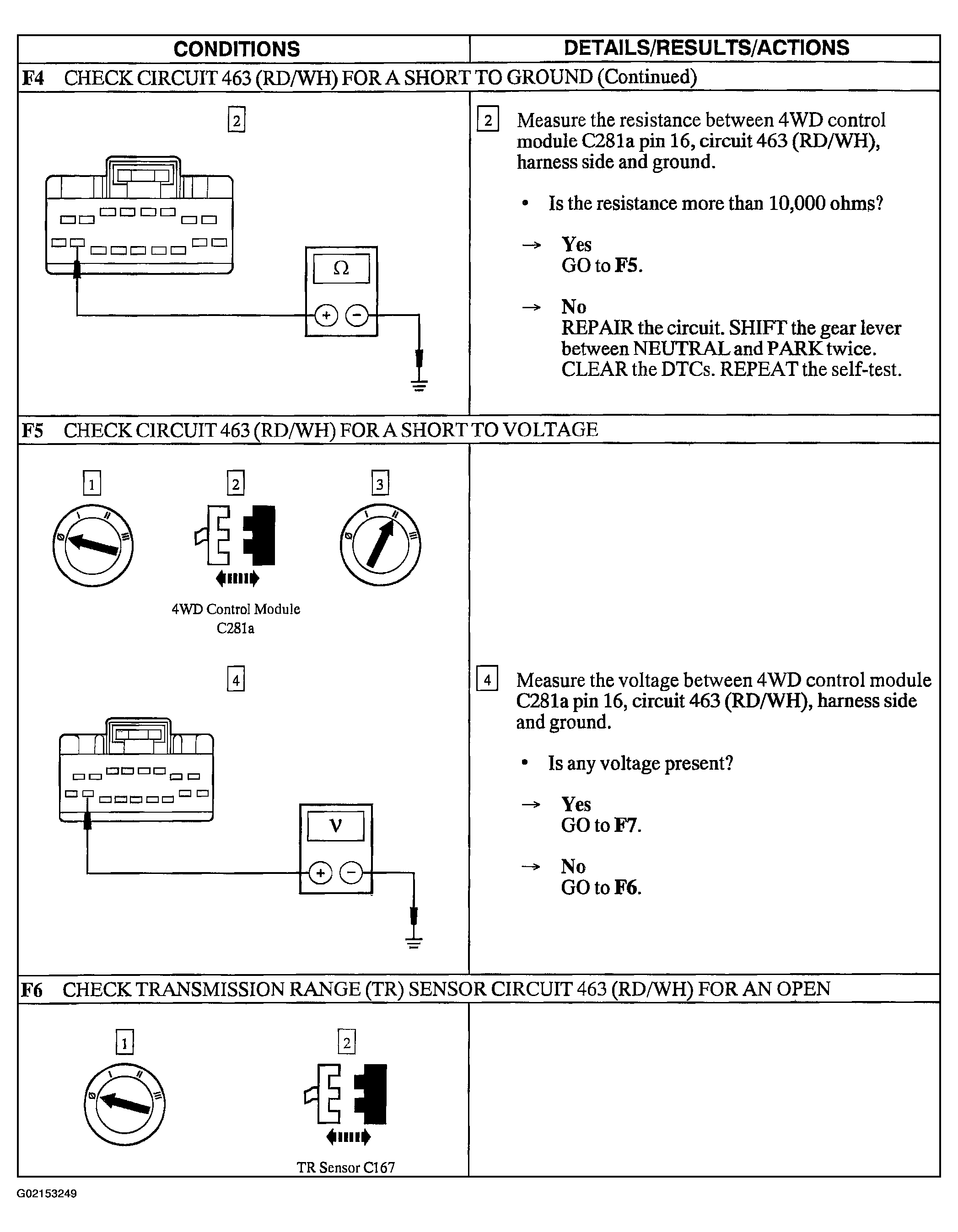

Fig 3: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F4-F6)

Courtesy of FORD MOTOR CO.

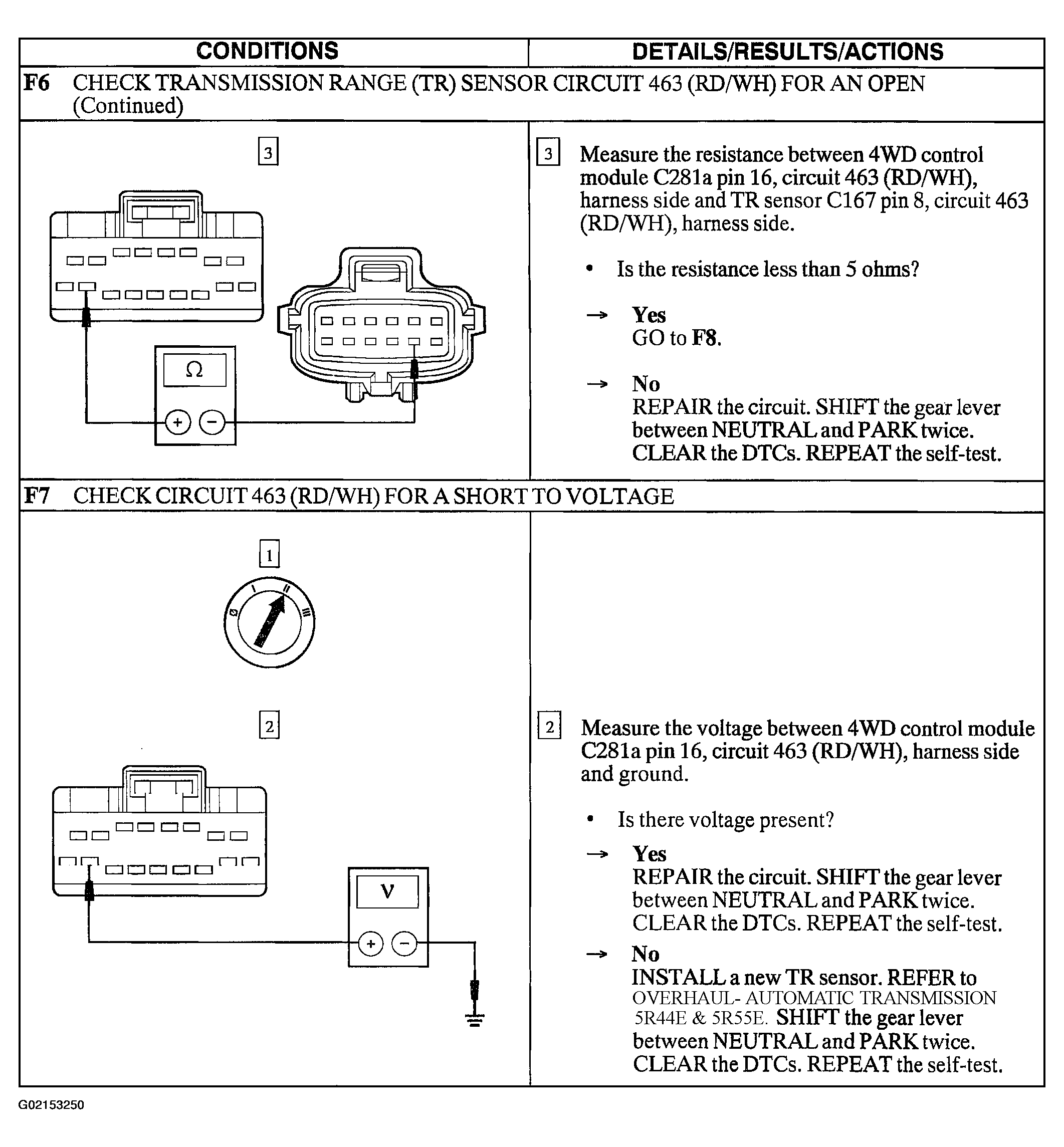

Fig 4: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F6-F7)

Courtesy of FORD MOTOR CO.

Fig 5: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F8-F9)

Courtesy of FORD MOTOR CO.

Fig 6: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F10-F11)

Courtesy of FORD MOTOR CO.

Fig 7: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F12-F13)

Courtesy of FORD MOTOR CO.

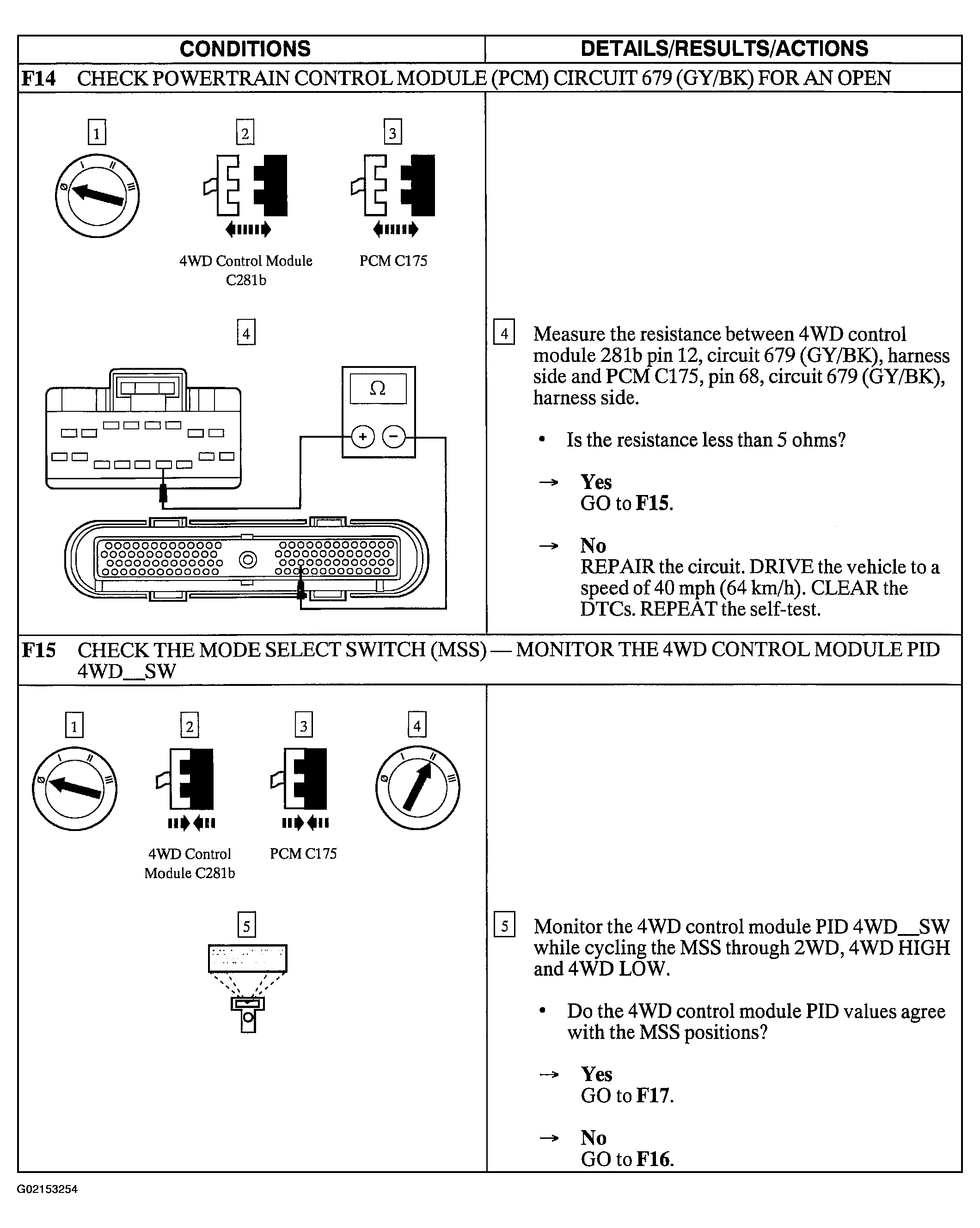

Fig 8: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F14-F15)

Courtesy of FORD MOTOR CO.

Fig 9: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F16-F17)

Courtesy of FORD MOTOR CO.

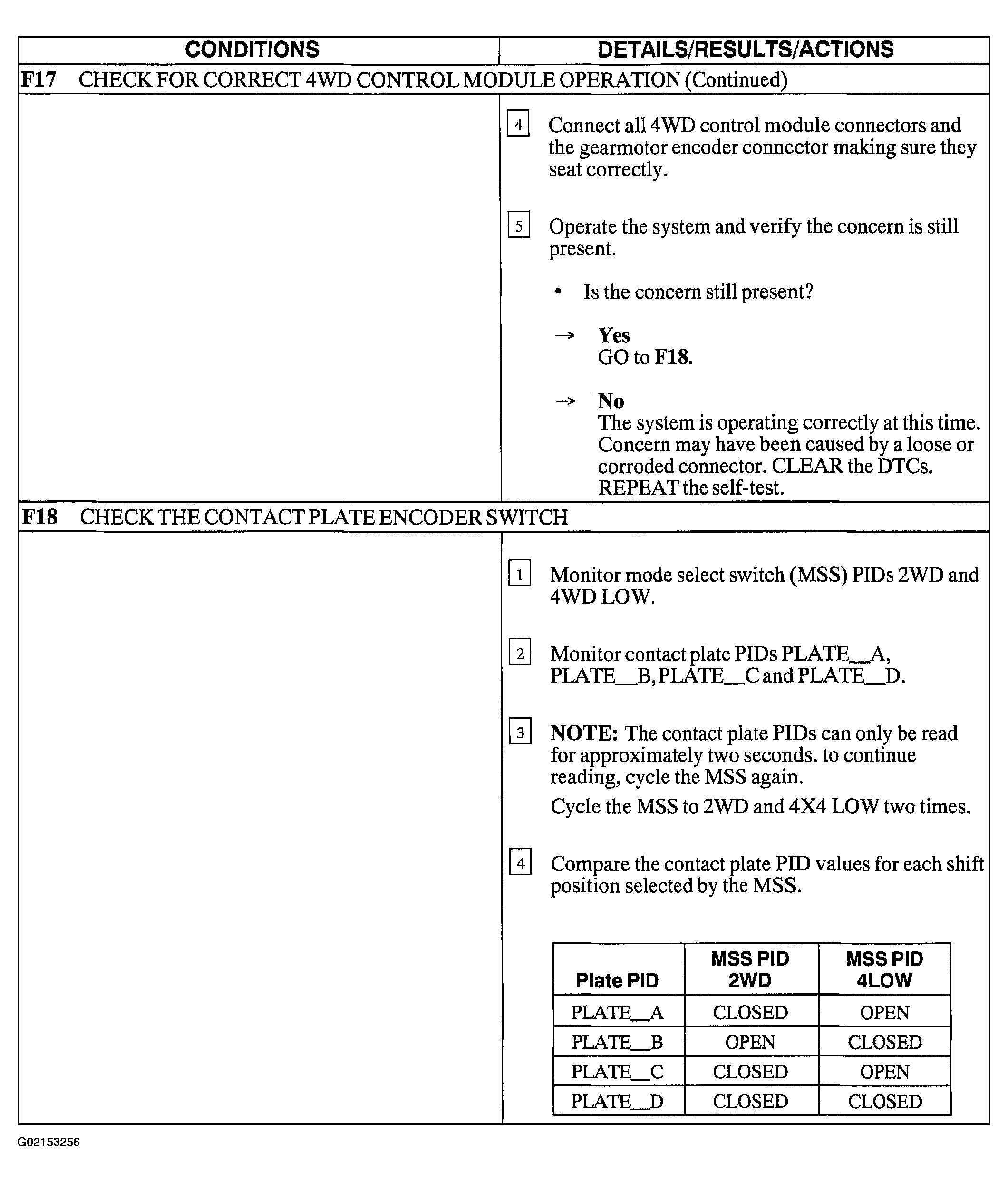

Fig 10: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F17-F18)

Courtesy of FORD MOTOR CO.

Fig 11: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F18-F19)

Courtesy of FORD MOTOR CO.

Fig 12: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F20-F21)

Courtesy of FORD MOTOR CO.

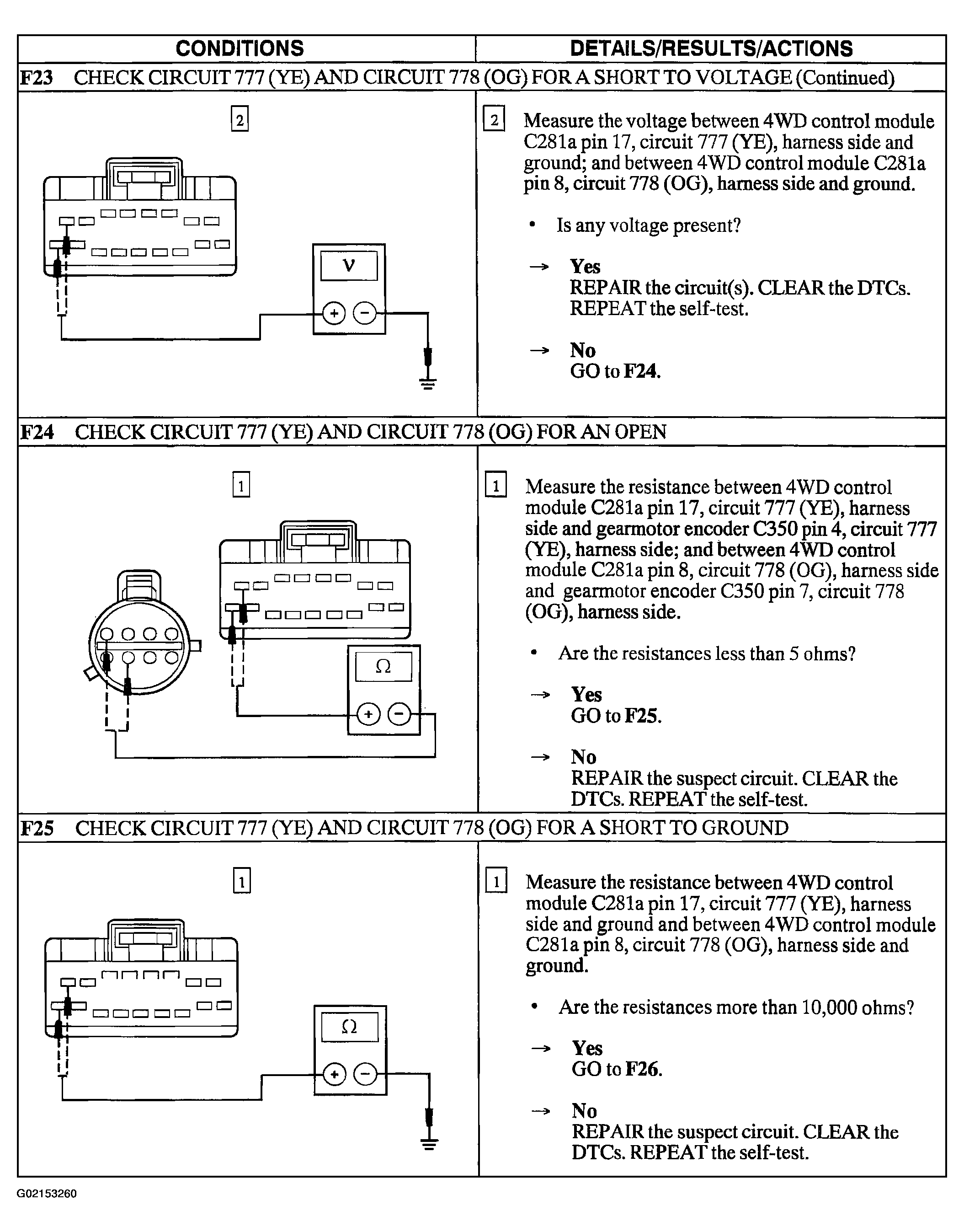

Fig 13: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F22-F23)

Courtesy of FORD MOTOR CO.

Fig 14: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F23-F25)

Courtesy of FORD MOTOR CO.

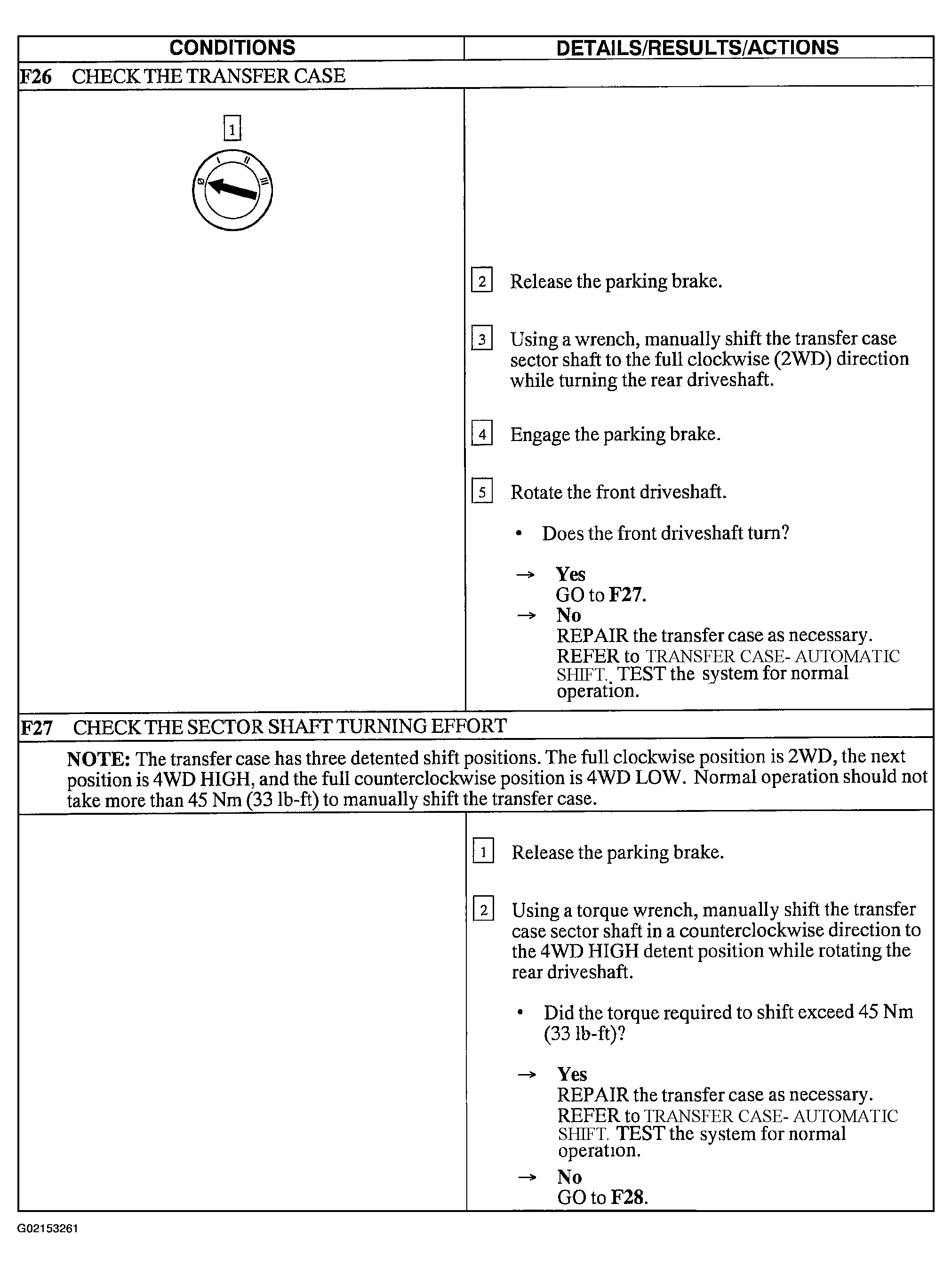

Fig 15: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F26-F27)

Courtesy of FORD MOTOR CO.

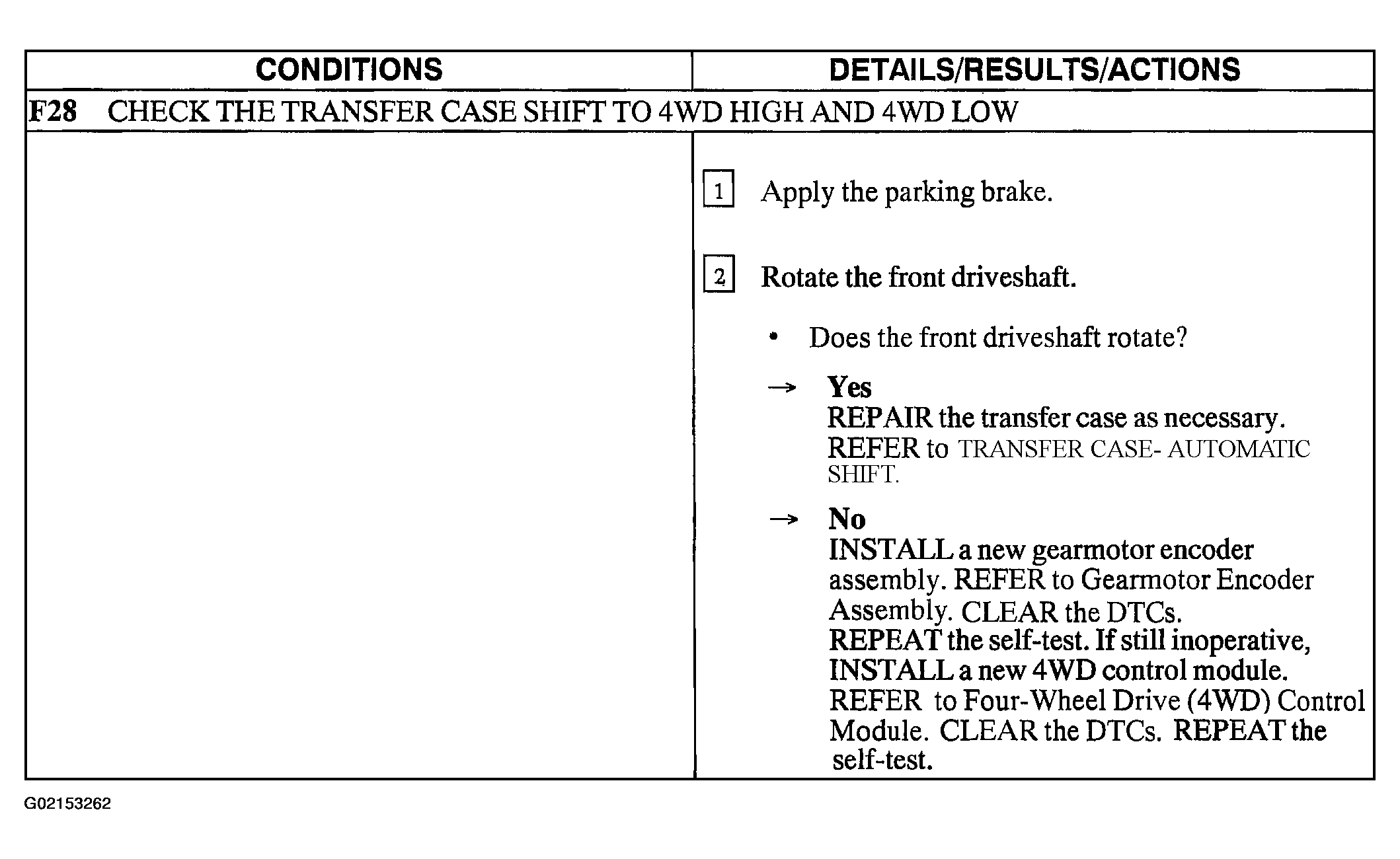

Fig 16: Pinpoint Test F: Vehicle Does Not Shift Between 4WD High & 4WD Low Modes Correctly (F28)
