Removal & Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Drain the cooling system. For additional information, refer to the COOLING SYSTEM DRAINING, FILLING & BLEEDING - 3.0L & 4.0L .
Remove the air cleaner outlet tube.
Remove the generator wiring harness bracket nut and position the wiring harness aside.

Fig 1: Removing Generator Wiring Harness Bracket Nut
Courtesy of FORD MOTOR CO.
Disconnect the upper radiator hose.

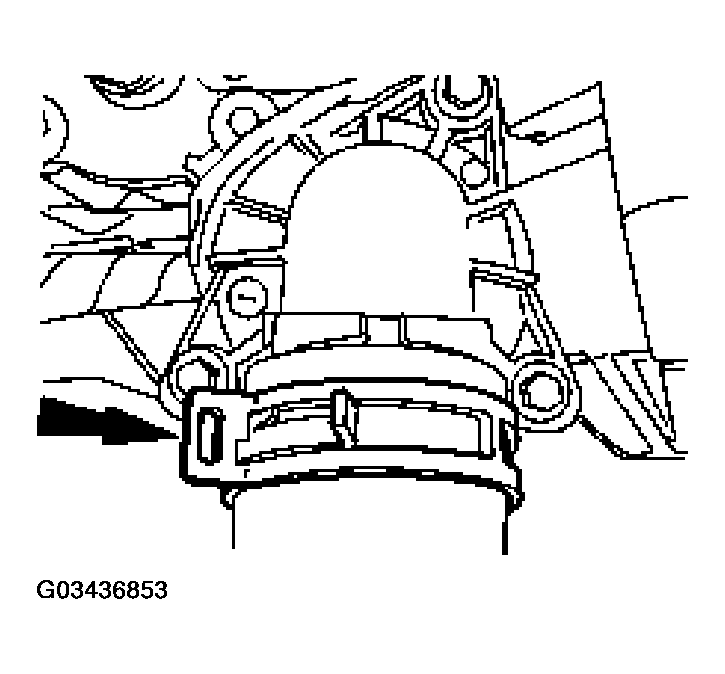

Fig 2: Disconnecting Upper Radiator Hose
Courtesy of FORD MOTOR CO.
Remove the bolts, the water outlet adapter and the thermostat.
- Inspect the O-ring seal. Install a new O-ring seal if necessary.
Fig 3: Removing Thermostat Bolts
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
