Removal & Installation

WARNING: This page is about a different car, the 2002 Ford Ranger. However, it is still accessible from the selected car via links, so may be relevant.

Remove the pump pulley. For additional information, refer to POWER STEERING PUMP PULLEY - 2.3L & 3.0L .
Disconnect the power steering pressure hose.
- Remove and discard the seal.
Fig 1: Disconnecting Power Steering Pressure Hose
Courtesy of FORD MOTOR CO.
Disconnect the power steering return hose.

Fig 2: Disconnecting Power Steering Return Hose
Courtesy of FORD MOTOR CO.
Disconnect the power steering return line hose.
Remove the bolts and the power steering pump.

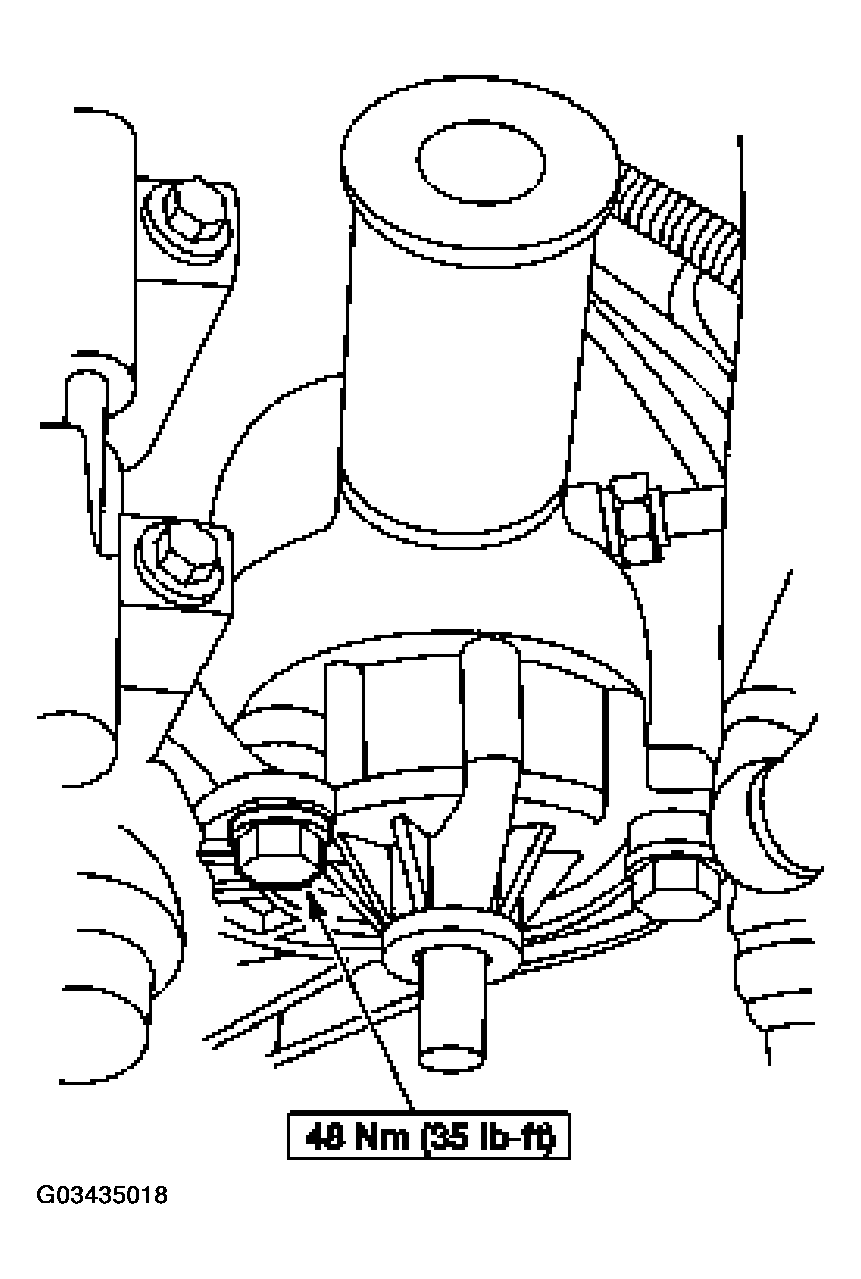

Fig 3: Removing Power Steering Pump
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Using the special tool, install a new seal on the power steering pressure hose.

Fig 4: Installing Seal On Power Steering Pressure Hose
Courtesy of FORD MOTOR CO.
Fill and leak test the system. For additional information, refer to STEERING SYSTEM-GENERAL INFORMATION .
