Extension Housing Seal And Bushing: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the driveshaft. For additional information, refer to DRIVE SHAFTS .
  3. Using the special tools, remove the extension housing seal.
    Fig 1: Removing Extension Housing Seal
    G01962876Courtesy of FORD MOTOR CO.
    4. CAUTION: Do not damage any machined surfaces. The new seal may leak.

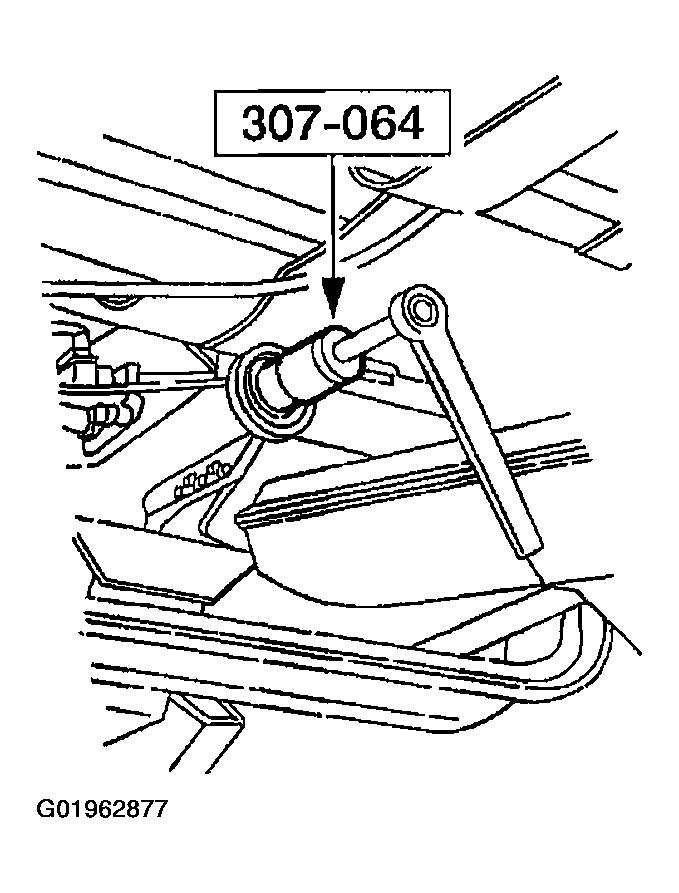

    Fig 2: Removing Extension Housing Bushing
    G01962877Courtesy of FORD MOTOR CO.
  4. Using the special tool, remove the extension housing bushing.
