Engagement Concern: Delayed/Soft Reverse Only

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

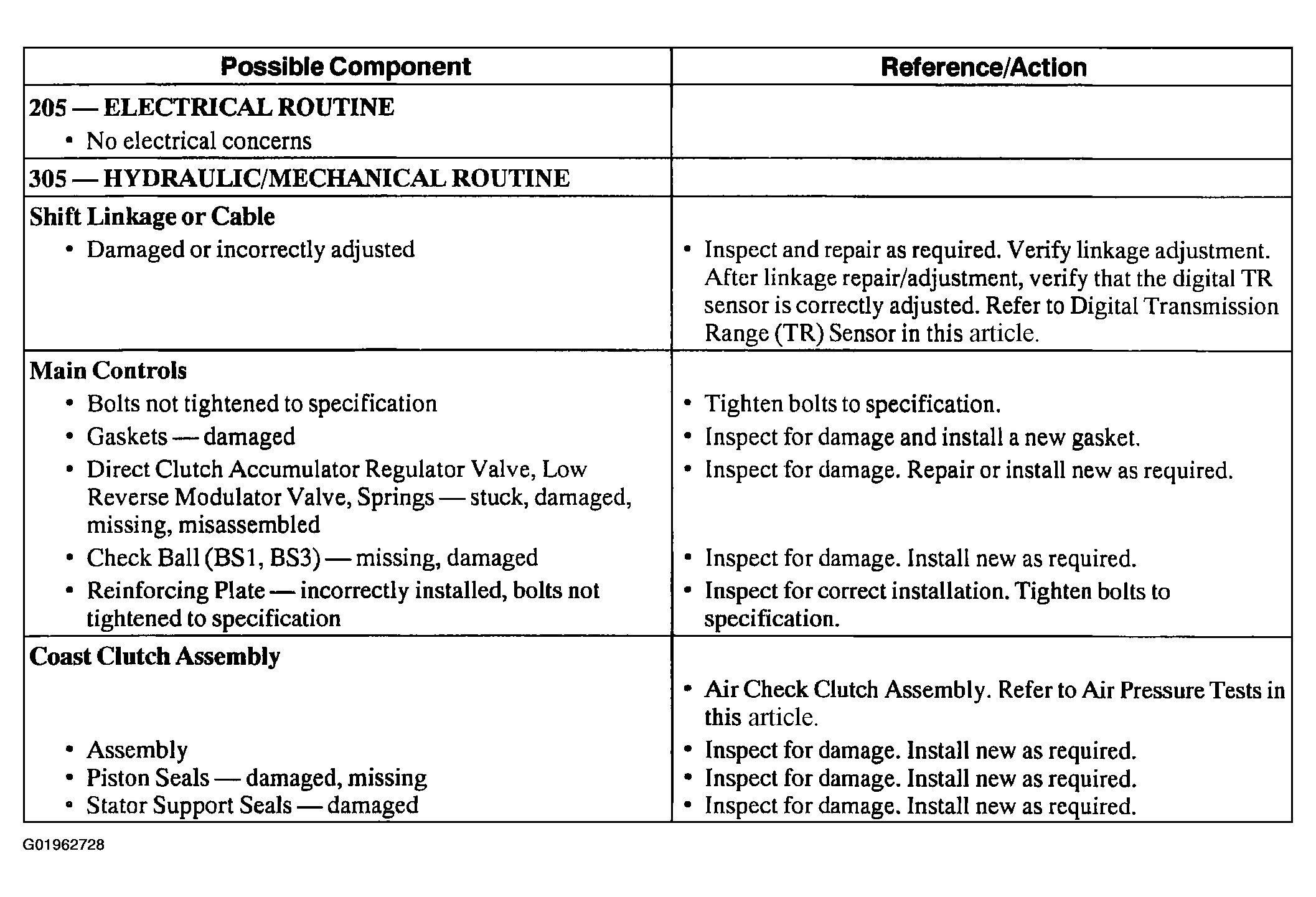

Fig 1: Diagnostic Routines 205/305 - Engagement Concern: Delayed/Soft Reverse Only (1 Of 2)
G01962728Courtesy of FORD MOTOR CO.

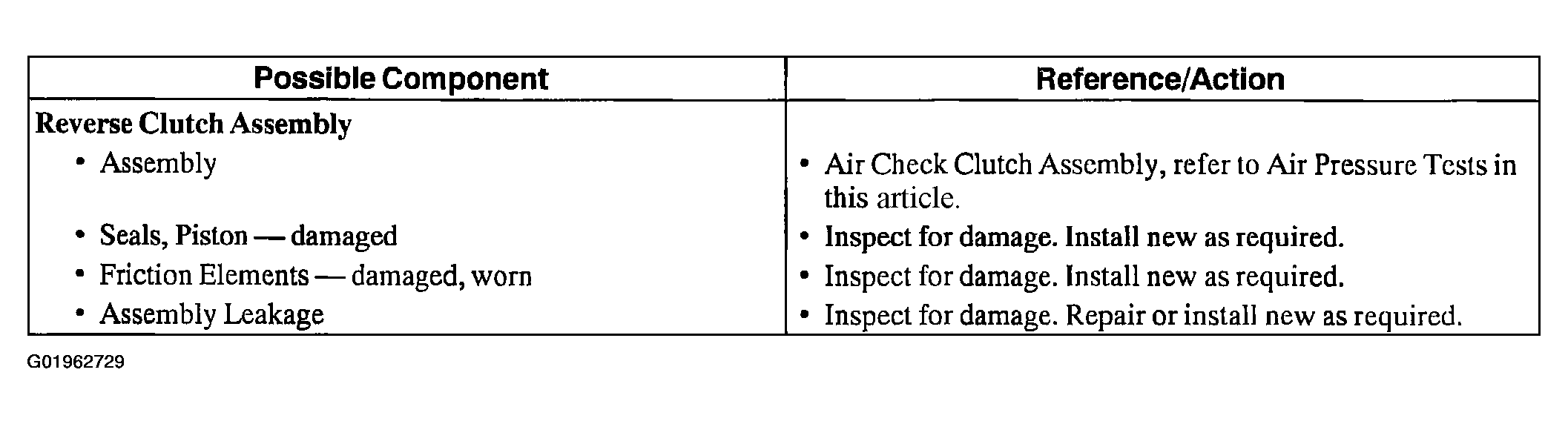

Fig 2: Diagnostic Routines 205/305 - Engagement Concern: Delayed/Soft Reverse Only (2 Of 2)
G01962729Courtesy of FORD MOTOR CO.
