Differential Housing Cover: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
    2. NOTE: Empty the lubricant into a clean container for reuse.

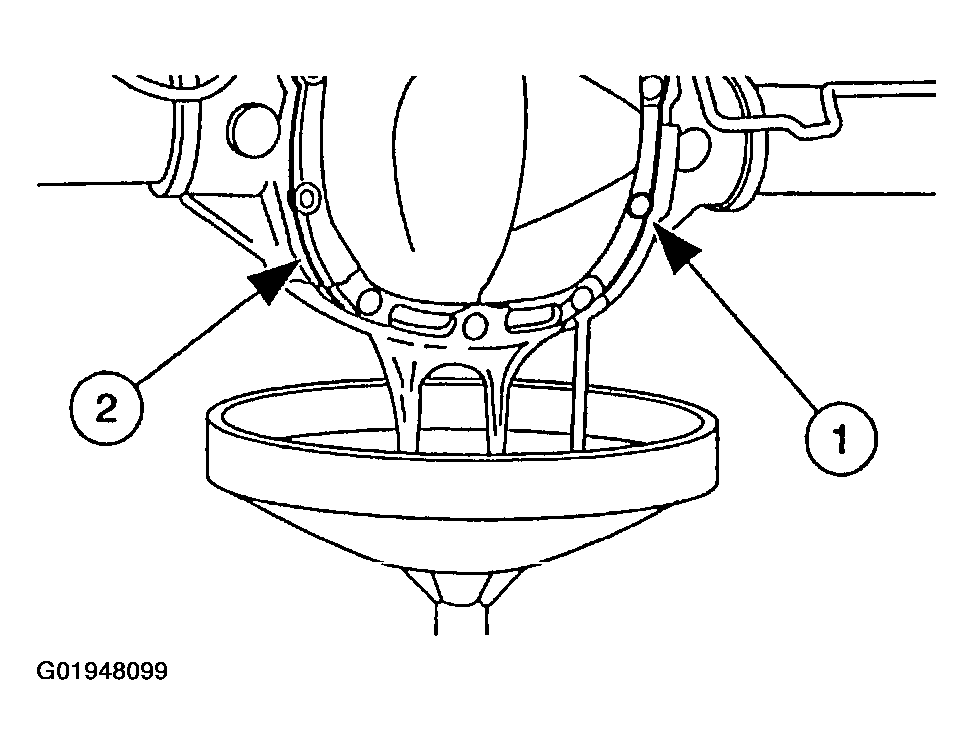

    Fig 1: Removing Differential Housing Cover
    G01948099Courtesy of FORD MOTOR CO.
  2. Remove the differential housing cover (4033).
    1. Remove the 10 differential housing cover bolts (4346) and drain the lubricant from the rear axle housing (4010).
    2. Remove the differential housing cover.
