Axle Shaft: Removal

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle.
  2. Remove the rear wheel and tire assembly. For additional information, refer to WHEELS & TIRES .
  3. Remove the differential housing cover (4033) and drain the lubricant. For additional information, refer to DIFFERENTIAL HOUSING COVER .
  4. Remove the brake drum (1126). For additional information, refer to DISC & DRUM .
  5. Remove the differential pinion shaft (4211).
    1. Remove and discard the differential pinion shaft lock bolt.
    2. Remove the differential pinion shaft.

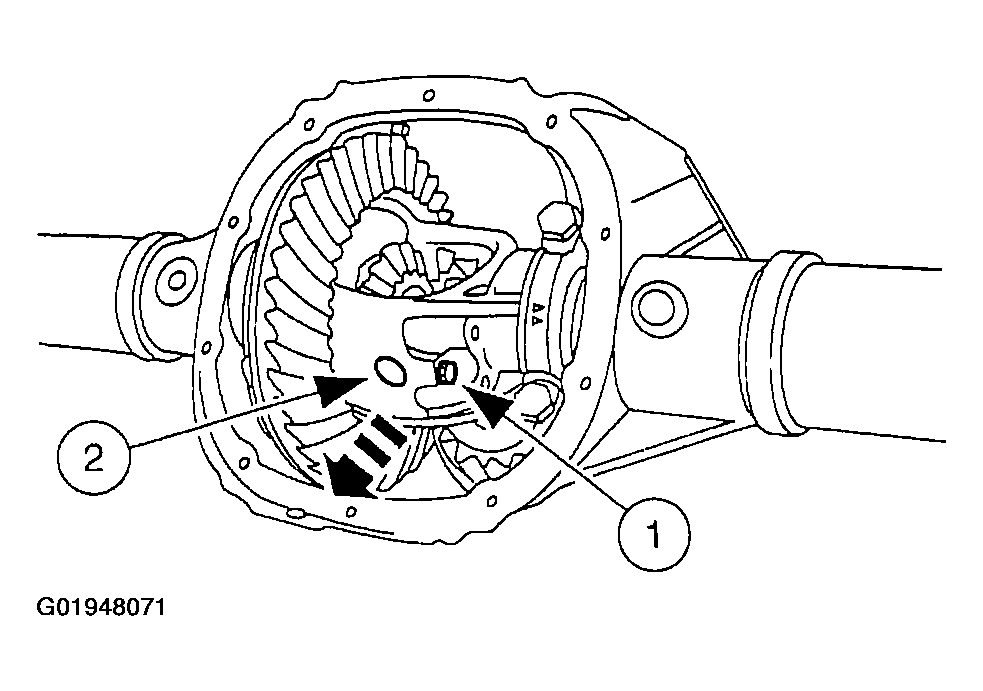

      3. Fig 1: Removing Differential Pinion Shaft
      G01948071Courtesy of FORD MOTOR CO.
    6. CAUTION: Do not damage the rubber O-ring in the axle shaft groove.

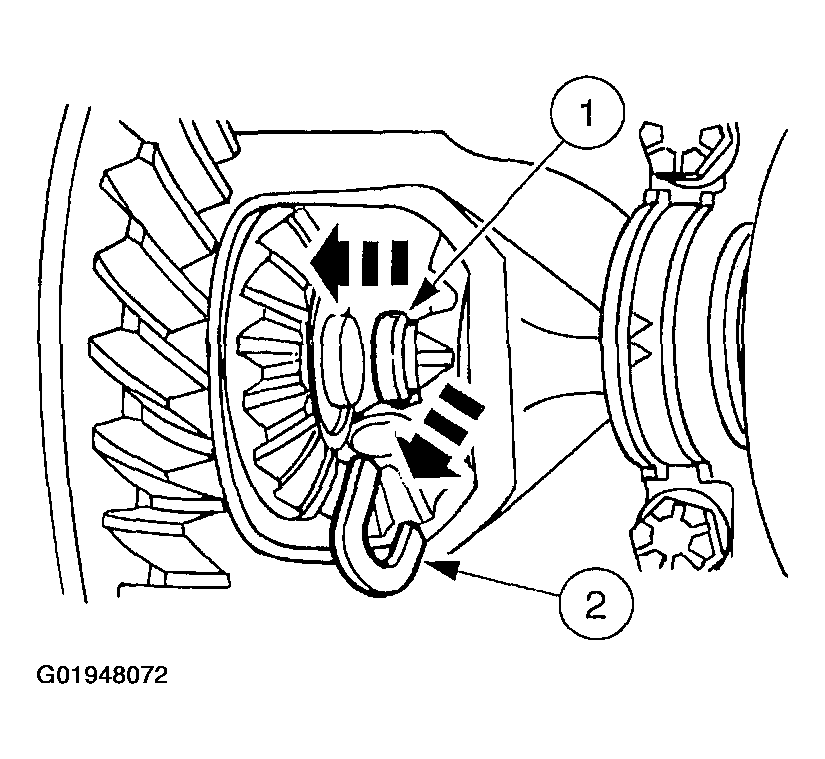

    Fig 2: Removing U-Washer
    G01948072Courtesy of FORD MOTOR CO.
  6. Remove the U-washer (4N237).
    1. Push the axle shaft (4234) inward.
    2. Remove the U-washer.
    7. CAUTION: Do not damage the wheel bearing oil seal (1177).

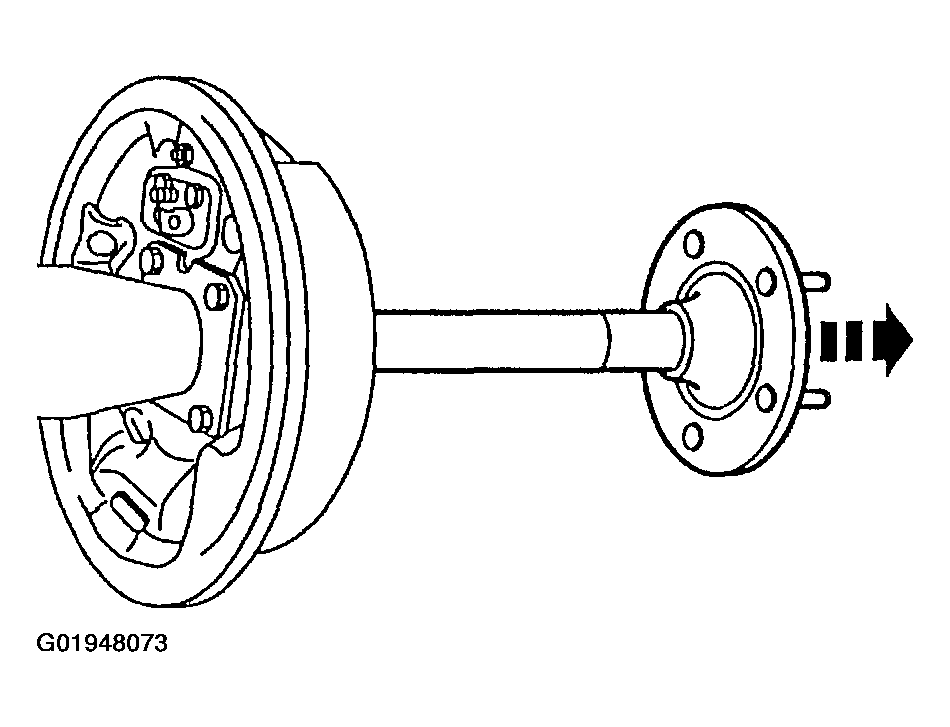

    Fig 3: Removing Axle Shaft
    G01948073Courtesy of FORD MOTOR CO.
  7. Remove the axle shaft (4234).
