Removal and Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery tray. For additional information, refer to BATTERY TRAY .
Remove the air cleaner assembly.

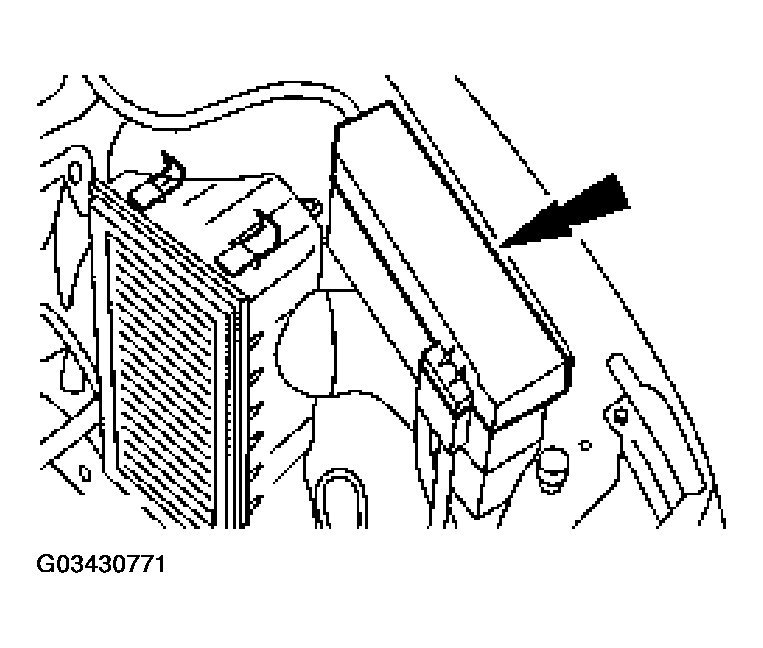

Remove the fuse junction box cover.

Fig 1: Removing Fuse Junction Box Cover
Courtesy of FORD MOTOR CO.

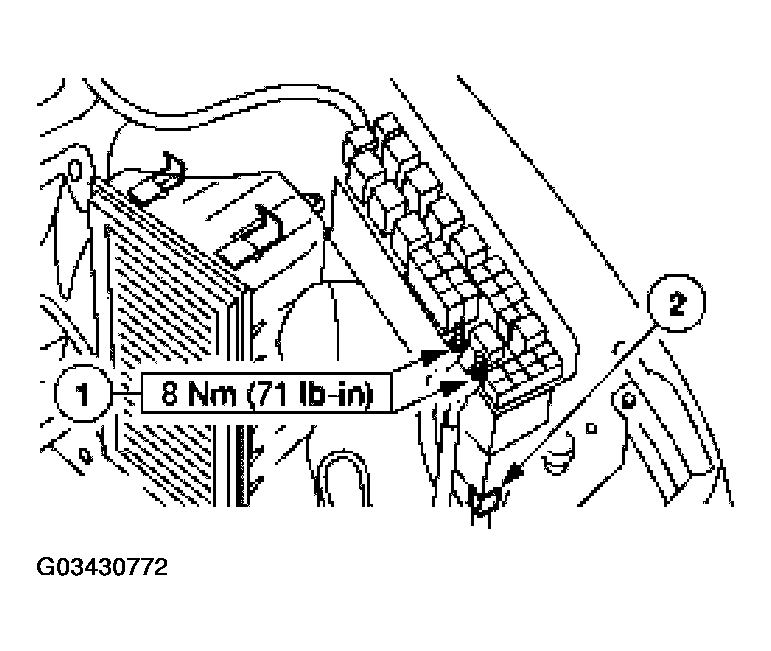

Remove the cables.
1. Remove the nuts and the cable.
2. Release the lock clip and pull down on the connector.
Fig 2: Removing Cables
Courtesy of FORD MOTOR CO.

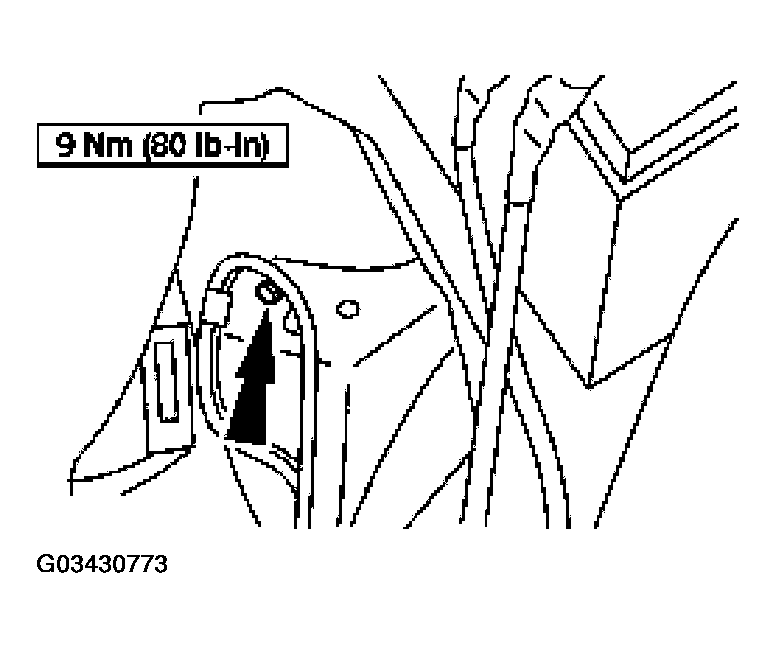

Remove the bolt from the inner fender.

Fig 3: Removing Bolt From Inner Fender
Courtesy of FORD MOTOR CO.

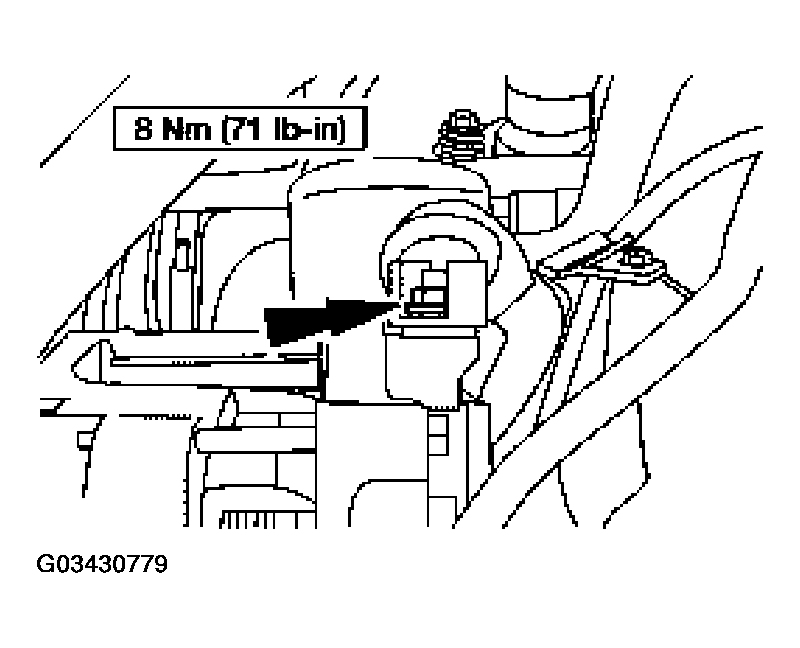

Remove the bolt holding the ground cable to the transaxle.

Fig 4: Removing Bolt Holding Ground Cable To Transaxle
Courtesy of FORD MOTOR CO.

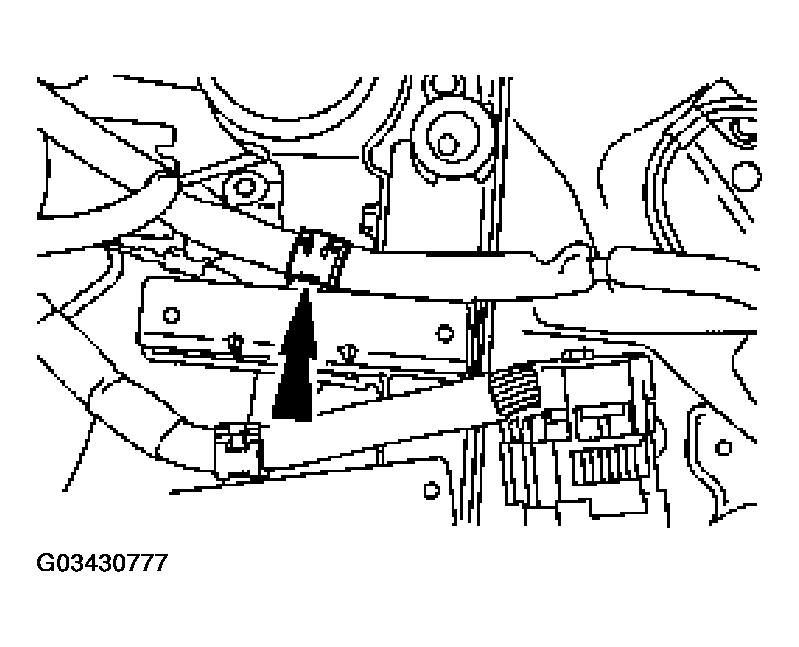

Disconnect the harness clip.

Fig 5: Disconnecting Harness Clip
Courtesy of FORD MOTOR CO.

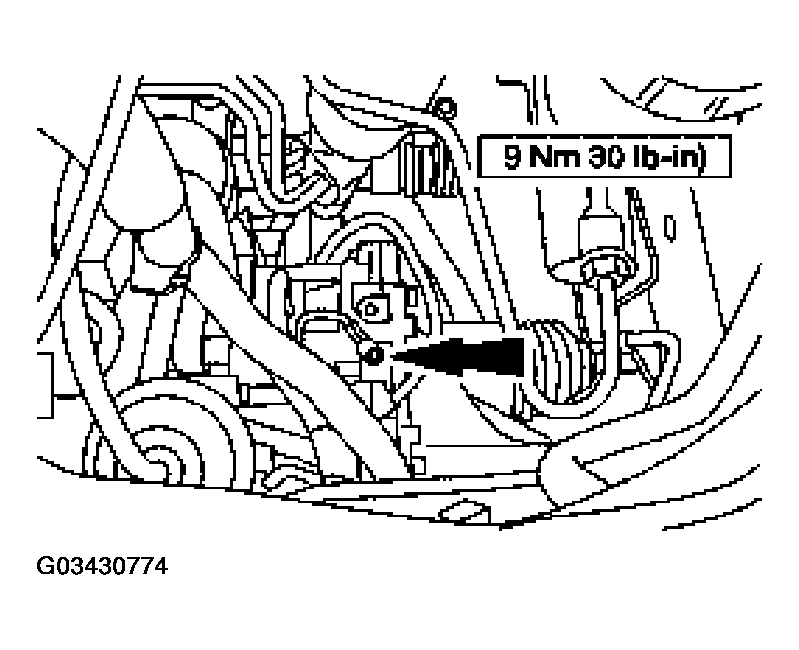

Disconnect the harness clip at the back of the engine.

Fig 6: Disconnecting Harness Clip At Back Of Engine
Courtesy of FORD MOTOR CO.

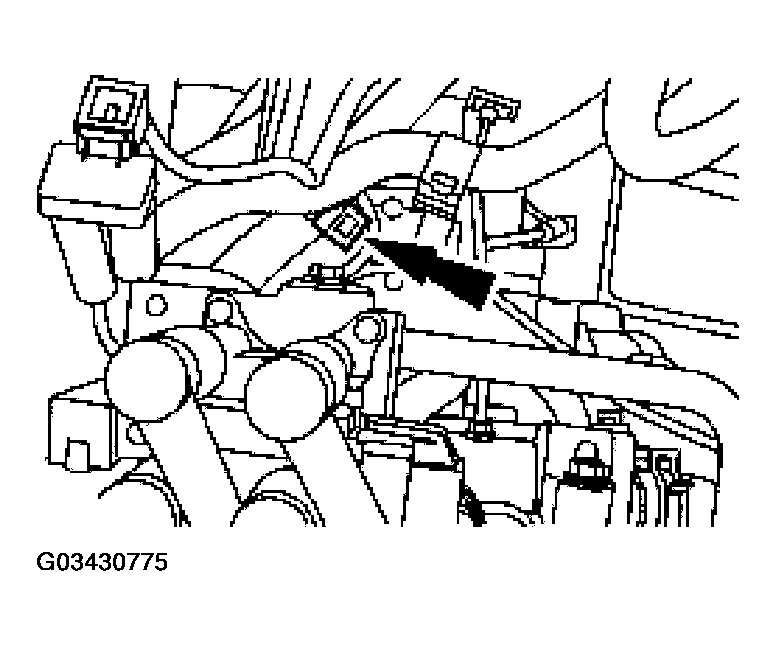

Remove the cable clip from under the battery support.

Fig 7: Removing Cable Clip From Under Battery Support
Courtesy of FORD MOTOR CO.
Raise and support the vehicle.

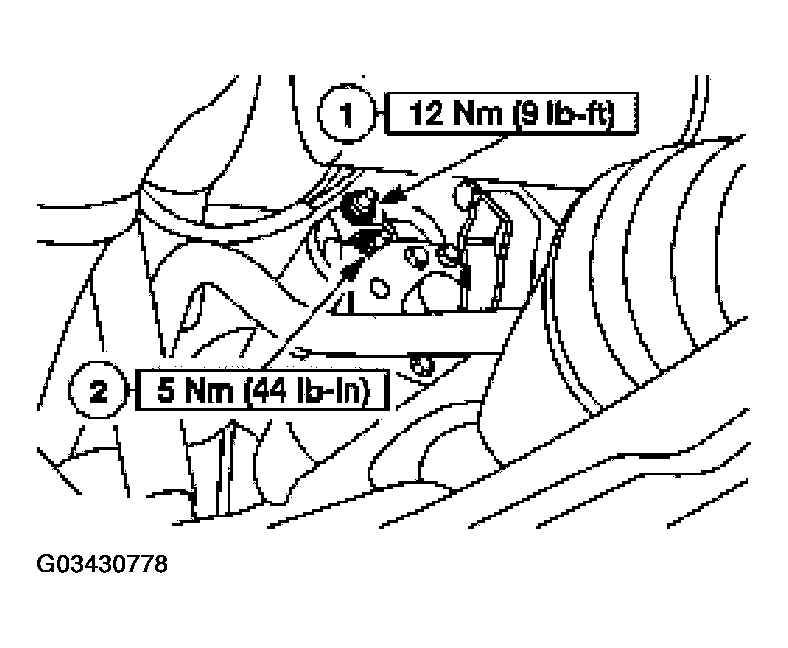

Remove the cable ends from the starter solenoid.
1. Remove the upper nut.
2. Remove the lower nut.
Fig 8: Removing Cable Ends From Starter Solenoid
Courtesy of FORD MOTOR CO.
Remove the nut and the cable end from the generator B+ connector.

Fig 9: Removing Nut And Cable End From Generator B+ Connector
Courtesy of FORD MOTOR CO.
Remove the battery cable harness assembly.
To install, reverse the removal procedure.
