Crankshaft Front Oil Seal: Installation

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, install a new crankshaft front seal.

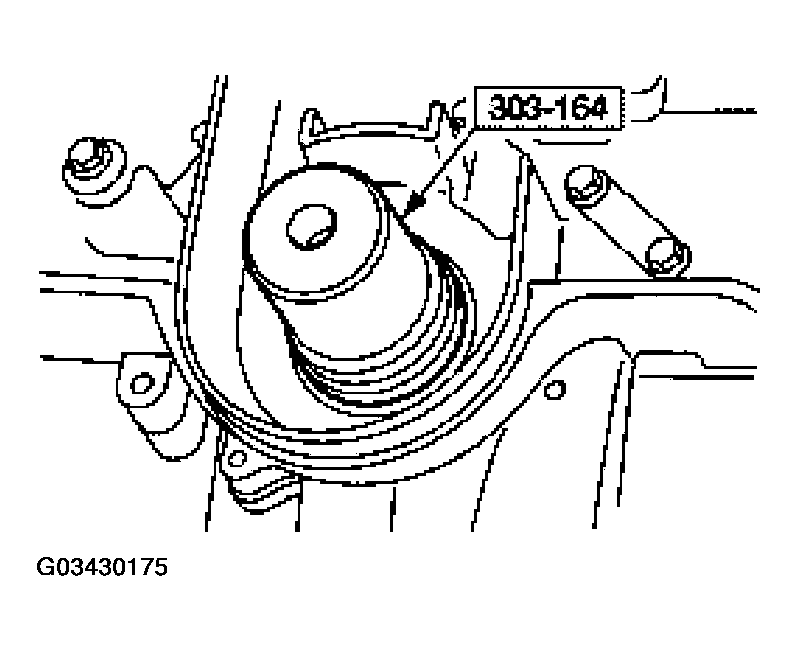

    Fig 1: Installing Crankshaft Front Oil Seal
    G03430175Courtesy of FORD MOTOR CO.
  2. Install the timing belt guide and crankshaft sprocket.
    Fig 2: Removing Crankshaft Sprocket & Timing Belt Guide
    G03430176Courtesy of FORD MOTOR CO.
  3. Install the timing belt. For additional information, refer to TIMING BELT .
