Crankshaft Front Oil Seal: Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
  2. Using the special tool, remove the crankshaft front oil seal and discard.

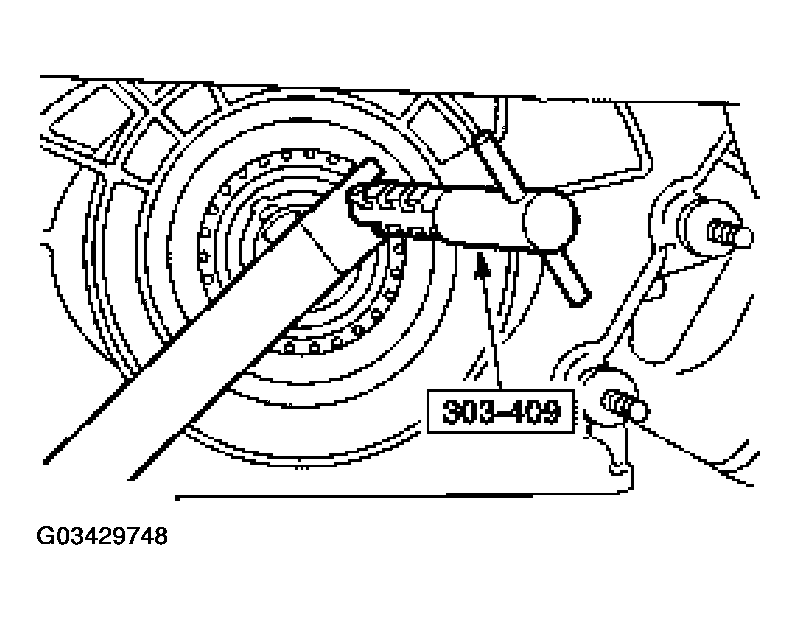

    Fig 1: Removing Crankshaft Front Oil Seal
    G03429748Courtesy of FORD MOTOR CO.
