Pinpoint Test E: The Ignition Switch Is Inoperative-Key Cannot Be Removed From Ignition Switch (Automatic Transmission Only)

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

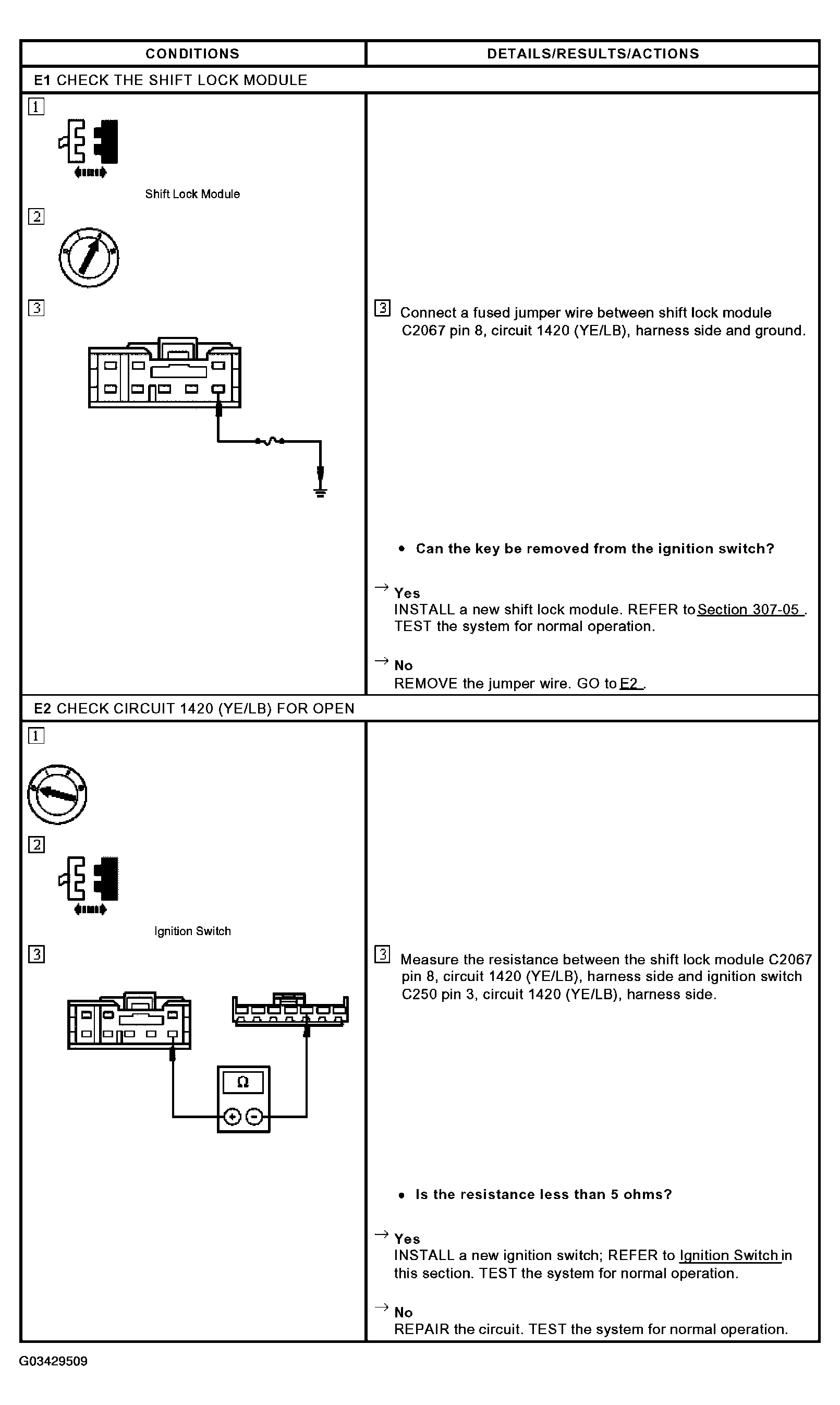

Fig 1: Pinpoint Test E: Ignition Switch Is Inoperative-Key Cannot Be Removed From Ignition Switch (Automatic Transmission Only)
G03429509Courtesy of FORD MOTOR CO.
