Power Steering Pump to Steering Gear Pressure Line - 3.0L (4V): Removal

WARNING: This page is about a different car, the 2002 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: While repairing the power steering system, care should be taken to prevent the entry of contaminants or premature failure of the power steering components can result.

Raise and support the vehicle.

NOTE: Drain the excess power steering fluid into a suitable drain pan.

NOTE: Do not drop the O-ring seals.

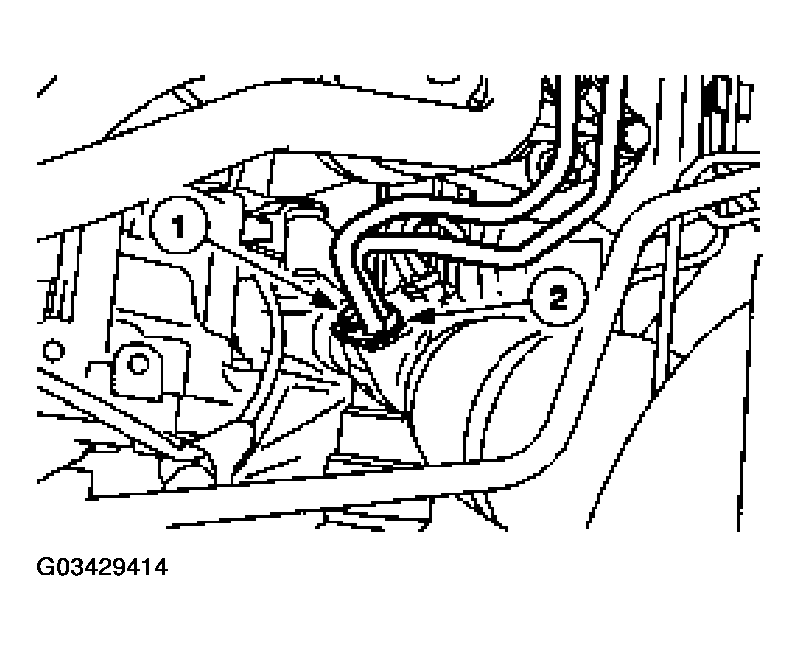

Fig 1: Disconnecting Power Steering Pressure And Return Lines

Courtesy of FORD MOTOR CO.

Disconnect the power steering pressure and return lines.
1. Remove the bolt.
2. Disconnect the power steering pressure and return lines.
Lower the vehicle.
Remove the power steering pressure line bracket bolt to the steering gear.

Fig 2: Removing Power Steering Pressure Line Bracket Bolt To Steering Gear
Courtesy of FORD MOTOR CO.
Remove the power steering pressure hose.
1. Remove the power steering pressure line bracket bolt.
2. Disconnect the electrical connector.
3. Loosen the fitting and remove the power steering pressure line.
Fig 3: Removing Power Steering Pressure Hose
Courtesy of FORD MOTOR CO.
