Safety Belt - Rear 4-Passenger Bench Seat: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Use the Safety Belt Bolt Torx Bit to remove the LH rear safety belt and buckle bolt.

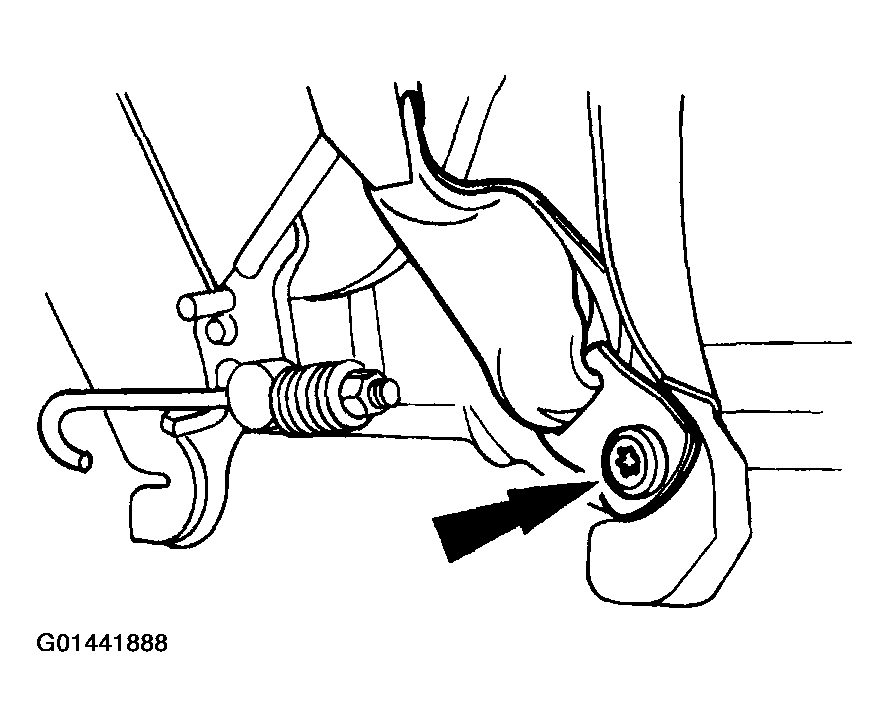

Fig 1: Removing LH Rear Safety Belt And Buckle Bolt
Courtesy of FORD MOTOR CO.
Remove the LH rear safety belt and buckles.

Fig 2: Removing LH Rear Safety Belt And Buckles
Courtesy of FORD MOTOR CO.
Use the Safety Belt Bolt Torx Bit to remove the safety belt and tongue bolt.

Fig 3: Removing Safety Belt And Tongue Bolt
Courtesy of FORD MOTOR CO.
Remove the safety belt and tongue.

Fig 4: Removing Safety Belt And Tongue Bolt
Courtesy of FORD MOTOR CO.
Use the Safety Belt Bolt Torx Bit to remove the RH rear safety belt and buckle bolt.

Fig 5: Removing RH Rear Safety Belt And Buckle Bolt
Courtesy of FORD MOTOR CO.
Remove the RH rear safety belt and buckle.

Fig 6: Removing RH Rear Safety Belt And Buckle

Courtesy of FORD MOTOR CO.
