Retractor - Front Safety Belt and Tongue: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the safety belt webbing is not twisted prior to installation

NOTE: Make sure to tighten bolts to specification

NOTE: Inspect the shoulder safety belt guide cover for damage. If the shoulder safety belt guide cover is damaged or if it does not remain closed, install a new shoulder safety belt guide

Fig 3: Installing Front Safety Belt Retractor

Courtesy of FORD MOTOR CO.

Fig 4: Installing Shoulder Safety Belt Guide

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
- Check the active restraint system for correct operation.

  Fig 1: Installing New Shoulder Safety Belt Guide
  Courtesy of FORD MOTOR CO.

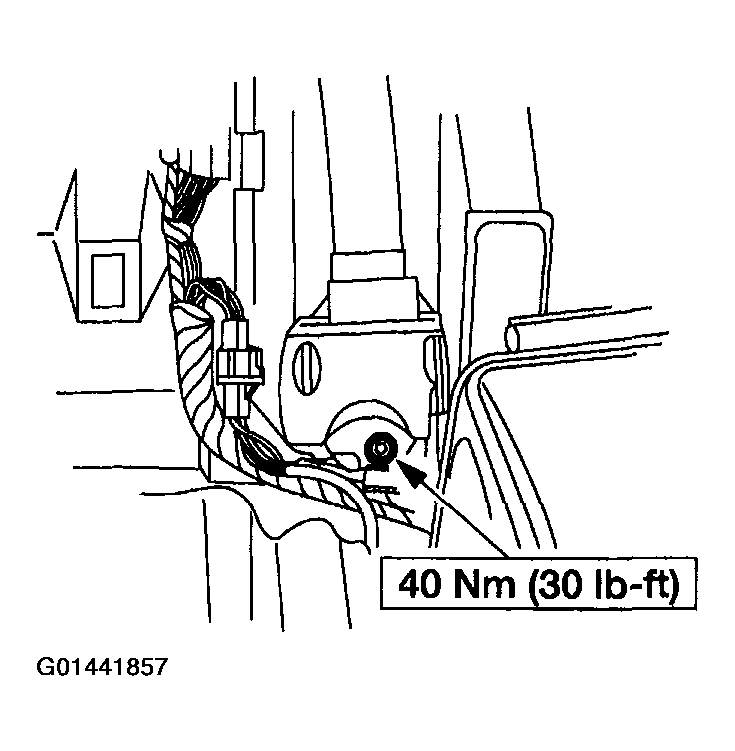

  Fig 2: Identifying Tighten Bolts To Specification
  Courtesy of FORD MOTOR CO.
