Pinpoint Test C: Single Power Window Is Inoperative (RH)

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

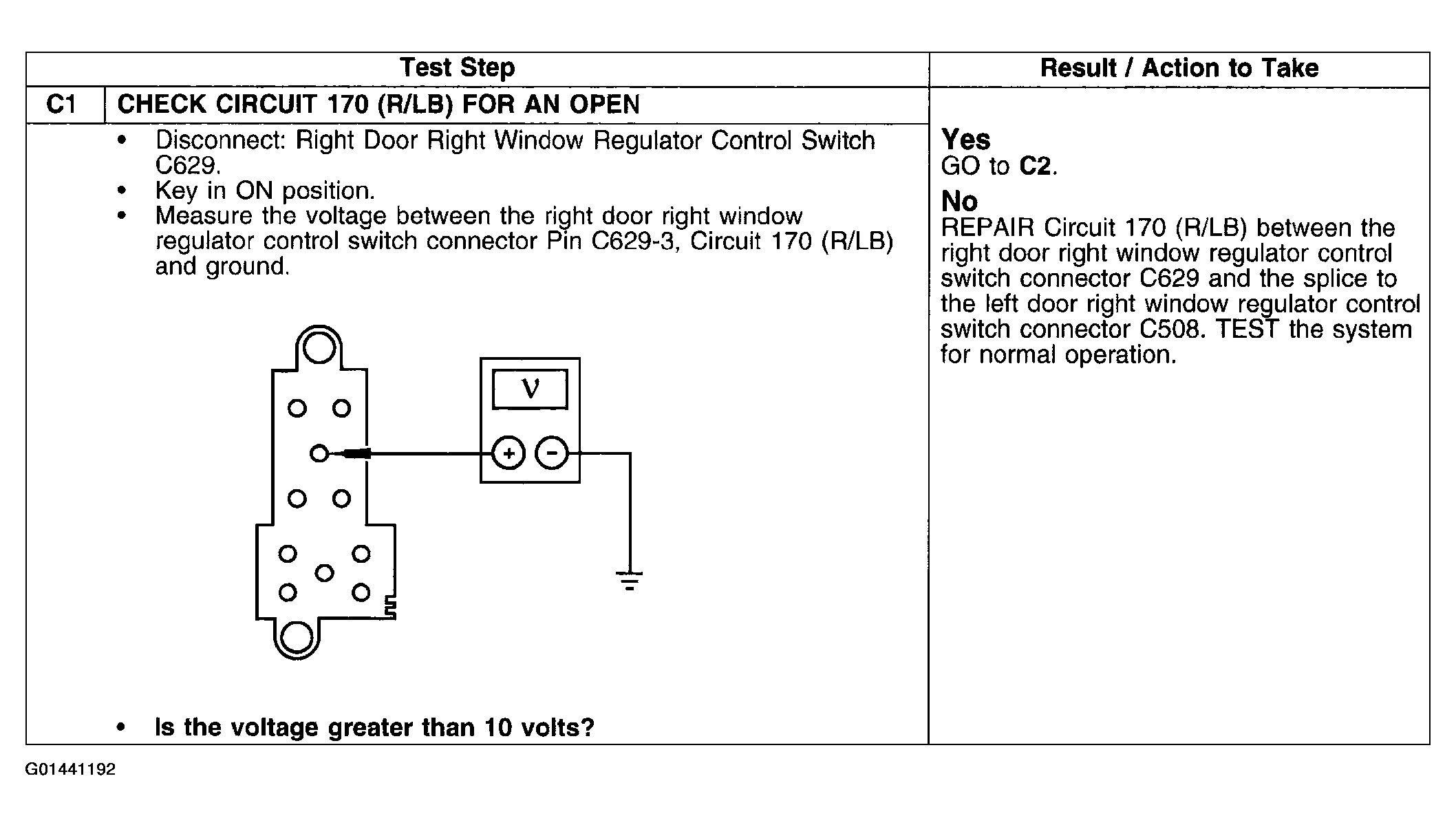

Fig 1: Pinpoint Test C: Single Power Window Is Inoperative (RH) (Step C1)
G01441192Courtesy of FORD MOTOR CO.

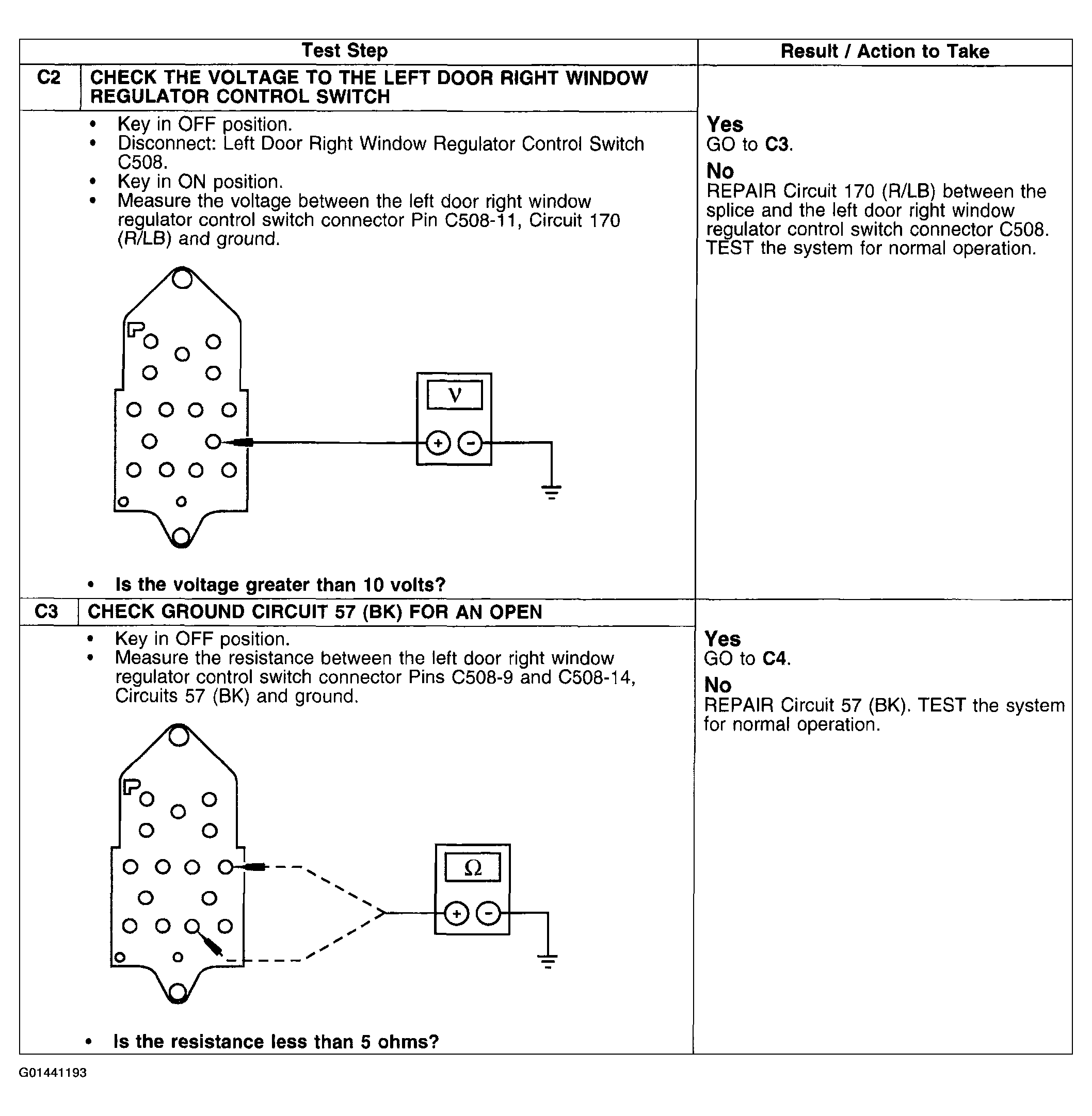

Fig 2: Pinpoint Test C: Single Power Window Is Inoperative (RH) (Step C2-C3)
G01441193Courtesy of FORD MOTOR CO.

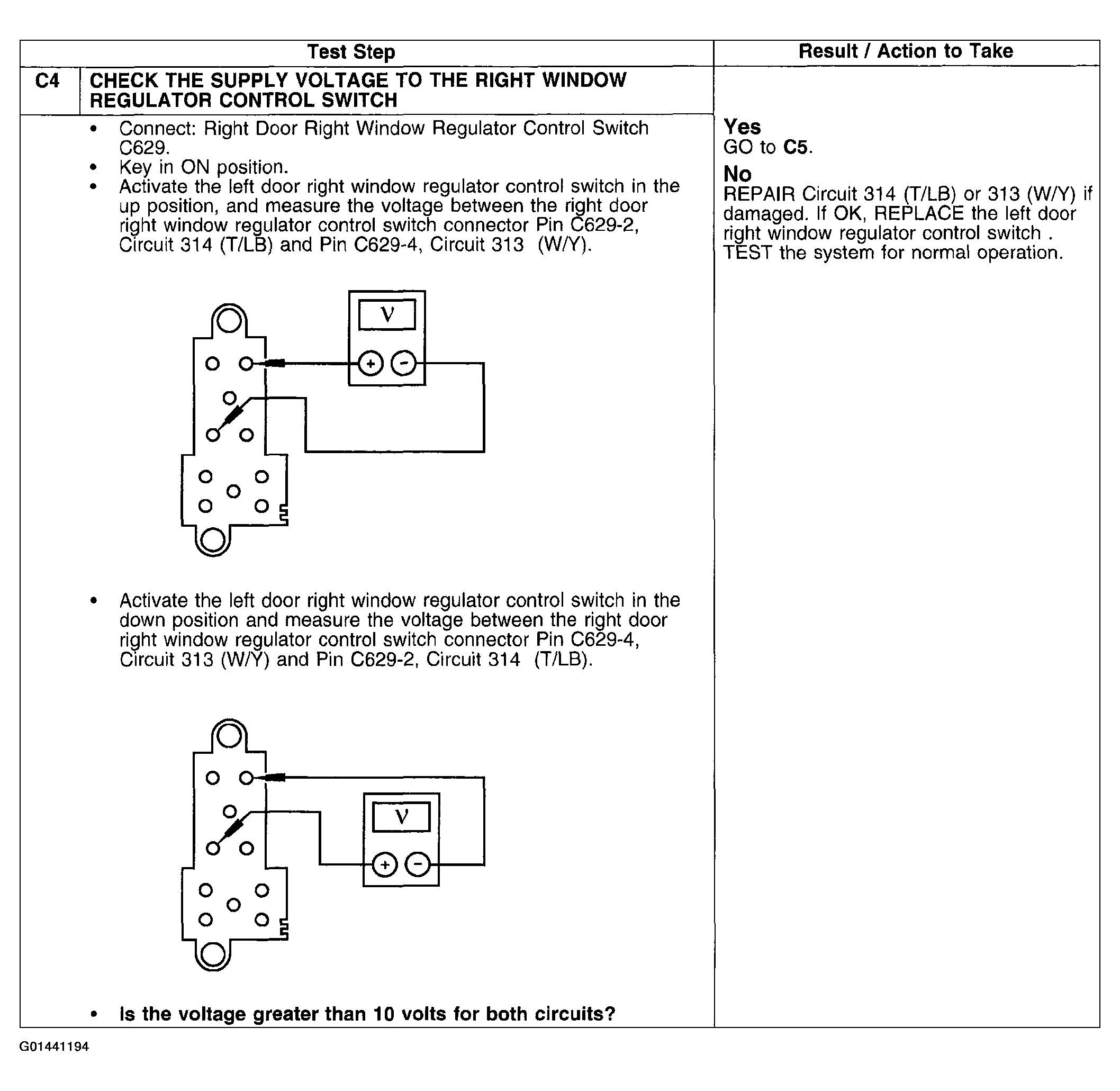

Fig 3: Pinpoint Test C: Single Power Window Is Inoperative (RH) (Step C4)
G01441194Courtesy of FORD MOTOR CO.

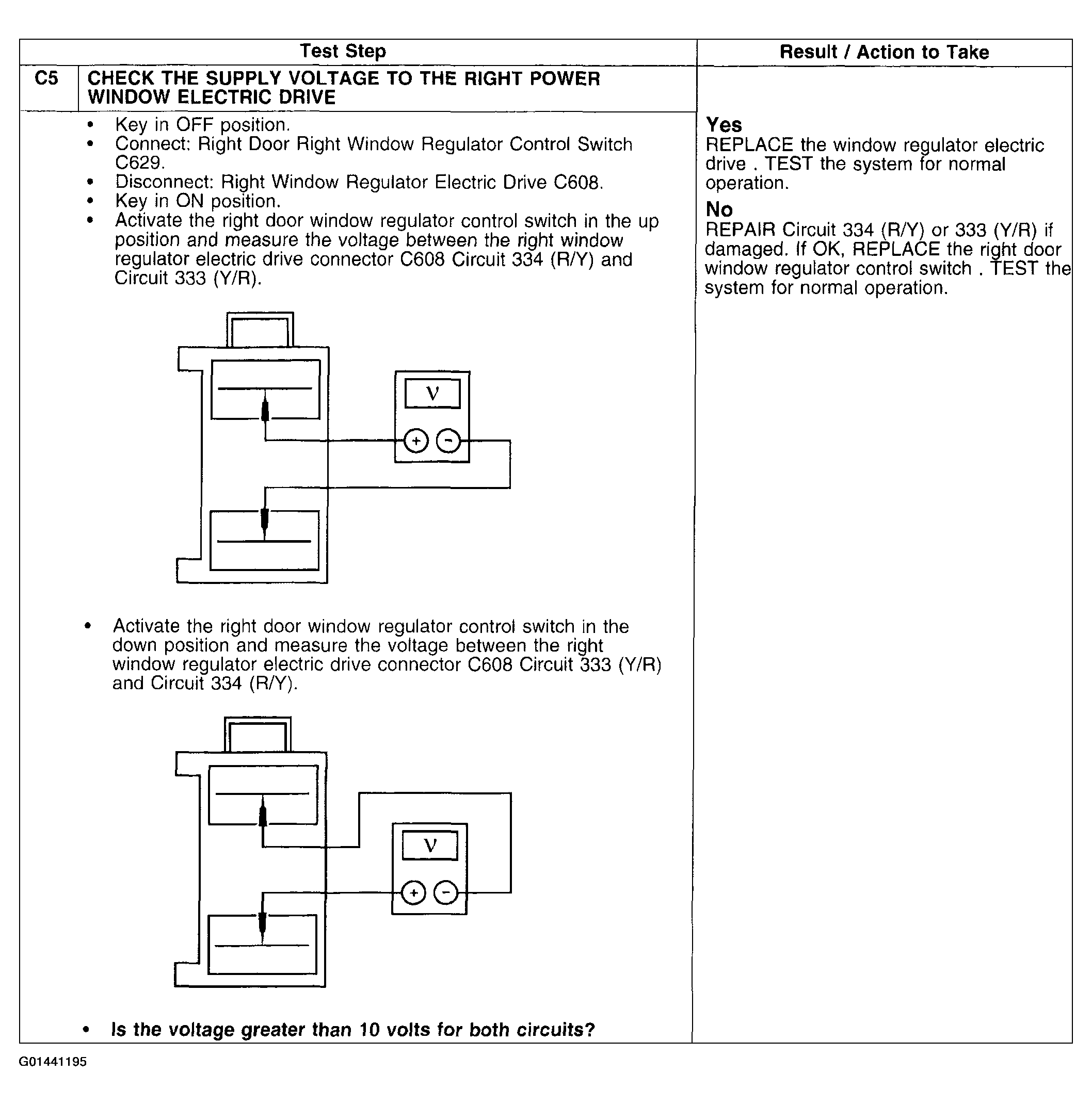

Fig 4: Pinpoint Test C: Single Power Window Is Inoperative (RH) (Step C5)
G01441195Courtesy of FORD MOTOR CO.
