Bulb - Instrument Cluster: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster; refer to INSTRUMENT CLUSTER-CONVENTIONAL .
  2. Remove the instrument cluster illumination bulbs.

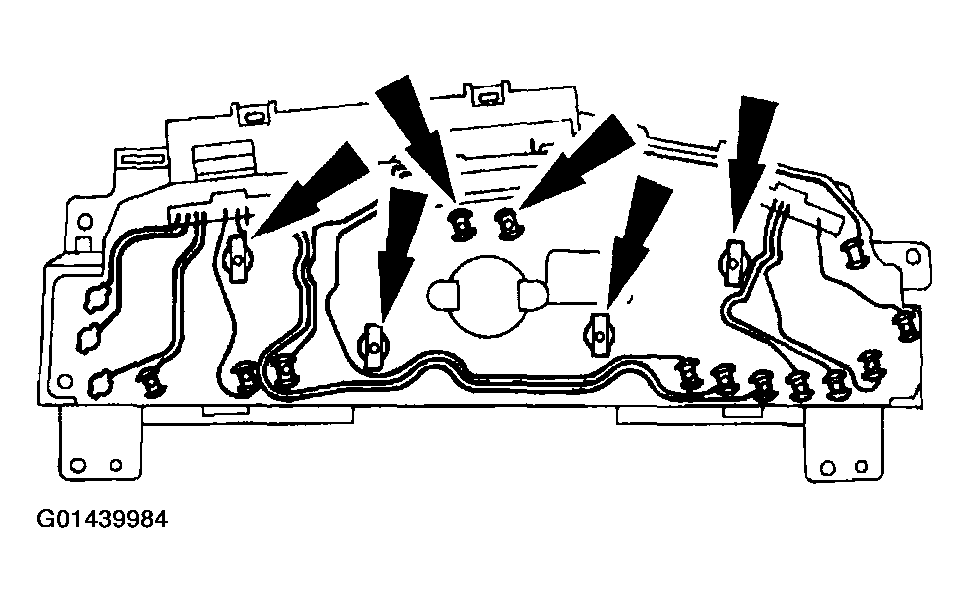

    Fig 1: Removing Instrument Cluster Illumination Bulbs
    G01439984Courtesy of FORD MOTOR CO.
