Filler Valve - Fuel: Removal

WARNING: This page is about a different car, the 2003 Ford Econoline, 2003 Ford E550 Super Duty, and 2003 Ford E450 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the pressure relief - fuel line venting procedure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION-NATURAL GAS .
  2. Remove the fuel filler valve retaining bolts.
    Fig 1: Removing Fuel Filler Valve Retaining Bolts
    G01540279Courtesy of FORD MOTOR CO.
  3. Remove the fuel filler valve.
    1. Disconnect the high-pressure fuel line from the fuel filler valve.
    2. Remove the fuel filler valve.

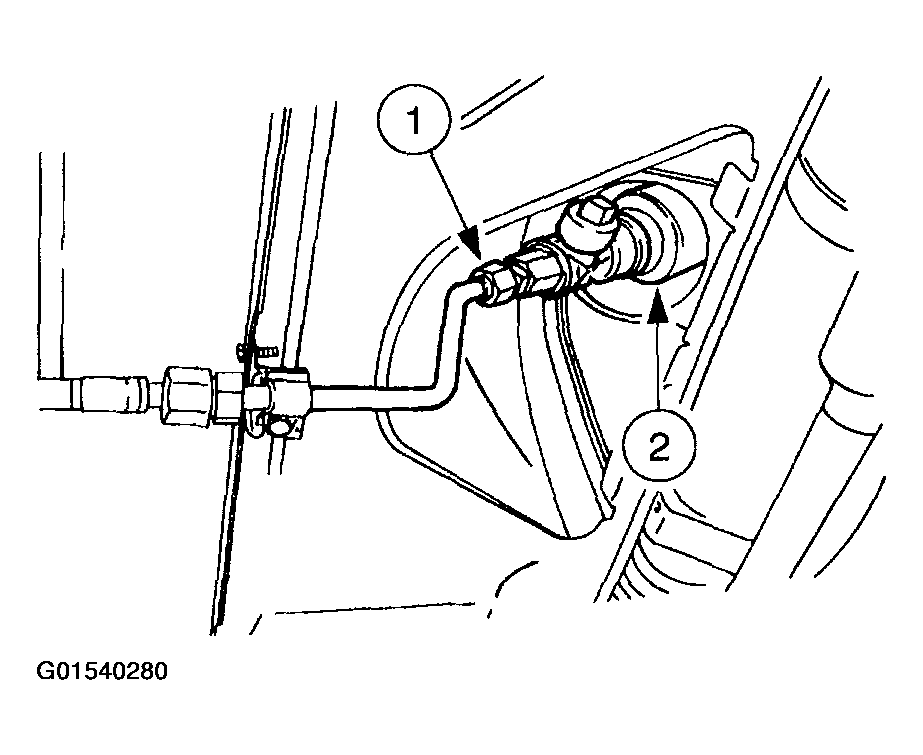

    Fig 2: Removing Fuel Filler Valve
    G01540280Courtesy of FORD MOTOR CO.
