Identifying Pinpoint Test F: Solenoid Mechanical Failure

WARNING: This page is about a different car, the 2003 Ford Econoline. However, it is still accessible from the selected car via links, so may be relevant.

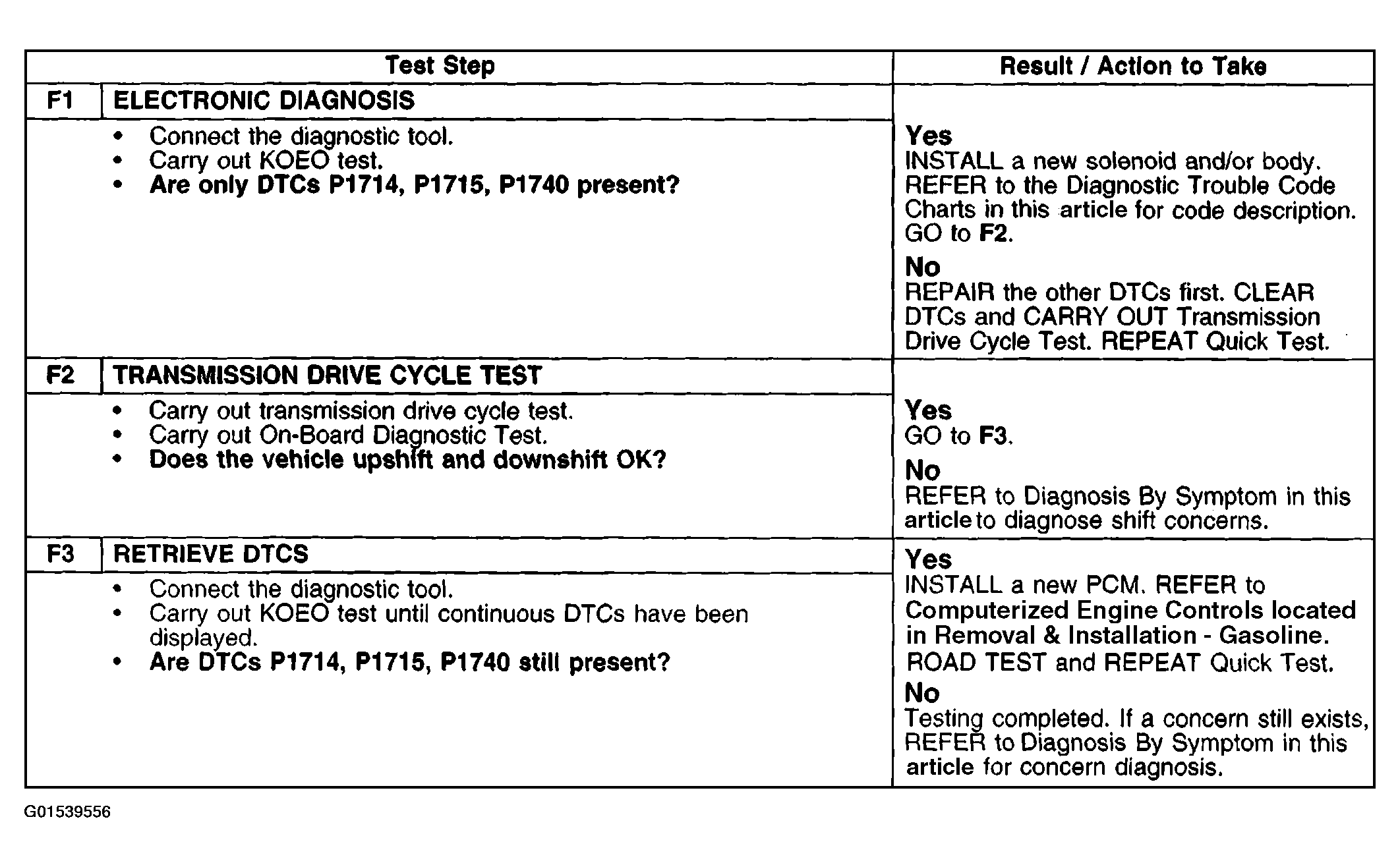

Fig 1: Identifying Pinpoint Test F: Solenoid Mechanical Failure (F1-F3)
G01539556Courtesy of FORD MOTOR CO.
