Belt Idler Pulley - 7.3L Diesel: Removal
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the drive belt (8620). For additional information, refer to BELT - 7.3L DIESEL .
- Remove the bolt and the drive belt tensioner (6B209) from the generator mounting bracket.
NOTE:

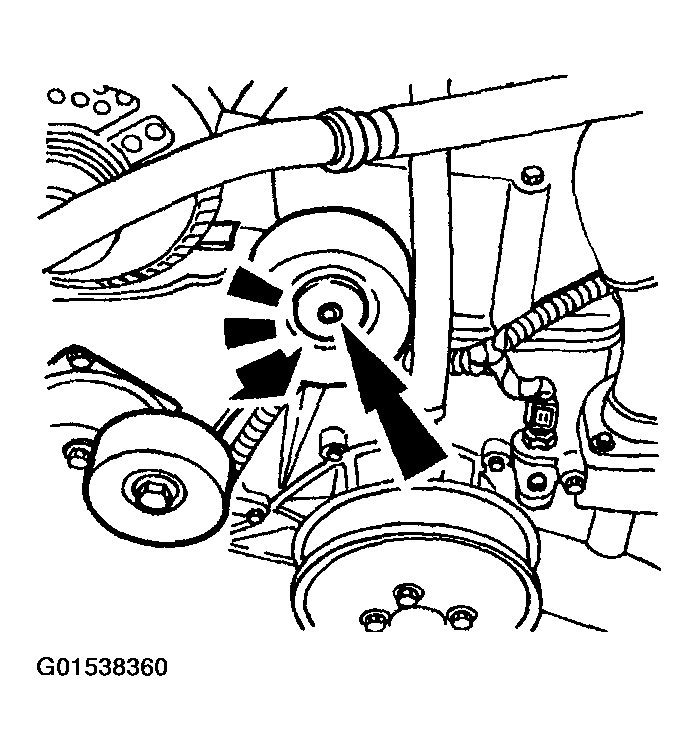

Both the upper and lower belt idler pulleys are removed and installed the same way. Only the upper belt idler pulley is shown.
