Crankshaft Rear Oil Seal: Installation

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: The crankshaft rear oil seal and wear sleeve are installed as an assembly.
  1. Apply RTV Silicone Sealant F5TZ-19G204-AB, or equivalent meeting Navistar specification NAVSTR SLR to the rear oil seal retaining ring and the crankshaft rear oil seal retaining bolts.
  2. Using the special tools, install the crankshaft rear oil seal.

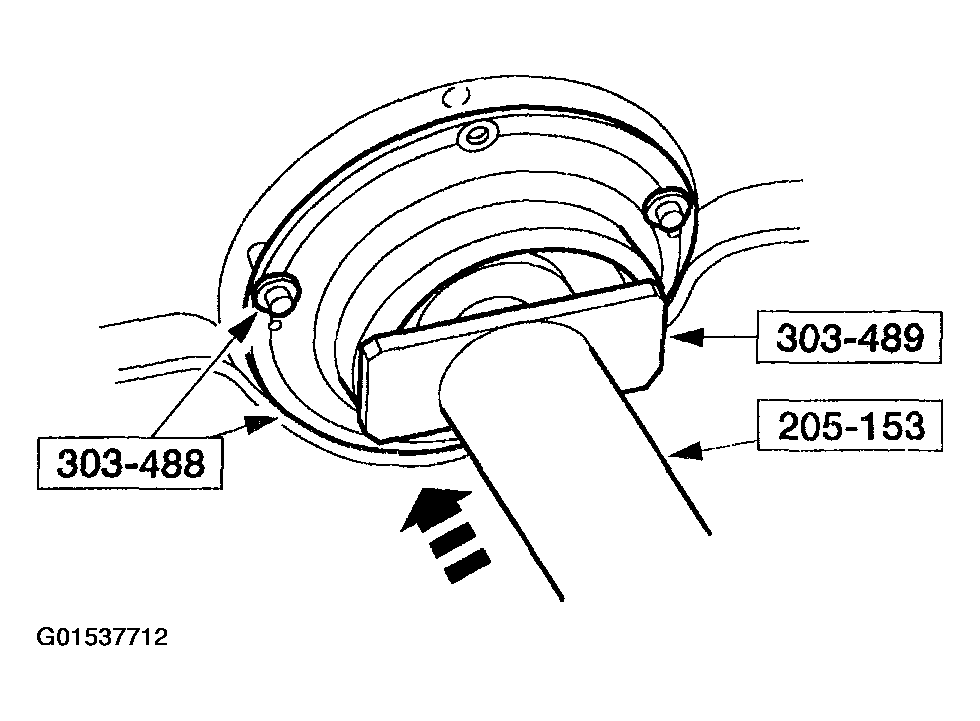

    Fig 1: Installing Crankshaft Rear Oil Seal
    G01537712Courtesy of FORD MOTOR CO.
  3. Install the crankshaft rear oil seal retaining bolts.

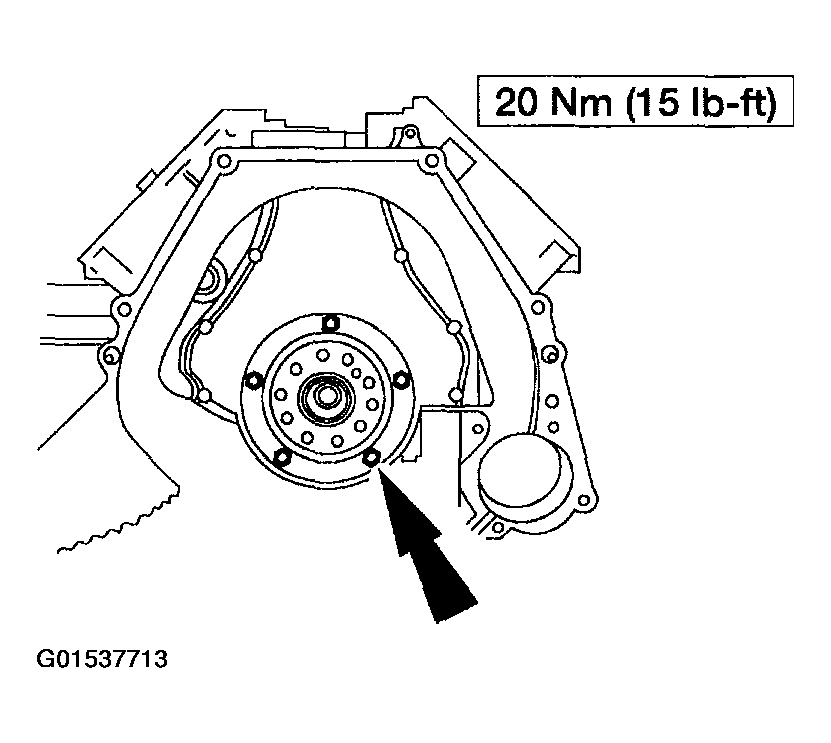

    Fig 2: Installing Crankshaft Rear Oil Seal Retaining Bolts
    G01537713Courtesy of FORD MOTOR CO.
  4. Install the flexplate, spacers and bolts.

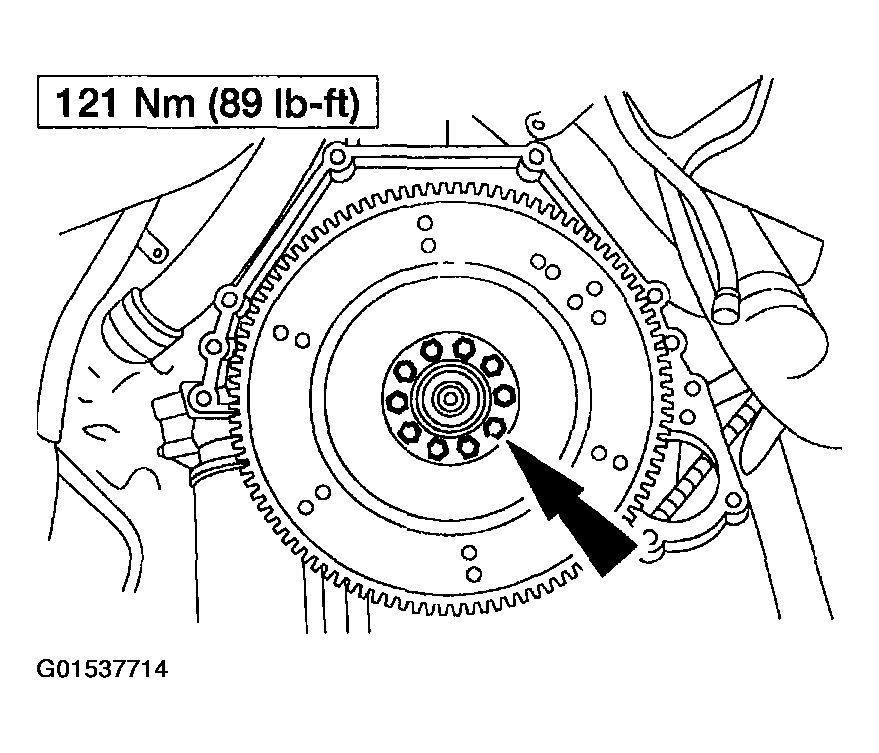

    Fig 3: Installing Flexplate And Spacers Bolts
    G01537714Courtesy of FORD MOTOR CO.
  5. Install the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION-4R70W .
