Crankshaft Rear Seal: Installation
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
- Clean and inspect the mating surface.

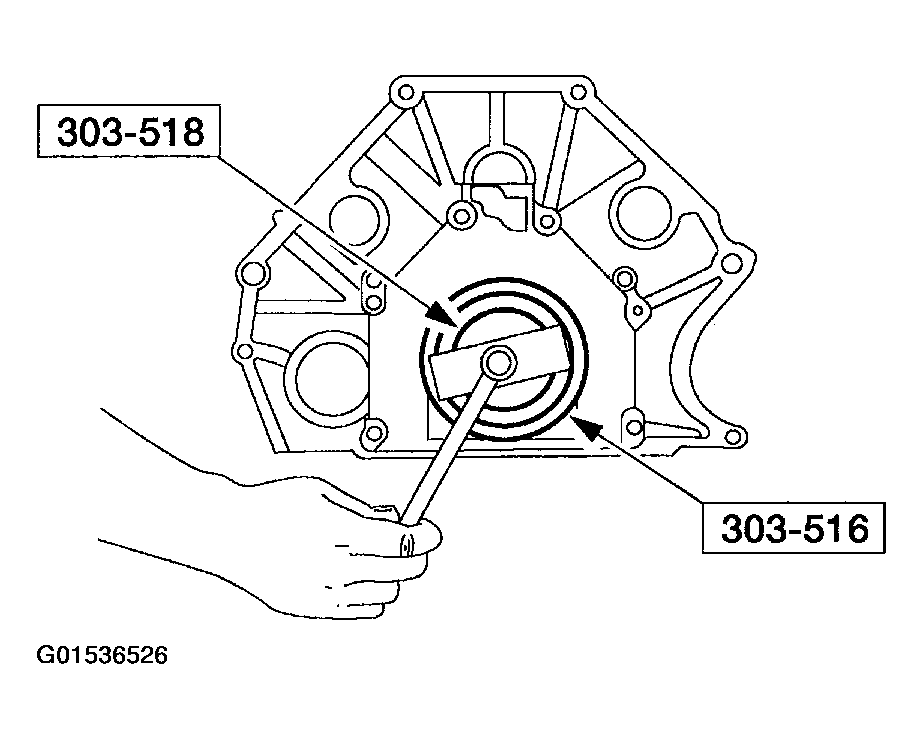

- Use the special tools to install the crankshaft rear seal.

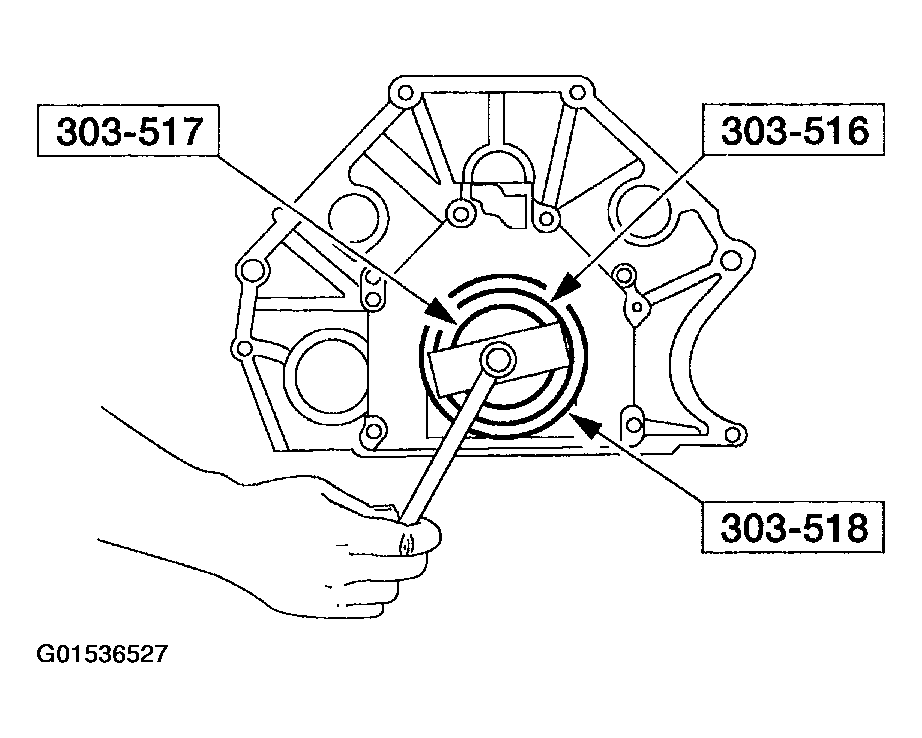

- Using the special tools, install the crankshaft rear oil slinger.
- Install the flexplate. For additional information, refer to FLEXPLATE .
CAUTION:
Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the aluminum retainer plate. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
NOTE:
Lubricate the inner lip of the crankshaft rear seal with clean engine oil.
