Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY .
  2. Using the special tool, remove the crankshaft front oil seal.

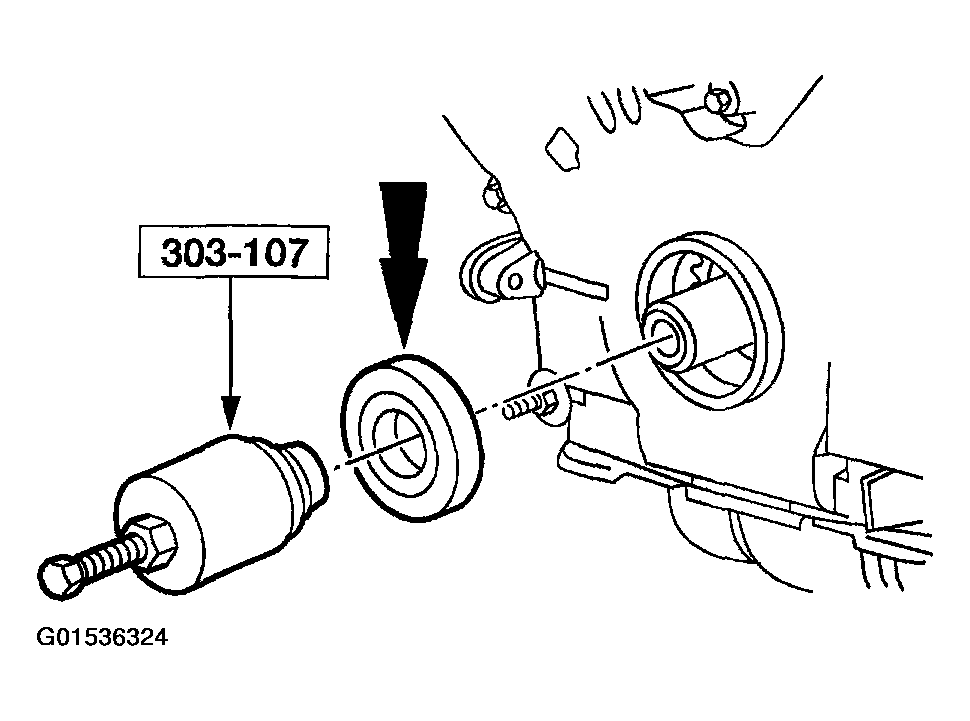

    Fig 1: Removing Crankshaft Front Oil Seal
    G01536324Courtesy of FORD MOTOR CO.
