Camshaft Roller Follower: Removal

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the valve cover (6582). For additional information, refer to VALVE COVER LH , VALVE COVER RH - 4.6L  or VALVE COVER RH - 5.4L .
  2. Position the piston (6108) of the cylinder being repaired at the bottom of the stroke.

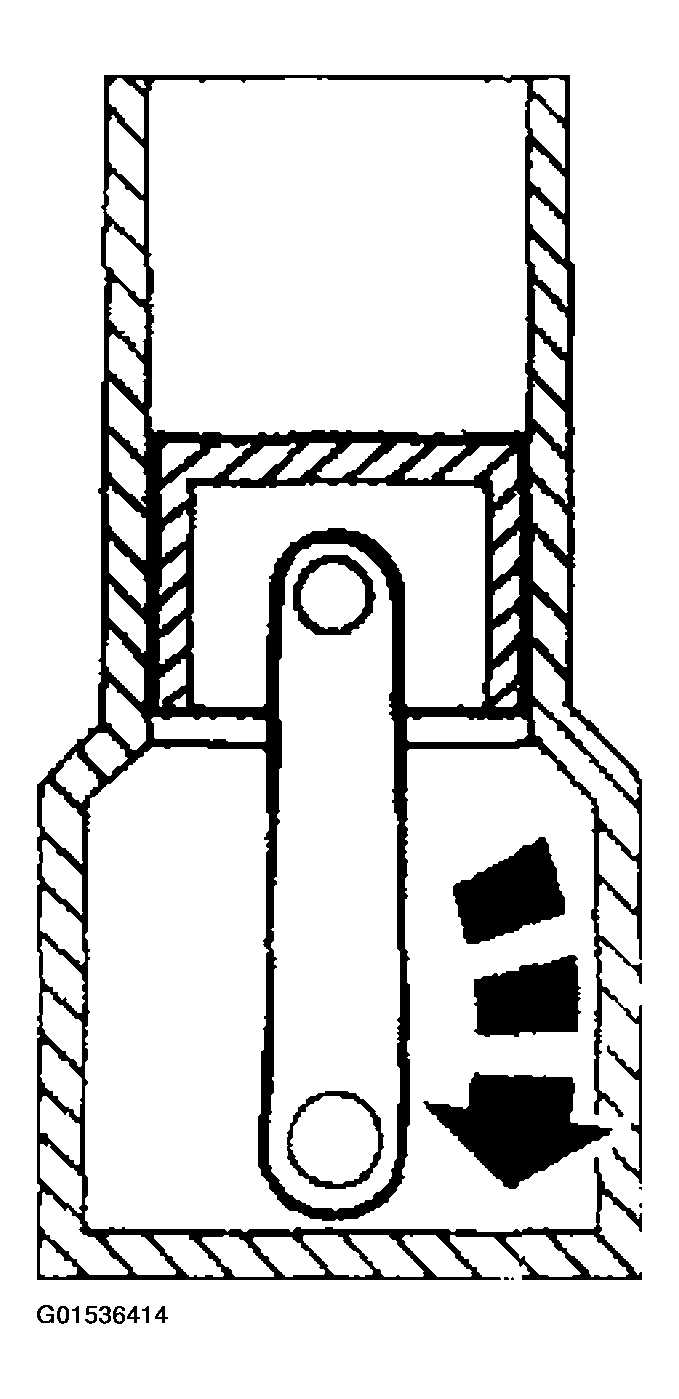

    Fig 1: Identifying Piston At Bottom Of Stroke
    G01536414Courtesy of FORD MOTOR CO.
  3. Install the special tool between the valve spring coils to prevent valve stem seal damage.
    Fig 2: Installing Special Tool Between Valve Spring Coils
    G01536415Courtesy of FORD MOTOR CO.
  4. Use the special tool to compress the valve springs (6513) and remove the camshaft roller followers.

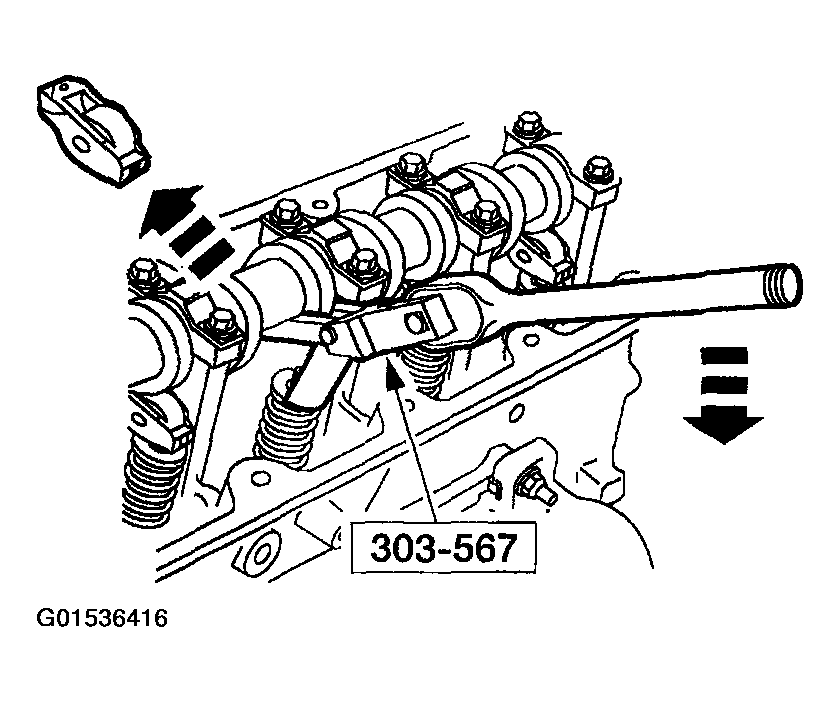

    Fig 3: Compressing Valve Springs
    G01536416Courtesy of FORD MOTOR CO.
